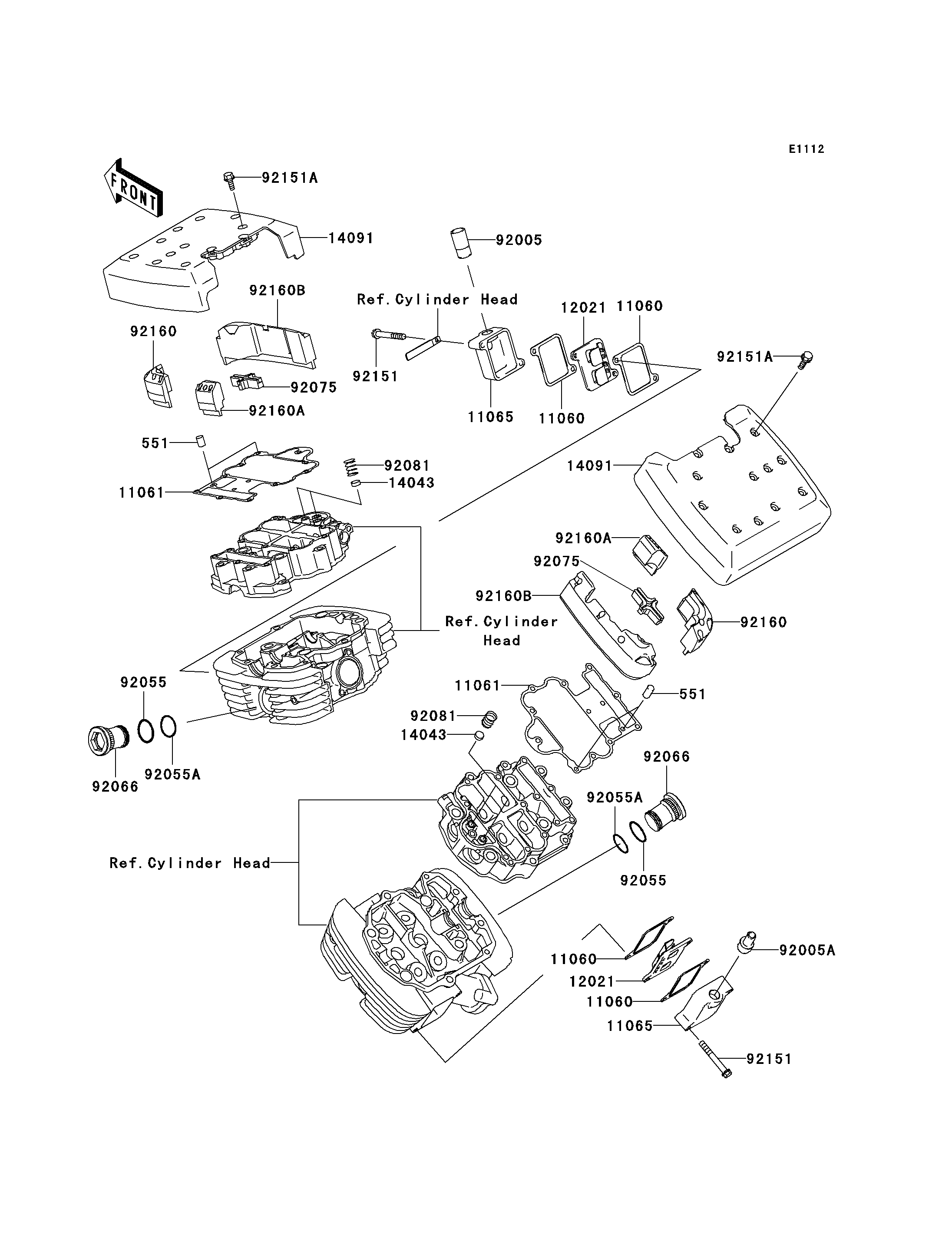

2006 Vulcan 1500 Classic - Cylinder Head Cover

DOWNLOAD PDF
SELECT A NEW PART
551
551
11060
11060
11060
11060
11061
11061
11065
11065
12021
12021
14043
14043
14091
14091
92005
92005A
92055
92055
92055A
92055A
92066
92066
92075
92075
92081
92081
92151
92151
92151A
92151A
92160
92160
92160A
92160A
92160B
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL,6X12 551 551A0612 4
GASKET,REED VALVE CAP 11060 11060-1733 4
GASKET,ROCKER CASE COVER 11061 11061-1175 2
CAP,REED VALVE 11065 11065-0031 2
VALVE-ASSY-REED 12021 12021-1108 2
FILTER,OIL 14043 14043-1056 4
COVER,ROCKER CASE 14091 14091-1167 2
FITTING,REED VALVE 92005 92005-1006 1
FITTING 92005A 92005-1363 1
RING-O,31.7X2.4 92055 92055-049 2
RING-O,27.7X1.9 92055A 92055-1272 2
PLUG,SLEEVE 92066 92066-1445 2
DAMPER 92075 92075-1998 2
SPRING,OIL FILTER 92081 92081-1776 4
BOLT,6X45 92151 92151-1059 4
BOLT,FLANGED-SMALL,6X20 92151A 92151-1252 24
DAMPER 92160 92160-1698 2
DAMPER 92160A 92160-1699 2
DAMPER 92160B 92160-1711 2
