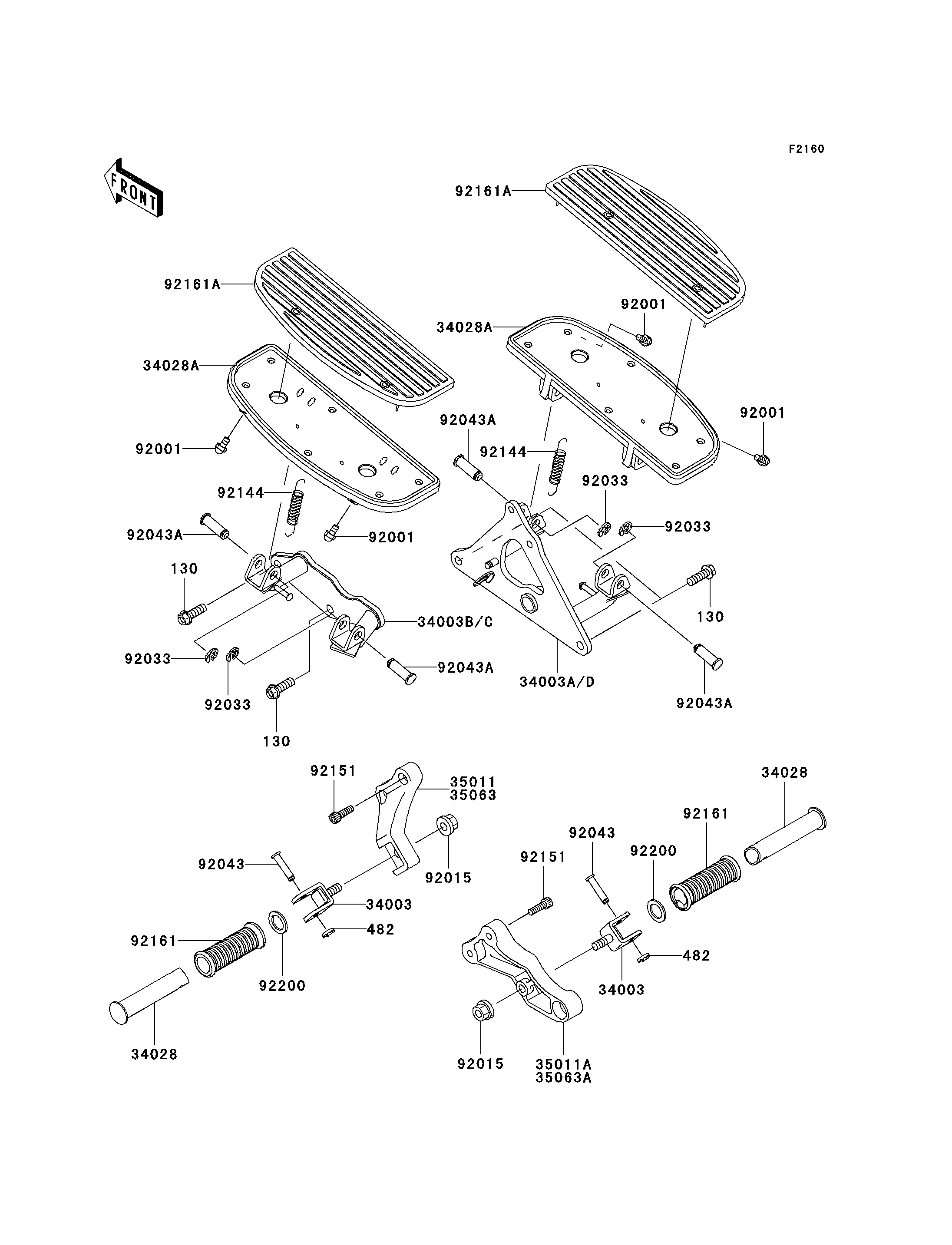

Parts Diagrams |
130
130
130
482
482
34003
34003
34003C
34003D
34028
34028
34028A
34028A
35011
35011A
92001
92001
92001
92001
92015
92015
92033
92033
92033
92033
92043
92043
92043A
92043A
92043A
92043A
92144
92144
92151
92151
92161
92161
92161A
92161A
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,10X30 | 130 | 130J1030 | 4 | ||
CIRCLIP-TYPE-E | 482 | 482L7000 | 2 | ||
HOLDER-STEP,RR | 34003 | 34003-0015 | 2 | ||
HOLDER-STEP,FR,LH | 34003C | 34003-1501 | 1 | ||
HOLDER-STEP,FR,RH | 34003D | 34003-1502 | 1 | ||
STEP,RR | 34028 | 34028-0017 | 2 | ||
STEP,FR | 34028A | 34028-1497 | 2 | ||
STAY,REAR STEP,LH | 35011 | 35011-1770 | 1 | ||
STAY,REAR STEP,RH | 35011A | 35011-1922 | 1 | ||
BOLT,BANK SENSOR | 92001 | 92001-1905 | 4 | ||
NUT,FLANGED,10MM | 92015 | 92015-1428 | 2 | ||
RING-SNAP,10MM | 92033 | 92033-1166 | 4 | ||
PIN,8X36.5 | 92043 | 92043-1339 | 2 | ||
PIN,12X37 | 92043A | 92043-1358 | 4 | ||
SPRING | 92144 | 92144-1266 | 2 | ||
BOLT,SOCKET,8X25 | 92151 | 92151-1525 | 4 | ||
DAMPER,STEP | 92161 | 92161-0232 | 2 | ||
DAMPER,FRONT STEP | 92161A | 92161-1154 | 2 | ||
WASHER,22.5X33X2.3 | 92200 | 92200-1482 | 2 |
