35004
35004
35022
35022
120
120
130
130
130A
130A
92071
92071
92071A
92071A
92071A
92071A

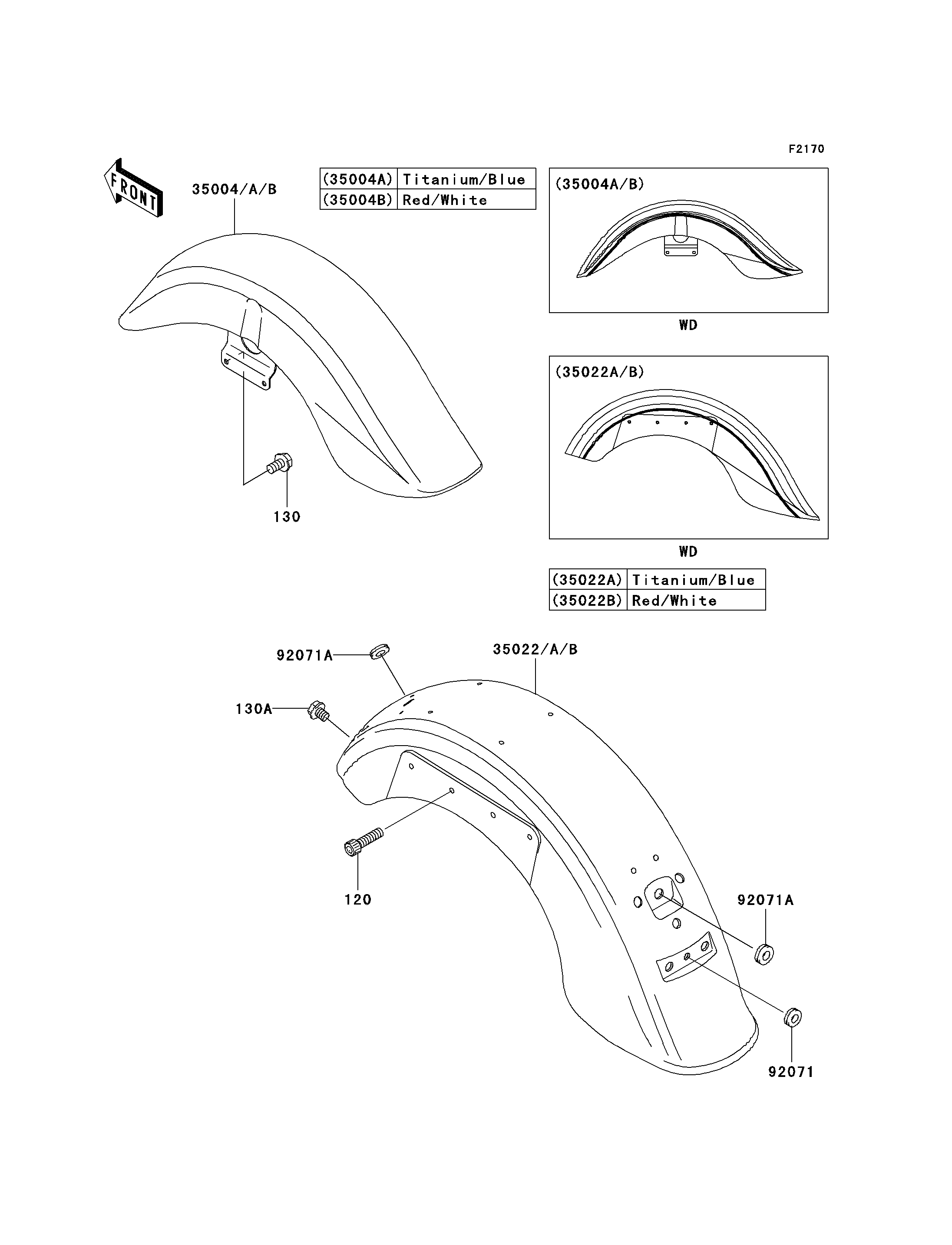

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,EBONY 35004 35004-1419-H8 1
FENDER-COMP-REAR,EBONY 35022 35022-1315-H8 1
BOLT-SOCKET,8X30 120 120S0830 2
BOLT-FLANGED,8X14 130 130J0814 4
BOLT-FLANGED,8X16 130A 130J0816 2
GROMMET,10MM 92071 92071-019 1
GROMMET,13MM 92071A 92071-099 3
