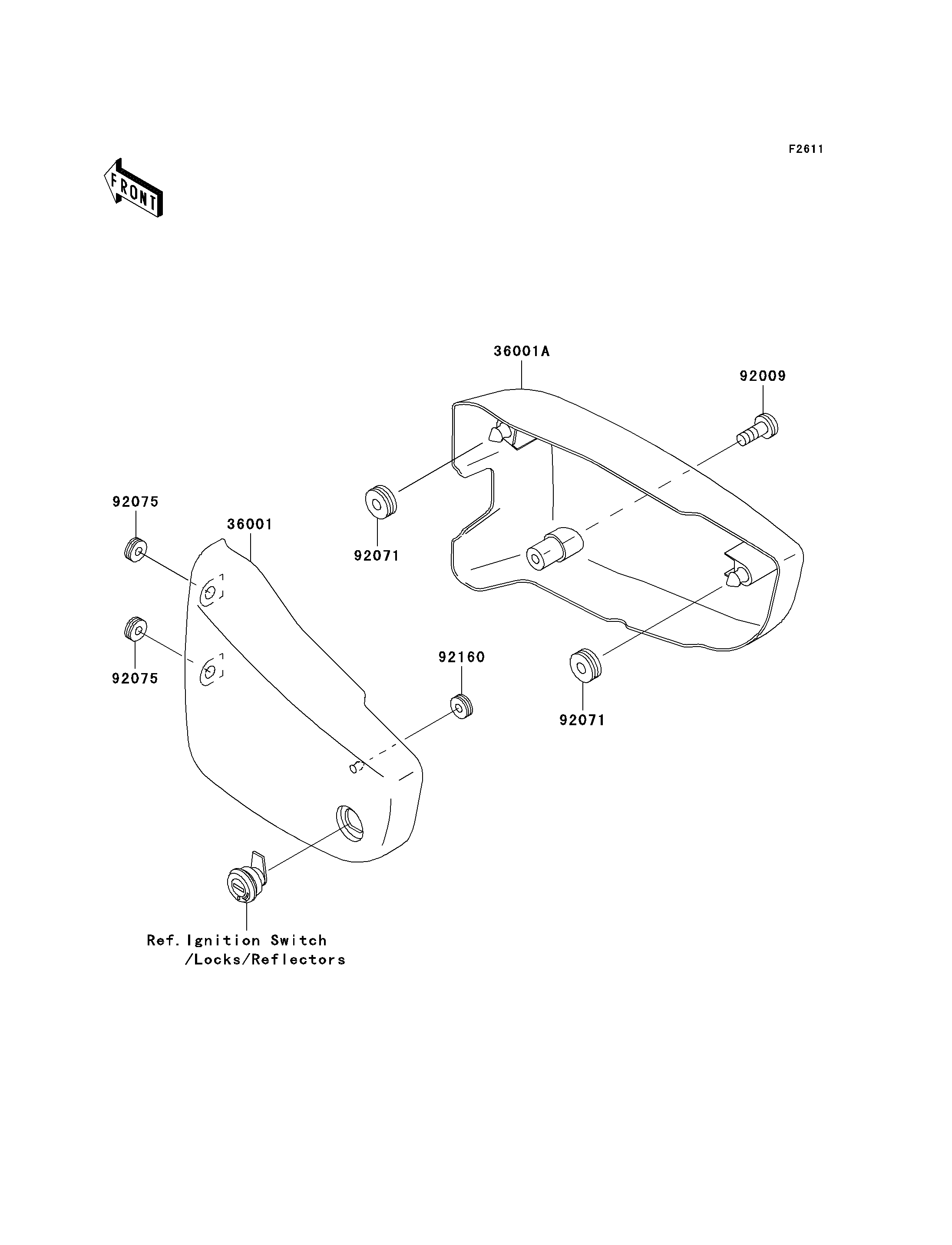

36001
36001A
92009
92071
92071
92075
92075
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001 36001-1645-H8 1
COVER-SIDE,RH,EBONY 36001A 36001-1646-H8 1
SCREW,6X35 92009 92009-1874 1
GROMMET 92071 92071-1131 2
DAMPER 92075 92075-1629 2
DAMPER 92160 92160-1944 1
