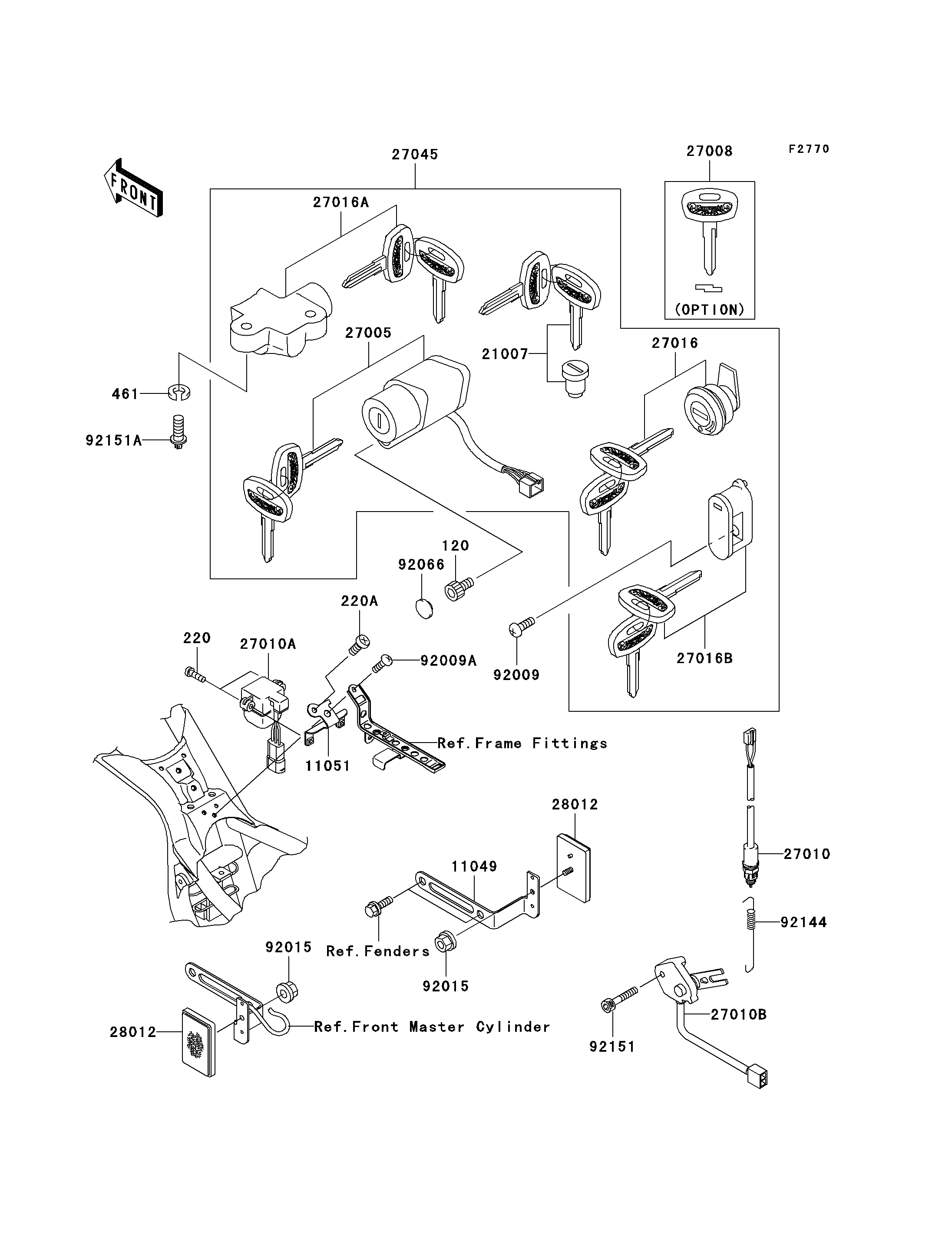

2006 Vulcan 1500 Classic - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
220
220A
461
11049
11051
21007
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27045
28012
28012
92009
92009A
92015
92015
92066
92144
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120P0512 1
SCREW-PAN-CROS,4X20 220 220C0420 2
SCREW-PAN-CROS,6X12 220A 220C0612 1
WASHER-SPRING 461 461L0600 2
BRACKET 11049 11049-1820 1
BRACKET,DOWN SENSOR 11051 11051-1763 1
ROTOR,LOCK,TANK CAP 21007 21007-5047 1
SWITCH-ASSY-IGNITION 27005 27005-1256 1
KEY-LOCK,BLANK 27008 27008-1208 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1412 1
SWITCH,DOWN SENSOR 27010A 27010-1416 1
SWITCH,SIDE STAND 27010B 27010-1464 1
LOCK-ASSY,LID 27016 27016-5267 1
LOCK-ASSY,STEERING 27016A 27016-5269 1
LOCK-ASSY,HELMET 27016B 27016-5316 2
SWITCH-ASSY 27045 27045-5245 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
SCREW,5X12 92009 92009-1296 2
SCREW,6X16 92009A 92009-1621 1
NUT,FLANGED,5MM 92015 92015-1656 2
PLUG 92066 92066-1435 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X35 92151 92151-1390 1
BOLT,TORX,6X22 92151A 92151-1946 2
