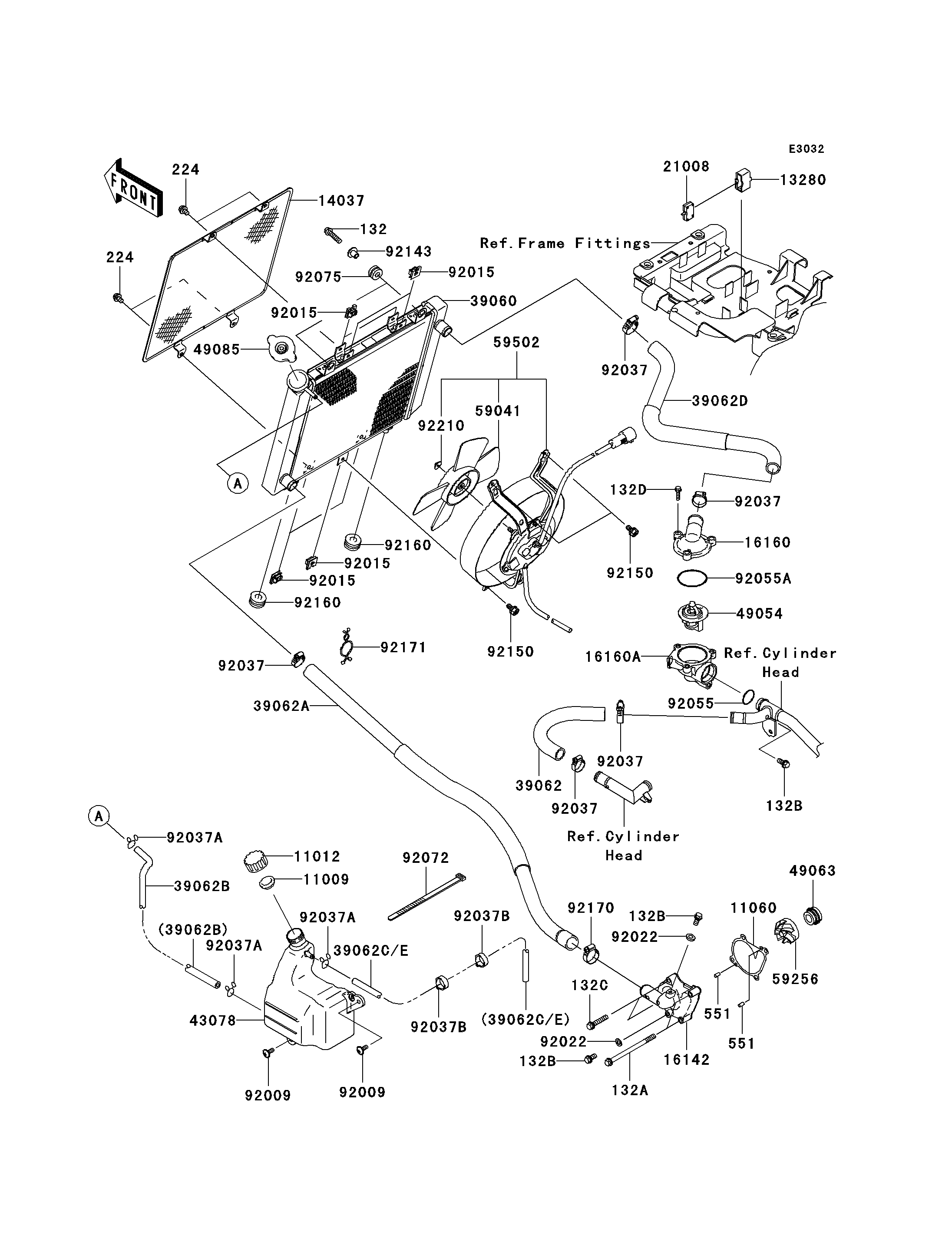

Parts Diagrams |
132
132
11009
11009
11012
11012
11060
11060
13280
13280
14037
14037
16142
16142
16160
16160
16160A
16160A
21008
21008
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
43078
43078
49054
49054
49063
49063
49085
49085
59041
59041
59256
59256
59502
59502
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92055
92055
92055A
92055A
92072
92072
92075
92075
92143
92143
92150
92150
92150
92150
92160
92160
92160
92160
92170
92170
92171
92171
92210
92210
132A
132A
132B
132B
132B
132B
132B
132B
132C
132C
132D
132D
224
224
224
224
551
551
551
551
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X25 | 132 | 132BA0625 | 2 | ||
GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
CAP | 11012 | 11012-1084 | 1 | ||
GASKET,WATER PUMP | 11060 | 11060-1964 | 1 | ||
HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
SCREEN | 14037 | 14037-0045 | 1 | ||
COVER-PUMP,WATER | 16142 | 16142-0002 | 1 | ||
BODY,THERMOSTAT,UPP | 16160 | 16160-0046 | 1 | ||
BODY,THERMOSTAT,LWR | 16160A | 16160-0127 | 1 | ||
BREAKER,FAN MOTOR | 21008 | 21008-0001 | 1 | ||
RADIATOR | 39060 | 39060-0040 | 1 | ||
HOSE-COOLING,FR HEAD-THERMO | 39062 | 39062-0178 | 1 | ||
HOSE-COOLING,RAD-WATER PUMP | 39062A | 39062-0180 | 1 | ||
HOSE-COOLING | 39062B | 39062-0226 | 1 | ||
HOSE-COOLING | 39062C | 39062-0227 | 1 | ||
HOSE-COOLING,THERMO-RADIATOR | 39062D | 39062-0241 | 1 | ||
RESERVOIR | 43078 | 43078-0024 | 1 | ||
THERMOSTAT | 49054 | 49054-1055 | 1 | ||
SEAL-MECHANICAL,WATER | 49063 | 49063-1055 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
FAN | 59041 | 59041-0002 | 1 | ||
IMPELLER | 59256 | 59256-1069 | 1 | ||
FAN-ASSY | 59502 | 59502-0011 | 1 | ||
SCREW,6X16 | 92009 | 92009-1694 | 2 | ||
NUT | 92015 | 92015-1487 | 7 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
CLAMP,COOLING HOSE | 92037 | 92037-1589 | 5 | ||
CLAMP | 92037A | 92037-1712 | 3 | ||
CLAMP,HOSE | 92037B | 92037-1827 | 2 | ||
RING-O,22.1X2.4 | 92055 | 92055-1081 | 1 | ||
RING-O,44.7X2.4 | 92055A | 92055-1279 | 1 | ||
BAND,L=123 | 92072 | 92072-030 | 1 | ||
DAMPER | 92075 | 92075-209 | 2 | ||
COLLAR | 92143 | 92143-1353 | 2 | ||
BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
DAMPER | 92160 | 92160-1007 | 2 | ||
CLAMP | 92170 | 92170-1497 | 1 | ||
CLAMP | 92171 | 92171-1736 | 1 | ||
NUT | 92210 | 92210-0335 | 1 | ||
BOLT-FLANGED-SMALL,6X90 | 132A | 132BB0690 | 2 | ||
BOLT-FLANGED-SMALL,6X12 | 132B | 132BD0612 | 3 | ||
BOLT-FLANGED-SMALL,6X30 | 132C | 132BD0630 | 2 | ||
BOLT-FLANGED-SMALL,6X20 | 132D | 132E0620 | 3 | ||
SCREW-PAN-WP-CROS,6X10 | 224 | 224AB0610 | 4 | ||
PIN-DOWEL,4X8 | 551 | 551A0408 | 2 |
BOLT-FLANGED-SMALL,6X25 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,RESERVOIR TANK CAP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,WATER PUMP | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,BREAKER | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP,WATER | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY,THERMOSTAT,UPP | |
REF # | 16160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY,THERMOSTAT,LWR | |
REF # | 16160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREAKER,FAN MOTOR | |
REF # | 21008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR | |
REF # | 39060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,FR HEAD-THERMO | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RAD-WATER PUMP | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING | |
REF # | 39062C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,THERMO-RADIATOR | |
REF # | 39062D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
THERMOSTAT | |
REF # | 49054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-MECHANICAL,WATER | |
REF # | 49063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FAN | |
REF # | 59041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FAN-ASSY | |
REF # | 59502 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,HOSE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,22.1X2.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,44.7X2.4 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=123 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X90 | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X12 | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X30 | |
REF # | 132C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X20 | |
REF # | 132D |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS,6X10 | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-DOWEL,4X8 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
