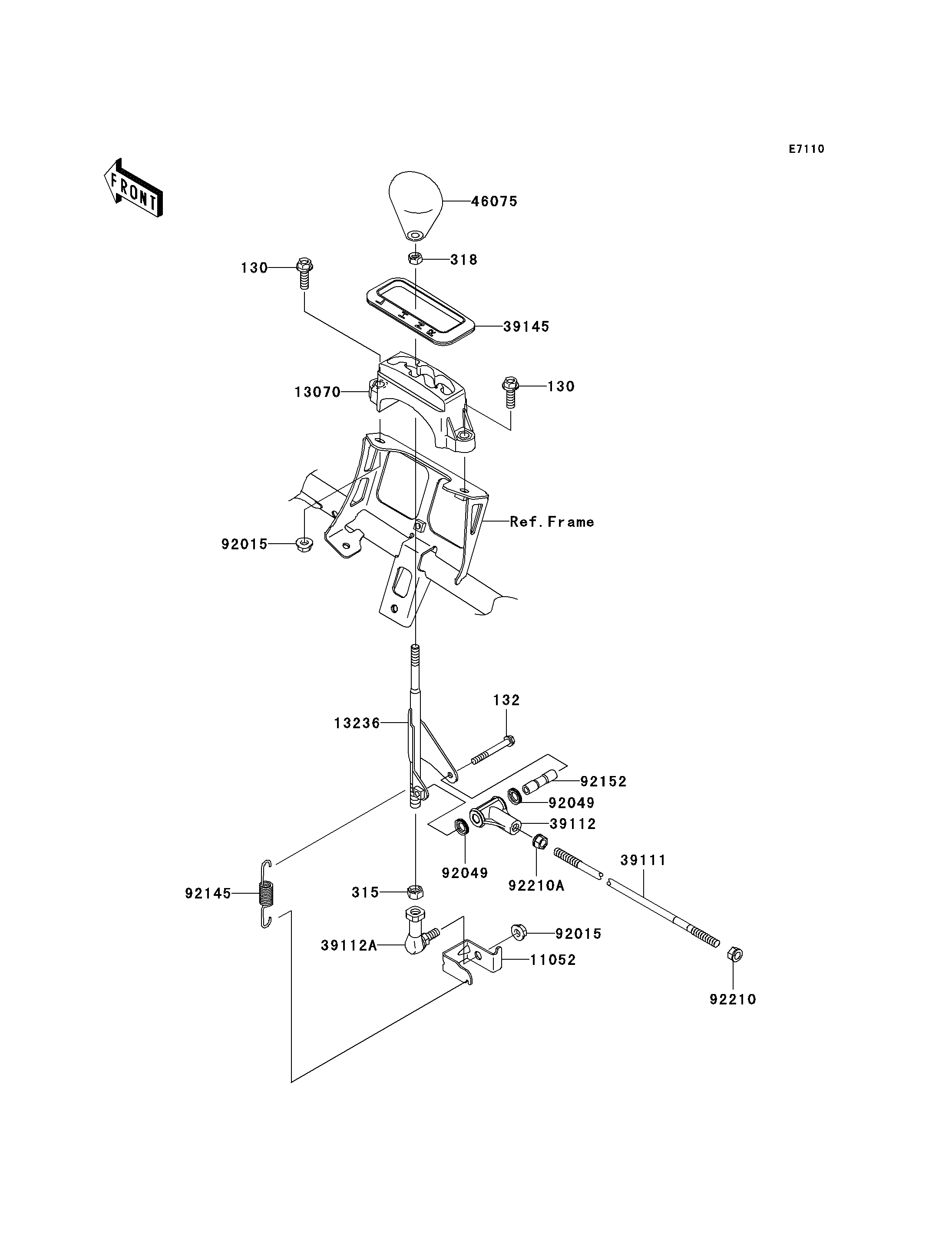

2008 Brute Force® 750 4x4i - Control

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
315
318
11052
13070
13236
39111
39112
39112A
39145
46075
92015
92015
92049
92049
92145
92152
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130CD0825 2
BOLT-FLANGED-SMALL,6X50 132 132BB0650 1
NUT-HEX-FINE,10MM 315 315AA1000 1
NUT-HEX-SMALL,8MM 318 318BA0800 1
BRACKET,CONTROL 11052 11052-1476 1
GUIDE,CONTROL SHAFT 13070 13070-1396 1
LEVER-COMP,SHIFT 13236 13236-0034 1
ROD-TIE,SHIFT 39111 39111-1174 1
RODEND-TIE 39112 39112-1079 1
RODEND-TIE,CONTROL PIVOT 39112A 39112-1084 1
TRIM-SEAL,CONTROL GUIDE 39145 39145-1121 1
GRIP,SHIFT 46075 46075-0046 1
NUT,8MM 92015 92015-1432 2
SEAL-OIL 92049 92049-1458 2
SPRING 92145 92145-0130 1
COLLAR,RODEND-TIE 92152 92152-1222 1
NUT,8MM 92210 92210-1242 1
NUT,LH,THREAD 8MM 92210A 92210-1284 1
