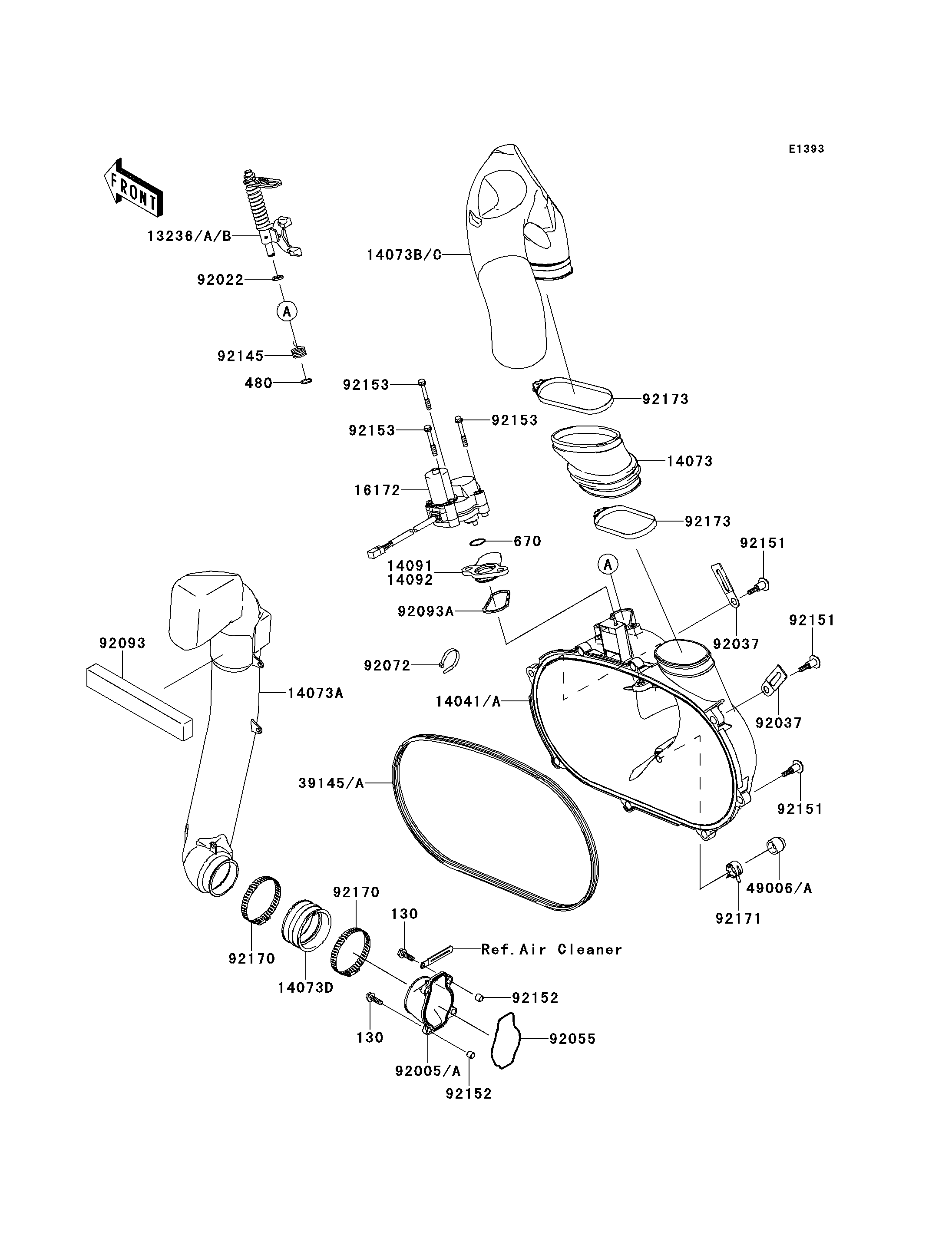

2014 BRUTE FORCE® 750 4x4i EPS - Converter Cover
130
130
480
670
13236
13236A
13236B
14041
14073
14073A
14073C
14073D
14092
16172
39145
49006
92005
92022
92037
92037
92055
92072
92093
92093A
92145
92151
92151
92151
92152
92152
92153
92153
92153
92170
92170
92171
92173
92173
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130CD0620 | 4 | ||
CIRCLIP-TYPE-C,10MM | 480 | 480J1000 | 1 | ||
O RING | 670 | 670D3022 | 1 | ||
LEVER-COMP,YELLOW | 13236 | 13236-0046 | AR | ||
LEVER-COMP,GREEN | 13236A | 13236-0047 | AR | ||
LEVER-COMP,PAINT LESS | 13236B | 13236-0048 | 1 | ||
COVER-COMP | 14041 | 14041-0556 | 1 | ||
DUCT,EXHAUST JOINT | 14073 | 14073-0028 | 1 | ||
DUCT,INTAKE | 14073A | 14073-0298 | 1 | ||
DUCT,EXHAUST | 14073C | 14073-0734 | 1 | ||
DUCT,JOINT | 14073D | 14073-1775 | 1 | ||
COVER | 14092 | 14092-0780 | 1 | ||
ACTUATOR | 16172 | 16172-0018 | 1 | ||
TRIM-SEAL | 39145 | 39145-0702 | 1 | ||
BOOT,DRAIN | 49006 | 49006-0560 | 1 | ||
FITTING | 92005 | 92005-0718 | 1 | ||
WASHER,10.2X16X1 | 92022 | 92022-1829 | 1 | ||
CLAMP | 92037 | 92037-1780 | 2 | ||
RING-O | 92055 | 92055-1630 | 1 | ||
BAND,L=188 | 92072 | 92072-1239 | 1 | ||
SEAL | 92093 | 92093-0572 | 1 | ||
SEAL | 92093A | 92093-1548 | 1 | ||
SPRING | 92145 | 92145-1567 | 1 | ||
BOLT,FLANGED,6X30 | 92151 | 92151-1686 | 8 | ||
COLLAR | 92152 | 92152-1332 | 4 | ||
BOLT,6X47 | 92153 | 92153-0678 | 3 | ||
CLAMP | 92170 | 92170-1764 | 2 | ||
CLAMP | 92171 | 92171-0329 | 1 | ||
CLAMP | 92173 | 92173-0260 | 2 |
