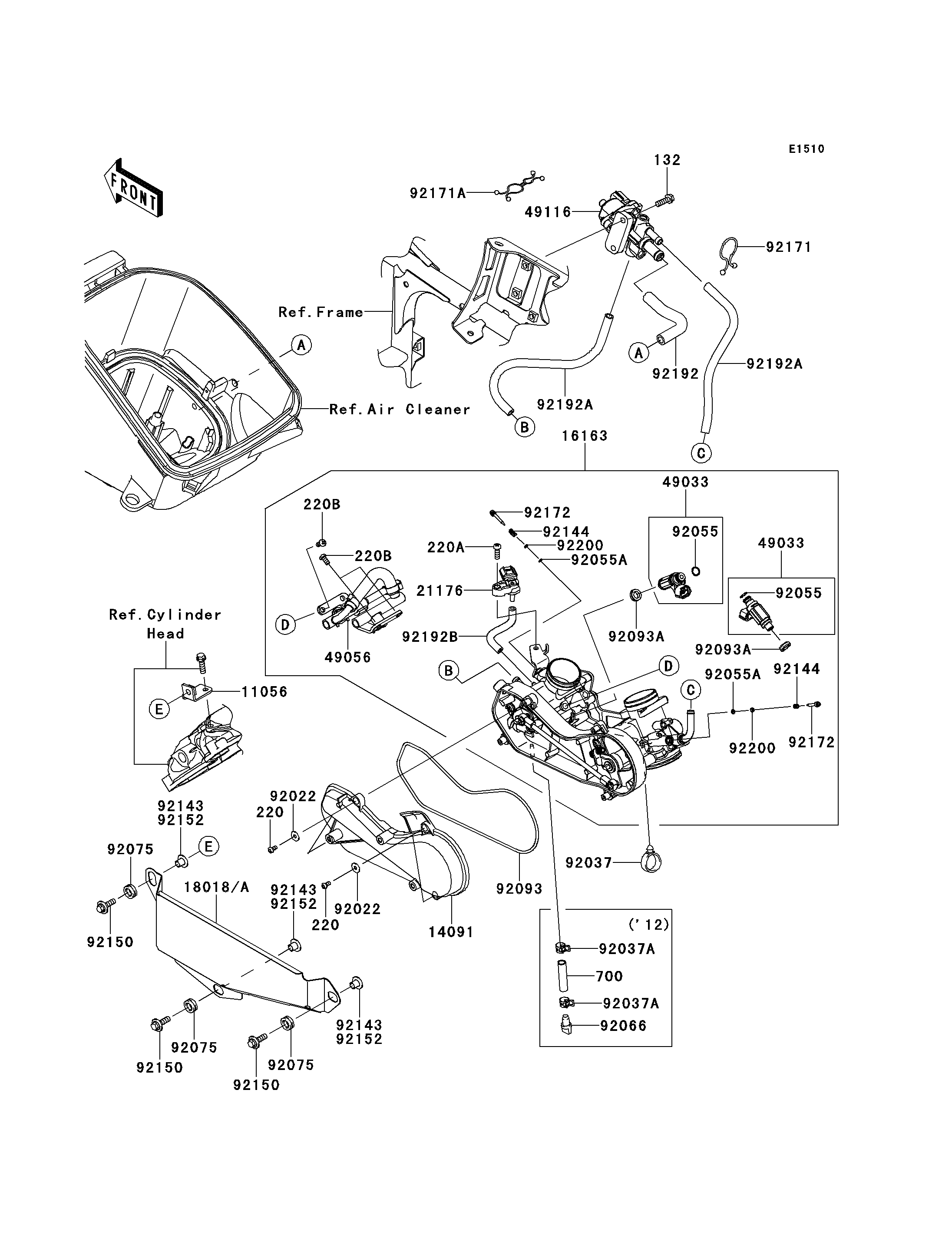

2014 BRUTE FORCE® 750 4x4i EPS - Throttle

DOWNLOAD PDF
SELECT A NEW PART
132
220
220
220A
220B
220B
11056
14091
16163
18018A
21176
49033
49033
49056
49116
92022
92022
92037
92055
92055
92055A
92055A
92075
92075
92075
92093
92093A
92093A
92144
92144
92150
92150
92150
92152
92152
92152
92171
92171A
92172
92172
92192
92192A
92192A
92192B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X18 132 132BD0618 2
SCREW-PAN-CROS,4X8 220 220AA0408 4
SCREW-PAN-CROS,5X16 220A 220AA0516 1
SCREW-PAN-CROS,6X12 220B 220D0612 4
BRACKET 11056 11056-1026 1
COVER,THROTTLE LINK 14091 14091-1731 1
THROTTLE-ASSY 16163 16163-0786 1
PLATE-HEAT GUARD 18018A 18018-0033 1
SENSOR,PRESSURE 21176 21176-0111 1
NOZZLE-INJECTION 49033 49033-1060 2
PIPE-INJECTION 49056 49056-0034 1
VALVE-ASSY 49116 49116-0021 1
WASHER,5.2X13X1 92022 92022-1380 4
CLAMP,HOSE 92037 92037-1827 1
RING-O,INJECTION NOZZLE 92055 92055-1622 2
RING-O,AIR SCREW 92055A 92055-1658 2
DAMPER 92075 92075-1947 3
SEAL 92093 92093-0082 1
SEAL 92093A 92093-0127 2
SPRING,THROTTLE STOP SCREW 92144 92144-1674 2
BOLT,FLANGED,6X20 92150 92150-1339 3
COLLAR,6.3X8.3X9.2 92152 92152-0237 3
CLAMP 92171 92171-1185 1
CLAMP 92171A 92171-1438 1
SCREW 92172 92172-0156 2
TUBE 92192 92192-0437 1
TUBE 92192A 92192-0439 2
TUBE 92192B 92192-0914 1
WASHER,PILOT AIR SCREW 92200 92200-1564 2
