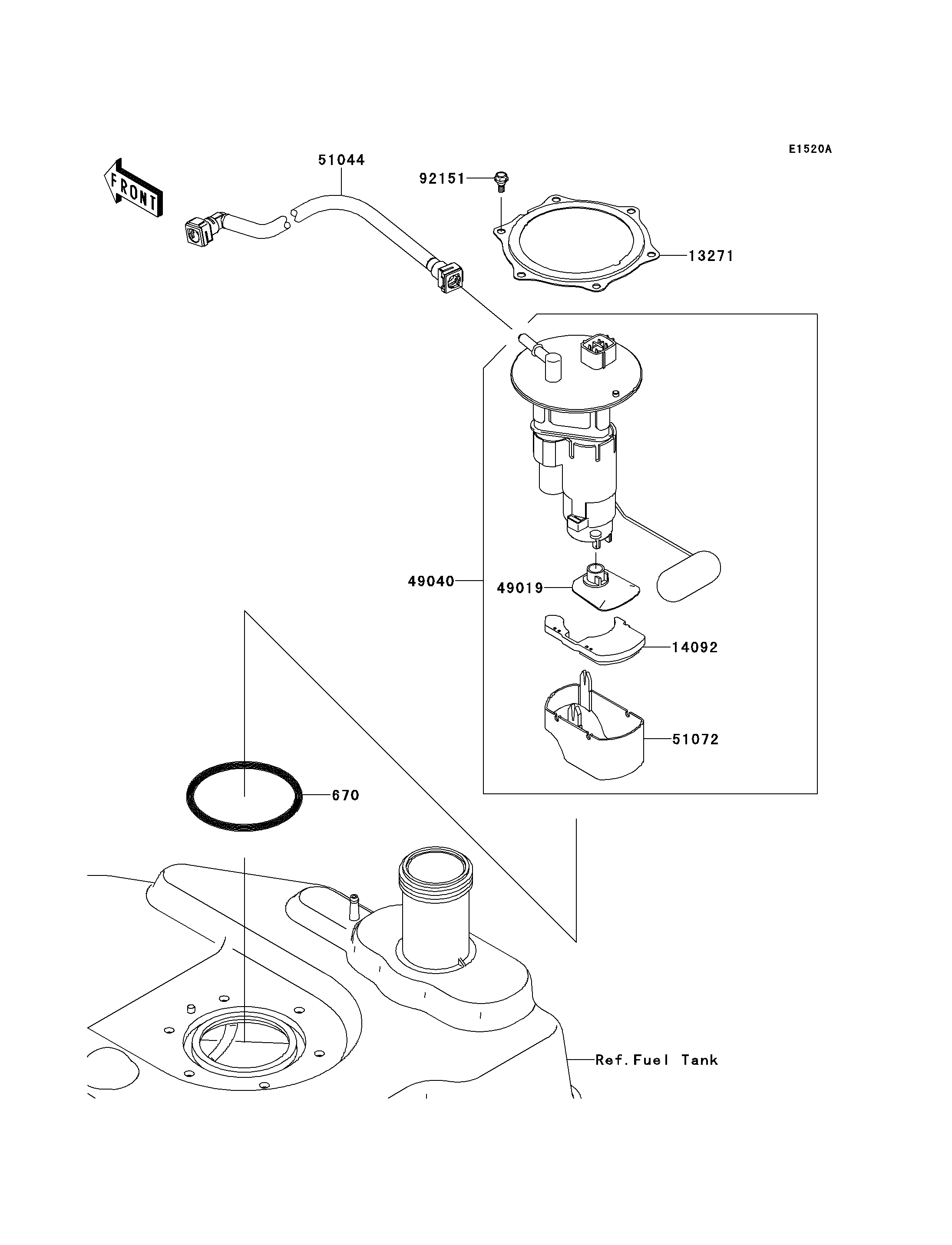

2014 BRUTE FORCE® 750 4x4i EPS - Fuel Pump(JDF/JEF)

670
13271
14092
49019
49040
51044
51072
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670E5090 1
PLATE 13271 13271-0980 1
COVER 14092 14092-1044 1
FILTER-FUEL 49019 49019-0013 1
PUMP-FUEL 49040 49040-0717 1
TUBE-ASSY 51044 51044-0041 1
CHAMBER-FUEL 51072 51072-0003 1
BOLT,FLANGED,5X11.5 92151 92151-1754 6
