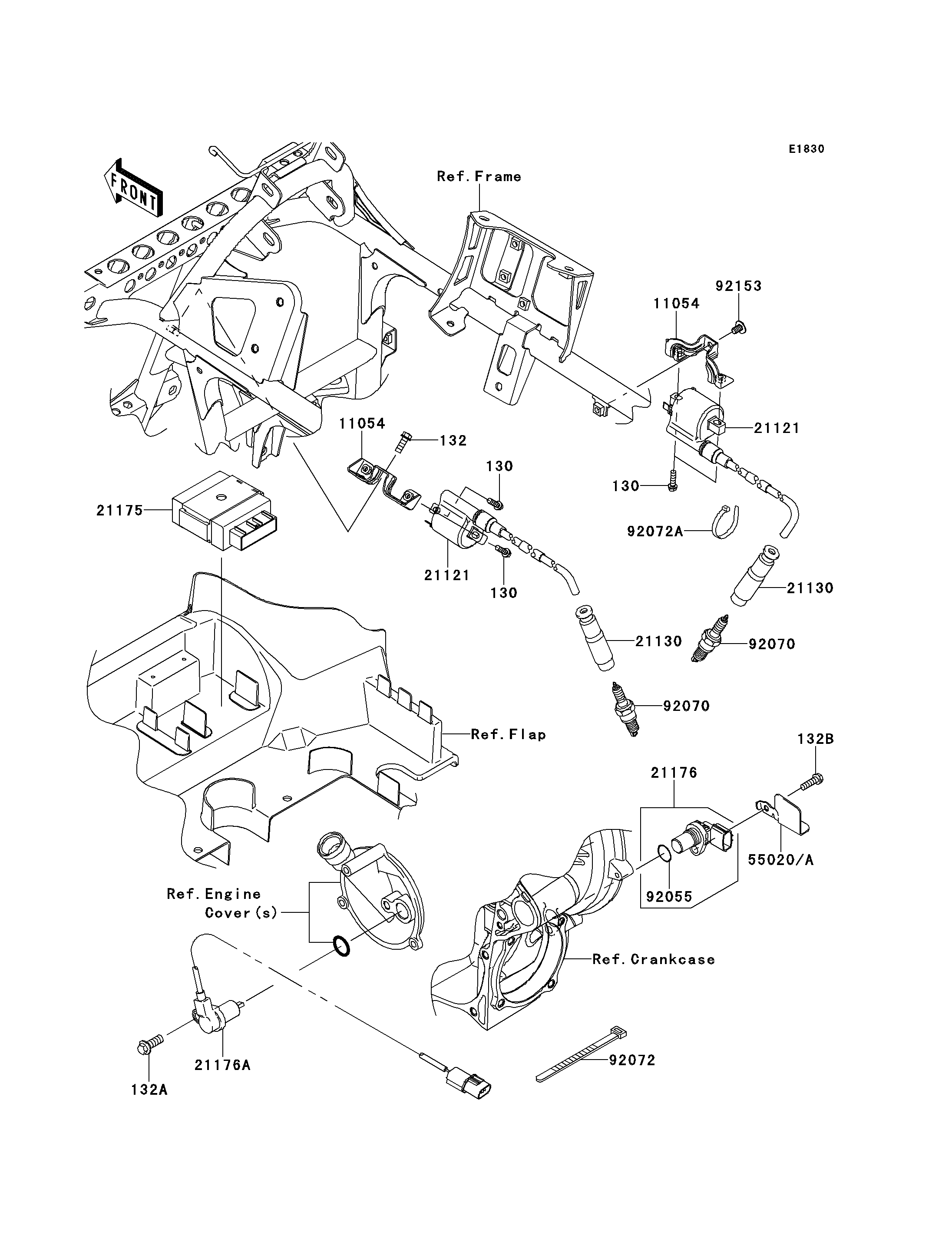

2014 BRUTE FORCE® 750 4x4i EPS - Ignition System
130
130
130
132
132A
132B
11054
11054
21121
21121
21130
21130
21175
21176
21176A
55020A
92055
92070
92070
92072
92072A
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X18 | 130 | 130BB0518 | 4 | ||
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 1 | ||
| BOLT-FLANGED-SMALL,8X22 | 132A | 132BA0822 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132B | 132BD0620 | 1 | ||
| BRACKET | 11054 | 11054-1328 | 2 | ||
| COIL-IGNITION | 21121 | 21121-0039 | 2 | ||
| CAP-SPARK PLUG | 21130 | 21130-1071 | 2 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-0216 | 1 | ||
| SENSOR,SPEED | 21176 | 21176-1104 | 1 | ||
| SENSOR,REVERSE | 21176A | 21176-1109 | 1 | ||
| GUARD | 55020A | 55020-0762 | 1 | ||
| RING-O | 92055 | 92055-1718 | 1 | ||
| PLUG-SPARK,CR7E(NGK) | 92070 | 92070-1209 | 2 | ||
| BAND,L=123 | 92072 | 92072-030 | 1 | ||
| BAND,L=188 | 92072A | 92072-1239 | 1 | ||
| BOLT,SOCKET,6X10 | 92153 | 92153-1527 | 1 |
