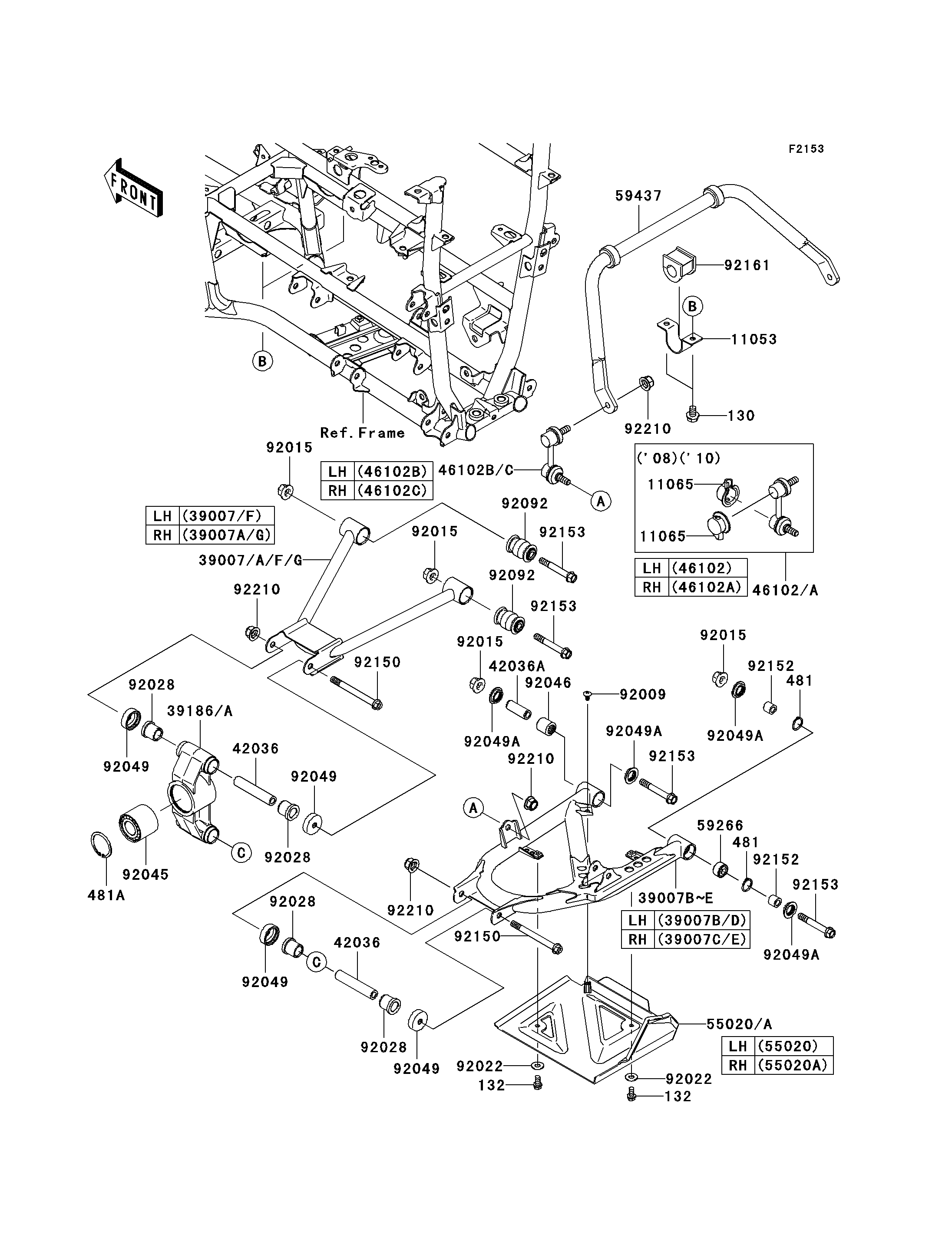

130
132
132
481
481
481A
11053
11065
11065
39007
39007A
39007B
39007C
39186
42036
42036
42036A
46102
46102A
55020
55020A
59266
59437
92009
92015
92015
92015
92015
92022
92022
92028
92028
92028
92028
92045
92046
92049
92049
92049
92049
92049A
92049A
92049A
92049A
92092
92092
92150
92150
92152
92152
92153
92153
92153
92153
92161
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130BB0812 4
BOLT-FLANGED-SMALL,6X12 132 132BB0612 4
CIRCLIP 481 481J2400 4
CIRCLIP 481A 481J5200 2
BRACKET,STABILIZER 11053 11053-1833 2
CAP 11065 11065-0086 4
ARM-SUSP,RR,UPP,LH 39007 39007-0021 1
ARM-SUSP,RR,UPP,RH 39007A 39007-0022 1
ARM-SUSP,RR,LWR,LH 39007B 39007-0038 1
ARM-SUSP,RR,LWR,RH 39007C 39007-0039 1
KNUCKLE,RR 39186 39186-0030 2
SLEEVE,10X17X85.6 42036 42036-1190 4
SLEEVE 42036A 42036-1376 2
ROD,STABILIZER,LH 46102 46102-0055 1
ROD,STABILIZER,RH 46102A 46102-0056 1
GUARD,REAR ARM,LH,F.BLACK 55020 55020-0166-6Z 1
GUARD,REAR ARM,RH,F.BLACK 55020A 55020-0167-6Z 1
JOINT-BALL 59266 59266-0013 2
STABILIZER 59437 59437-0001 1
SCREW,6X12 92009 92009-1480 2
NUT,FLANGED,10MM 92015 92015-1415 8
WASHER,7X16X1.2 92022 92022-024 4
BUSHING 92028 92028-1466 8
BEARING-BALL,25BWD02ACA68 92045 92045-0094 2
BEARING-NEEDLE 92046 92046-1046 2
SEAL-OIL,KNUCKLE 92049 92049-1198 8
SEAL-OIL,MHA17245.7F 92049A 92049-1223 8
BUSHING-RUBBER 92092 92092-0004 4
BOLT,FLANGED,10X105 92150 92150-1624 4
COLLAR,10X17X14.5 92152 92152-1455 4
BOLT,FLANGED,10X70 92153 92153-0666 8
DAMPER 92161 92161-0265 2
NUT,LOCK,FLANGED,10MM 92210 92210-0276 8
