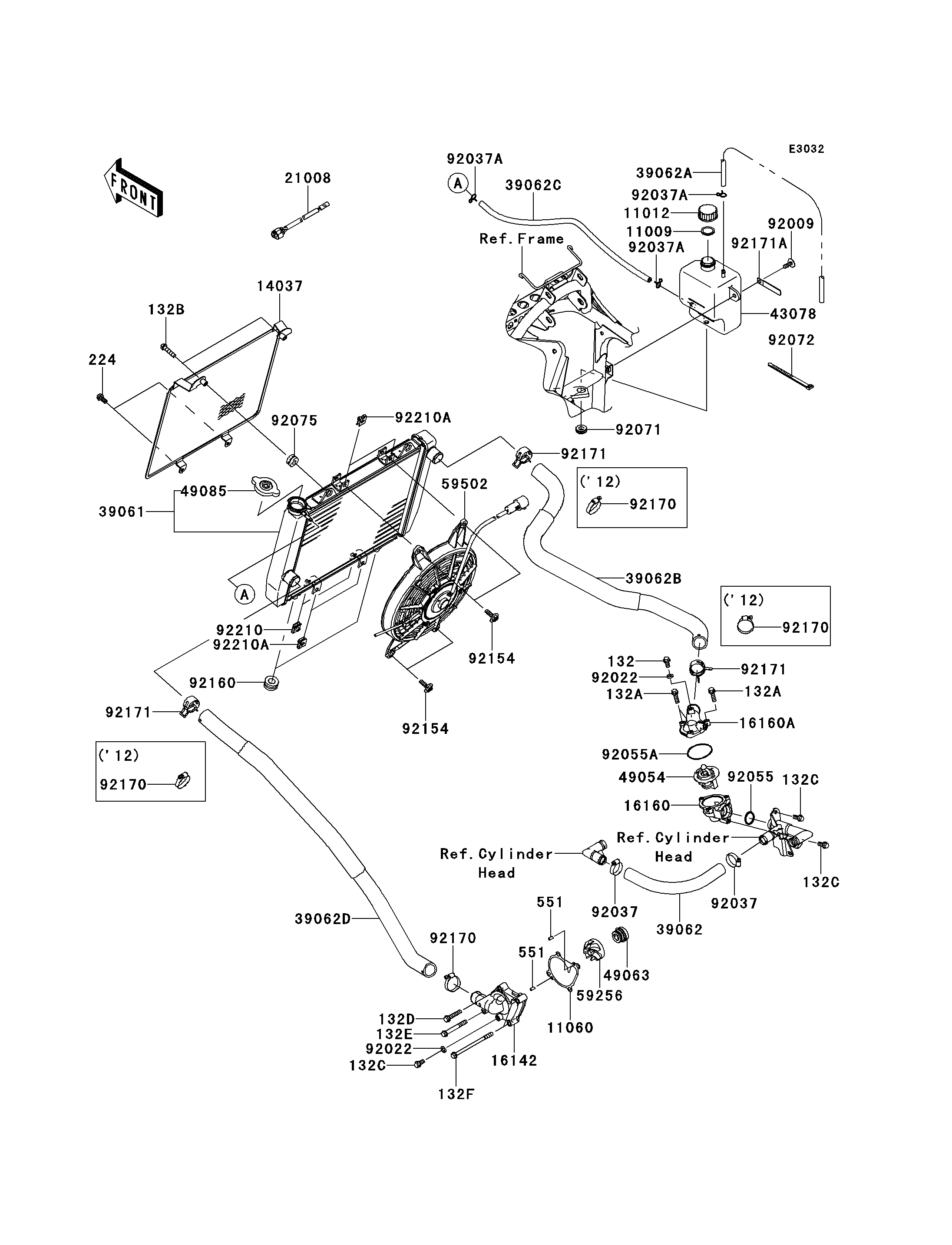

2014 BRUTE FORCE® 750 4x4i EPS - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132A
132A
132B
132B
132C
132C
132C
132C
132C
132C
11009
11009
11012
11012
11060
11060
14037
14037
16142
16142
16160
16160
16160A
16160A
21008
21008
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
43078
43078
49054
49054
49063
49063
49085
49085
59256
59256
59502
59502
92009
92009
92022
92022
92022
92022
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055A
92055A
92071
92071
92072
92072
92075
92075
92154
92154
92154
92154
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171A
92171A
92210
92210
92210A
92210A
92210A
92210A
132D
132D
132E
132E
132F
132F
224
224
551
551
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X20 132A 132BA0620 3
BOLT-FLANGED-SMALL,6X25 132B 132BA0625 2
BOLT-FLANGED-SMALL,6X12 132C 132BD0612 3
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
GASKET,WATER PUMP 11060 11060-1964 1
SCREEN 14037 14037-0742 1
COVER-PUMP,WATER 16142 16142-0069 1
BODY,THERMOSTAT,LWR 16160 16160-0189 1
BODY,THERMOSTAT,UPP 16160A 16160-0225 1
BREAKER,FAN MOTOR 21008 21008-0555 1
RADIATOR-ASSY 39061 39061-0587 1
HOSE-COOLING,FR HEAD-THERMO 39062 39062-0316 1
HOSE-COOLING,5X9X800 39062A 39062-0321 1
HOSE-COOLING,FR HEAD-THERMO 39062B 39062-0345 1
HOSE-COOLING,5X9X580 39062C 39062-0586 1
HOSE-COOLING,THERMO-RADIATOR 39062D 39062-0587 1
RESERVOIR 43078 43078-0070 1
THERMOSTAT 49054 49054-1055 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
CAP-ASSY-PRESSURE 49085 49085-0005 1
IMPELLER 59256 59256-1069 1
FAN-ASSY 59502 59502-0554 1
SCREW,6X16 92009 92009-1694 1
WASHER,6.2X11X1 92022 92022-304 2
CLAMP,COOLING HOSE 92037 92037-1589 2
CLAMP 92037A 92037-1712 3
RING-O,22.1X2.4 92055 92055-1081 1
RING-O,44.7X2.4 92055A 92055-1279 1
GROMMET 92071 92071-1115 1
BAND,L=149 92072 92072-031 1
DAMPER 92075 92075-209 2
BOLT,6X12 92154 92154-0741 4
DAMPER 92160 92160-1007 2
CLAMP,COOLING HOSE 92170 92170-1284 1
CLAMP,COOLING HOSE 92171 92171-0060 3
CLAMP 92171A 92171-0652 1
NUT 92210 92210-0754 2
NUT 92210A 92210-1323 4
BOLT-FLANGED-SMALL,6X30 132D 132BD0630 1
BOLT-FLANGED-SMALL,6X50 132E 132BD0650 1
BOLT-FLANGED-SMALL,6X90 132F 132BD0690 2
SCREW-PAN-WP-CROS,6X14 224 224AB0614 2
PIN-DOWEL,4X8 551 551A0408 2
