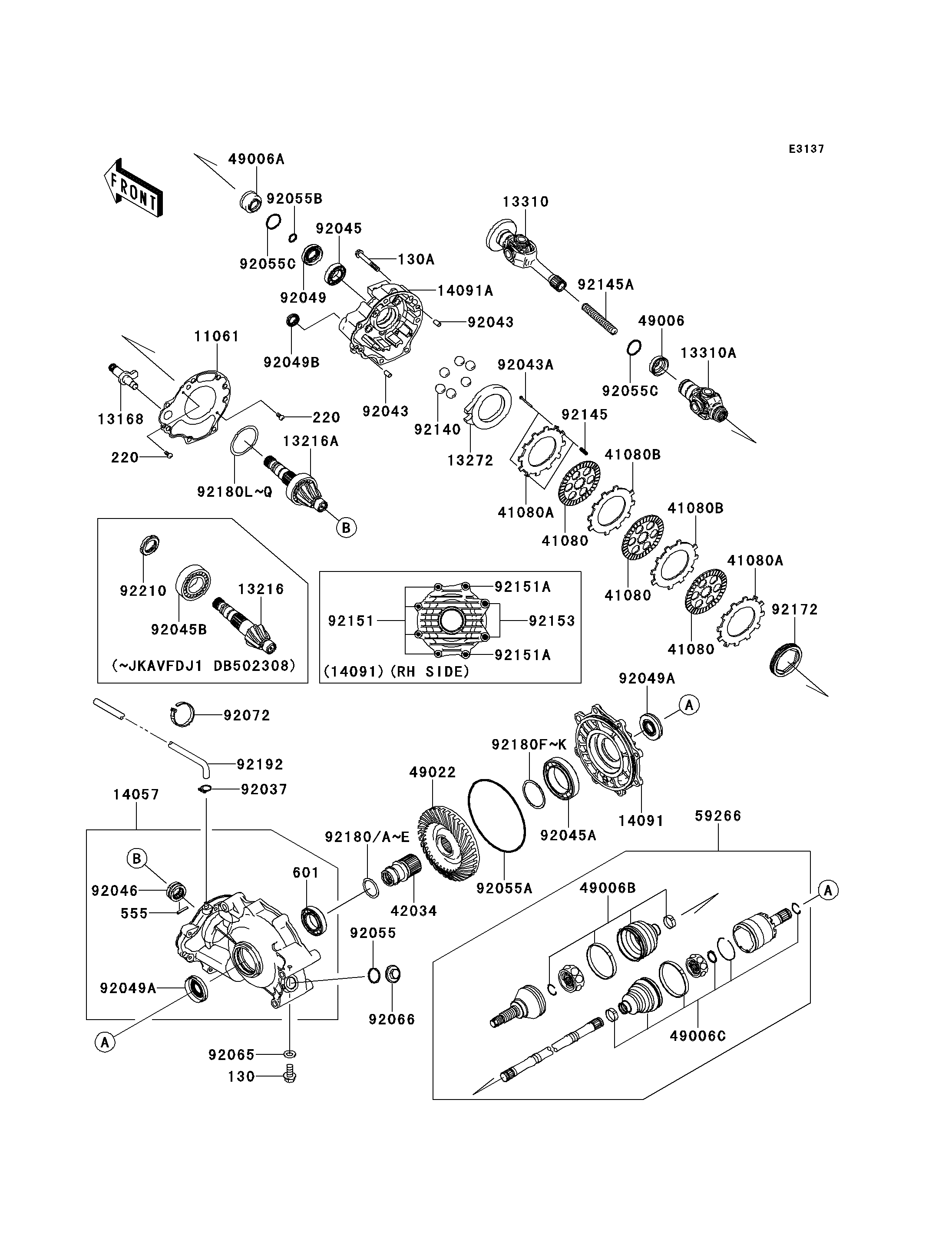

2014 BRUTE FORCE® 750 4x4i EPS - Drive Shaft-Rear

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
13168
13168
13216A
13216A
13272
13272
13310
13310
13310A
13310A
14057
14057
14091
14091
14091A
14091A
41080
41080
41080
41080
41080
41080
41080A
41080A
41080A
41080A
41080B
41080B
41080B
41080B
42034
42034
49006
49006
49006A
49006A
49006B
49006B
49006C
49006C
49022
49022
59266
59266
92037
92037
92043
92043
92043
92043
92043A
92043A
92045
92045
92045A
92045A
92046
92046
92049
92049
92049A
92049A
92049A
92049A
92049B
92049B
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055C
92055C
130
130
130A
130A
220
220
220
220
555
555
601
601
92065
92065
92066
92066
92072
92072
92140
92140
92145
92145
92145A
92145A
92151
92151
92151A
92151A
92151A
92151A
92153
92153
92172
92172
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92180L
92180L
92180M
92180M
92180N
92180N
92180O
92180O
92180P
92180P
92180Q
92180Q
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SOFT METAL 11061 11061-0059 1
LEVER,BRAKE 13168 13168-0042 1
GEAR-COMP 13216A 13216-0871 1 (JKAVFDJ1 DB502309 - )
PLATE 13272 13272-1083 1
SHAFT-ASSY,ENGINE SIDE 13310 13310-0028 1
SHAFT-ASSY,GEAR-ASSY SIDE 13310A 13310-0558 1
CASE-COMP-GEAR 14057 14057-0010 1
COVER,RH 14091 14091-0142 1
COVER,FR 14091A 14091-0143 1
DISC,FRICTION 41080 41080-1482 3
DISC,PRESSURE 41080A 41080-1483 2
DISC,SEPARATER 41080B 41080-1484 2
COUPLING 42034 42034-0006 1
BOOT 49006 49006-0007 1
BOOT 49006A 49006-0008 1
BOOT,UJ 49006B 49006-0064 2
BOOT,DOJ 49006C 49006-0065 2
GEAR-BEVEL,35T 49022 49022-0563 1
JOINT-BALL 59266 59266-0023 2
CLAMP,HOSE 92037 92037-1104 1
PIN,8X14 92043 92043-1567 2
PIN,3X35 92043A 92043-1617 2
BEARING-BALL,#6005 92045 92045-0077 1
BEARING-BALL,55X90X18 92045A 92045-0078 1
BEARING-NEEDLE,AH502504A 92046 92046-1280 1
SEAL-OIL,HTGY 24X45X9.5 92049 92049-0028 1
SEAL-OIL,SDD7 25X57X7 HS 92049A 92049-0029 2
SEAL-OIL,TC17X28X6 92049B 92049-1537 1
RING-O 92055 92055-0122 1
RING-O,158.5X3.70 92055A 92055-1631 1
RING-O,18X24X3 92055B 92055-1633 1
RING-O,30X35X2.5 92055C 92055-1693 2
BOLT-FLANGED,8X16 130 130BA0816 1
BOLT-FLANGED,8X60 130A 130CA0860 7
SCREW-PAN-CROS,4X8 220 220AA0408 2
PIN-SPRING 555 555A0428 1
BEARING-BALL,#6007 601 601A6007 1
GASKET 92065 92065-023 1
PLUG 92066 92066-1303 1
BAND,L=186 92072 92072-056 5
BALL,D/O#12 92140 92140-1064 6
SPRING,RR BRAKE 92145 92145-1301 2
SPRING,PROPELLER SHAFT 92145A 92145-1304 1
BOLT,8X30 92151 92151-1908 4
BOLT,10X35 92151A 92151-1909 2
BOLT,12X35 92153 92153-0311 2
SCREW,SET,76X12 92172 92172-0718 1
SHIM,35.2X44.0X1.2 92180 92180-0161 AR
SHIM,35.2X44.0X1.0 92180A 92180-0162 AR
SHIM,35.2X44.0X0.8 92180B 92180-0163 AR
SHIM,35.2X44.0X0.5 92180C 92180-0164 AR
SHIM,35.2X44.0X0.2 92180D 92180-0165 AR
SHIM,35.2X44.0X0.15 92180E 92180-0166 AR
SHIM,55X64X0.15 92180F 92180-1417 AR
SHIM,55X64X0.20 92180G 92180-1418 AR
SHIM,55X64X0.50 92180H 92180-1419 AR
SHIM,55X64X0.80 92180I 92180-1420 AR
SHIM,55X64X1.00 92180J 92180-1421 AR
SHIM,55X64X1.20 92180K 92180-1422 AR
SHIM,60X72X0.15 92180L 92180-1423 AR
SHIM,60X72X0.20 92180M 92180-1424 AR
SHIM,60X72X0.50 92180N 92180-1425 AR
SHIM,60X72X0.80 92180O 92180-1426 AR
SHIM,60X72X1.00 92180P 92180-1427 AR
SHIM,60X72X1.20 92180Q 92180-1428 AR
TUBE,BREATHER,L=1680MM 92192 92192-0210 1
