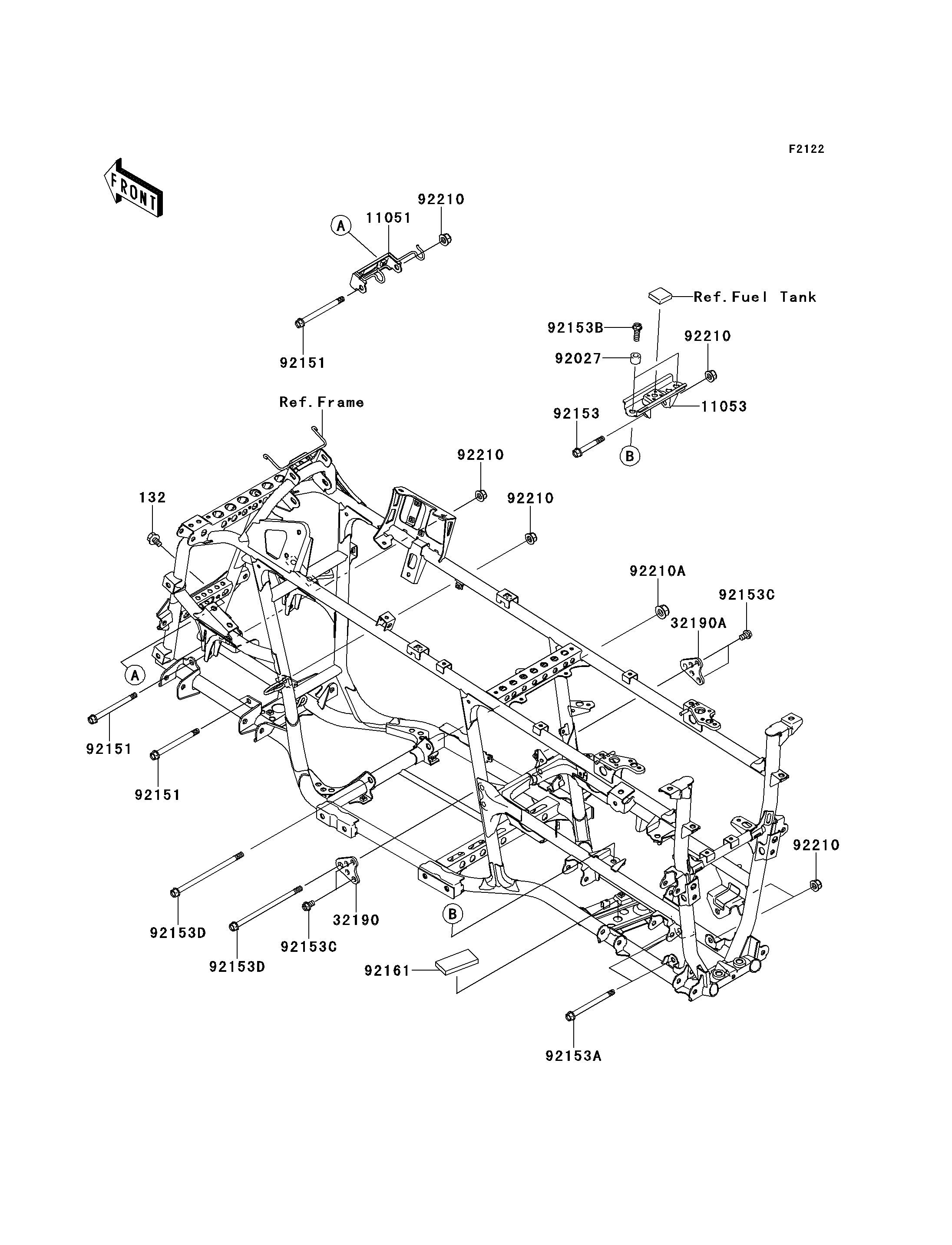

2014 BRUTE FORCE® 750 4x4i EPS - Engine Mount
132
11051
11053
32190
32190A
92027
92151
92151
92151
92153
92153A
92153B
92153C
92153C
92153D
92153D
92161
92210
92210
92210
92210
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,8X14 | 132 | 132BA0814 | 2 | ||
| BRACKET,FRONT DIFF | 11051 | 11051-1929 | 1 | ||
| BRACKET,REAR DIFF,TOP | 11053 | 11053-1592 | 1 | ||
| BRACKET-ENGINE,RR,UPP,LH | 32190 | 32190-0059 | 1 | ||
| BRACKET-ENGINE,RR,UPP,RH | 32190A | 32190-0060 | 1 | ||
| COLLAR,FRONT AXLE,L=14.5 | 92027 | 92027-1472 | 2 | ||
| BOLT,FLANGED,10X120 | 92151 | 92151-1914 | 3 | ||
| BOLT,FLANGED,10X70 | 92153 | 92153-0871 | 1 | ||
| BOLT,FLANGED,10X120 | 92153A | 92153-0872 | 2 | ||
| BOLT,FLANGED,10X30 | 92153B | 92153-0930 | 2 | ||
| BOLT,FLANGED,10X16 | 92153C | 92153-0991 | 4 | ||
| BOLT,FLANGED,12X190 | 92153D | 92153-1502 | 2 | ||
| DAMPER | 92161 | 92161-0215 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1081 | 6 | ||
| NUT,LOCK,FLANGED,12MM | 92210A | 92210-1150 | 1 |
