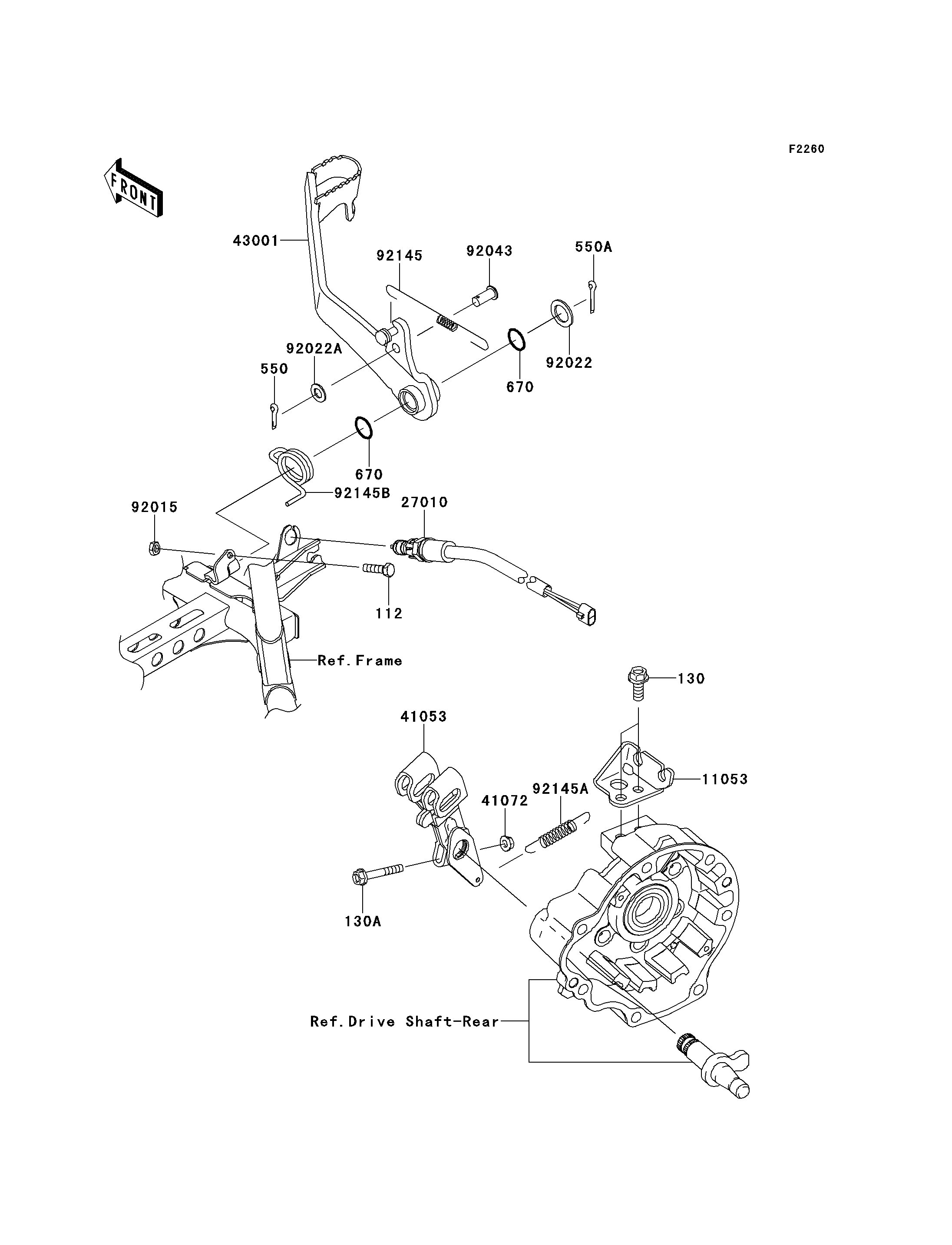

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X22 112 112AA0622 1
BOLT-FLANGED,8X20 130 130BA0820 2
BOLT-FLANGED,6X40 130A 130CA0640 1
PIN-COTTER,2.0X15 550 550AA2015 1
PIN-COTTER,2.0X22 550A 550AA2022 1
O RING,15MM 670 670B2015 2
BRACKET,BRAKE CABLE 11053 11053-0642 1
SWITCH,BRAKE 27010 27010-1494 1
LEVER-BRAKE CAM 41053 41053-0017 1
NUT,6MM 41072 41072-007 1
LEVER-BRAKE,PEDAL 43001 43001-0092 1
NUT,6MM 92015 92015-1410 1
WASHER,15.5X24X1.6 92022 92022-1049 1
WASHER,8.5X16X1.2 92022A 92022-1582 1
PIN,8X16 92043 92043-1013 1
SPRING,REAR BRAKE SWITCH 92145 92145-0144 1
SPRING,BRAKE LEVER RETURN 92145A 92145-1313 1
SPRING,BRAKE PEDAL RETURN 92145B 92145-1421 1
