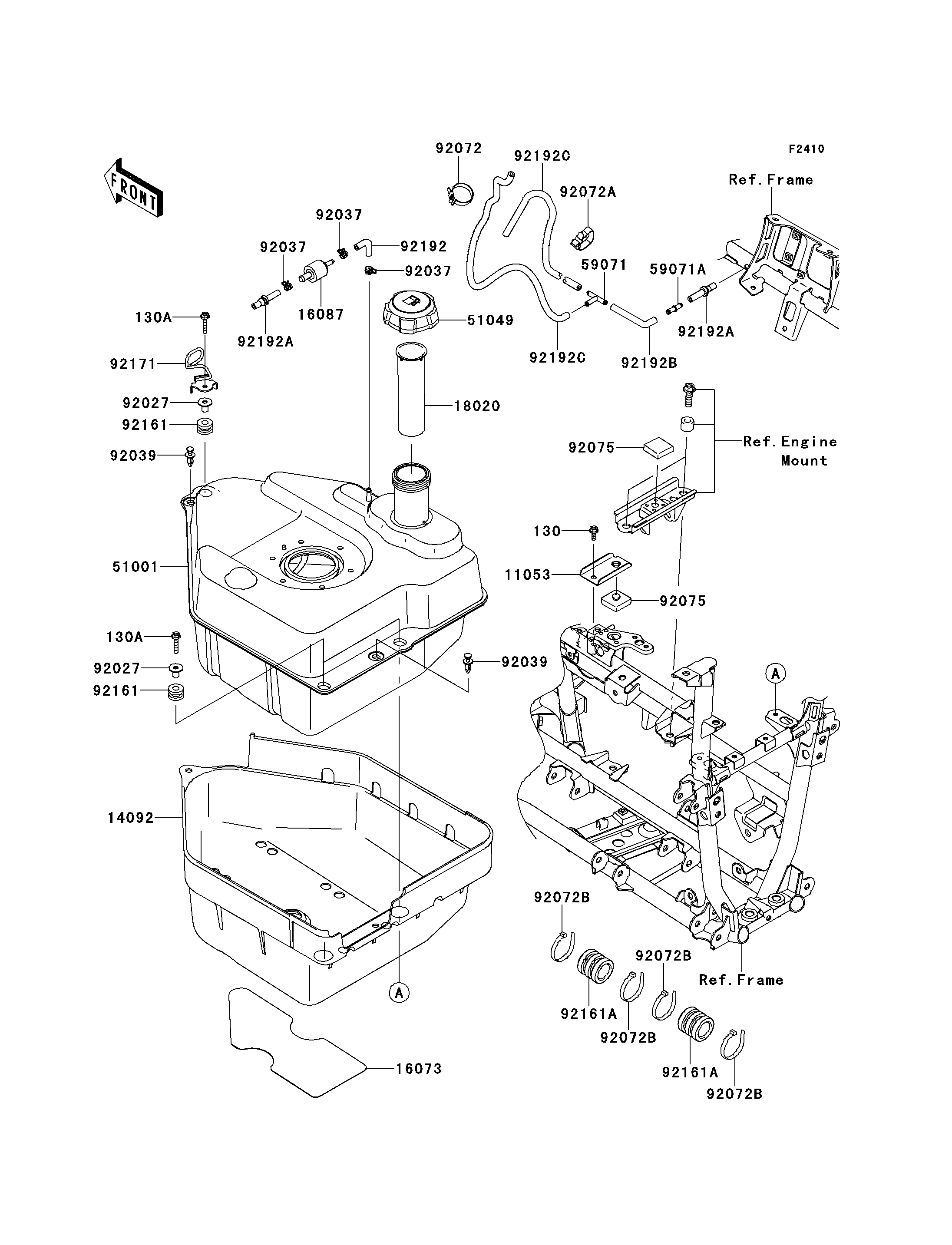

2014 BRUTE FORCE® 750 4x4i EPS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
11053
14092
16073
16087
18020
51001
51049
59071
59071A
92027
92027
92037
92037
92037
92039
92039
92072
92072A
92072B
92072B
92072B
92072B
92075
92075
92161
92161
92161A
92161A
92171
92192
92192A
92192A
92192B
92192C
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 1
BOLT-FLANGED,6X30 130A 130BA0630 3
BRACKET,FUEL TANK,TOP 11053 11053-0936 1
COVER,FUEL TANK,LWR 14092 14092-0186 1
INSULATOR,FUEL TANK COVER,LWR 16073 16073-0034 1
VALVE-CHECK 16087 16087-0703 1
BAFFLE,FUEL TANK 18020 18020-0008 1
TANK-COMP-FUEL 51001 51001-0237 1
CAP-TANK,FUEL 51049 51049-1128 1
JOINT 59071 59071-3705 1
JOINT 59071A 59071-3717 1
COLLAR,L=16.1 92027 92027-1847 3
CLAMP,TUBE 92037 92037-1461 3
RIVET 92039 92039-1229 2
BAND,L=149 92072 92072-031 1
BAND,L=186 92072A 92072-056 1
BAND,L=188 92072B 92072-1239 4
DAMPER 92075 92075-1882 2
DAMPER 92161 92161-0106 3
DAMPER,FUEL TANK,RR 92161A 92161-1111 2
CLAMP,FUEL TUBE 92171 92171-1741 1
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1
TUBE,FRAME PIPE-CHECK VALVE 92192A 92192-0068 2
TUBE,5X10X80/22 92192B 92192-0992 1
TUBE,5X10X470 92192C 92192-0993 2
