130
130
11054
53066
92145

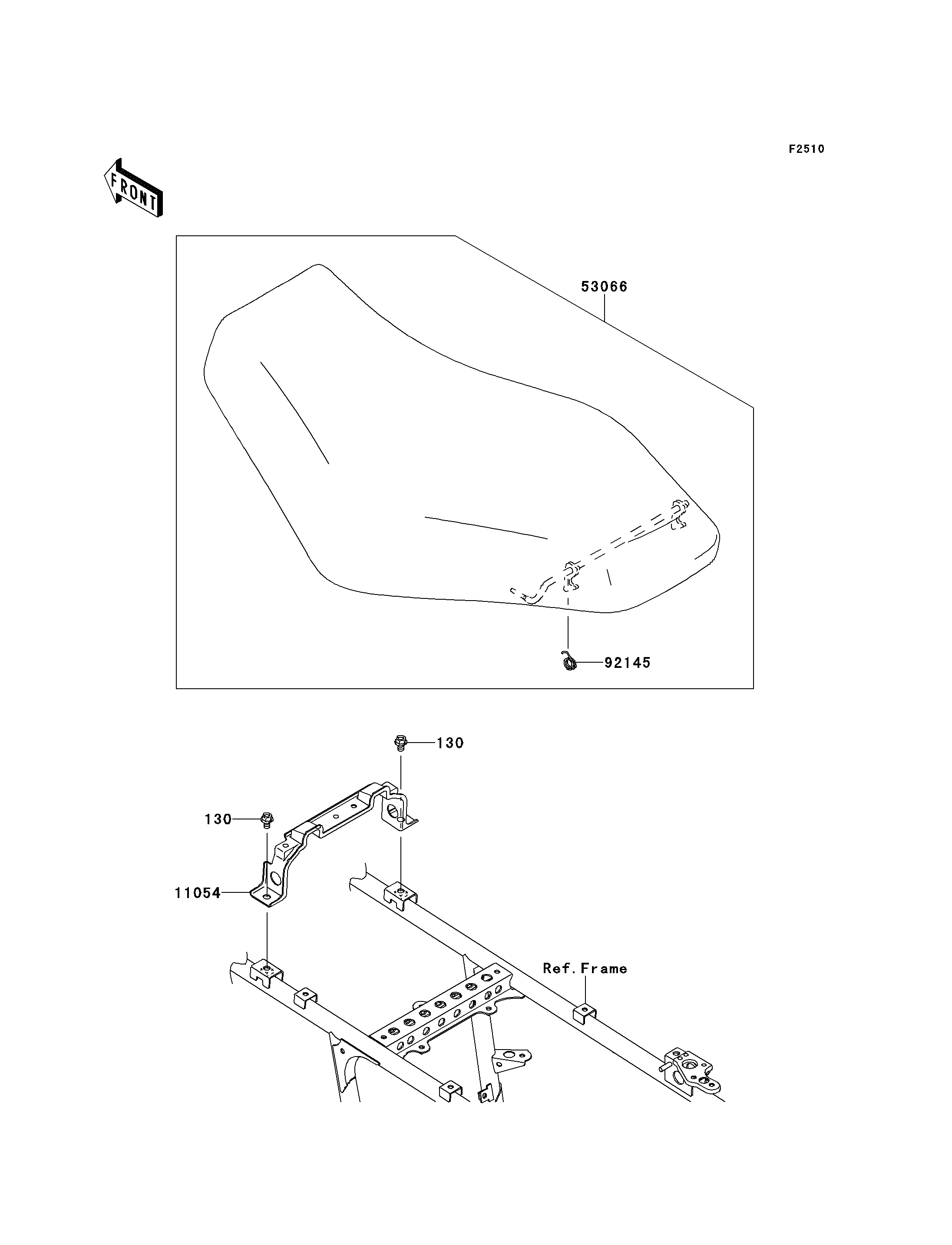

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130BA0812 2
BRACKET,SEAT&BATTERY BAND 11054 11054-1236 1
SEAT-ASSY,BLACK 53066 53066-0291-MA 1
SPRING,SEAT LATCH 92145 92145-0022 1
