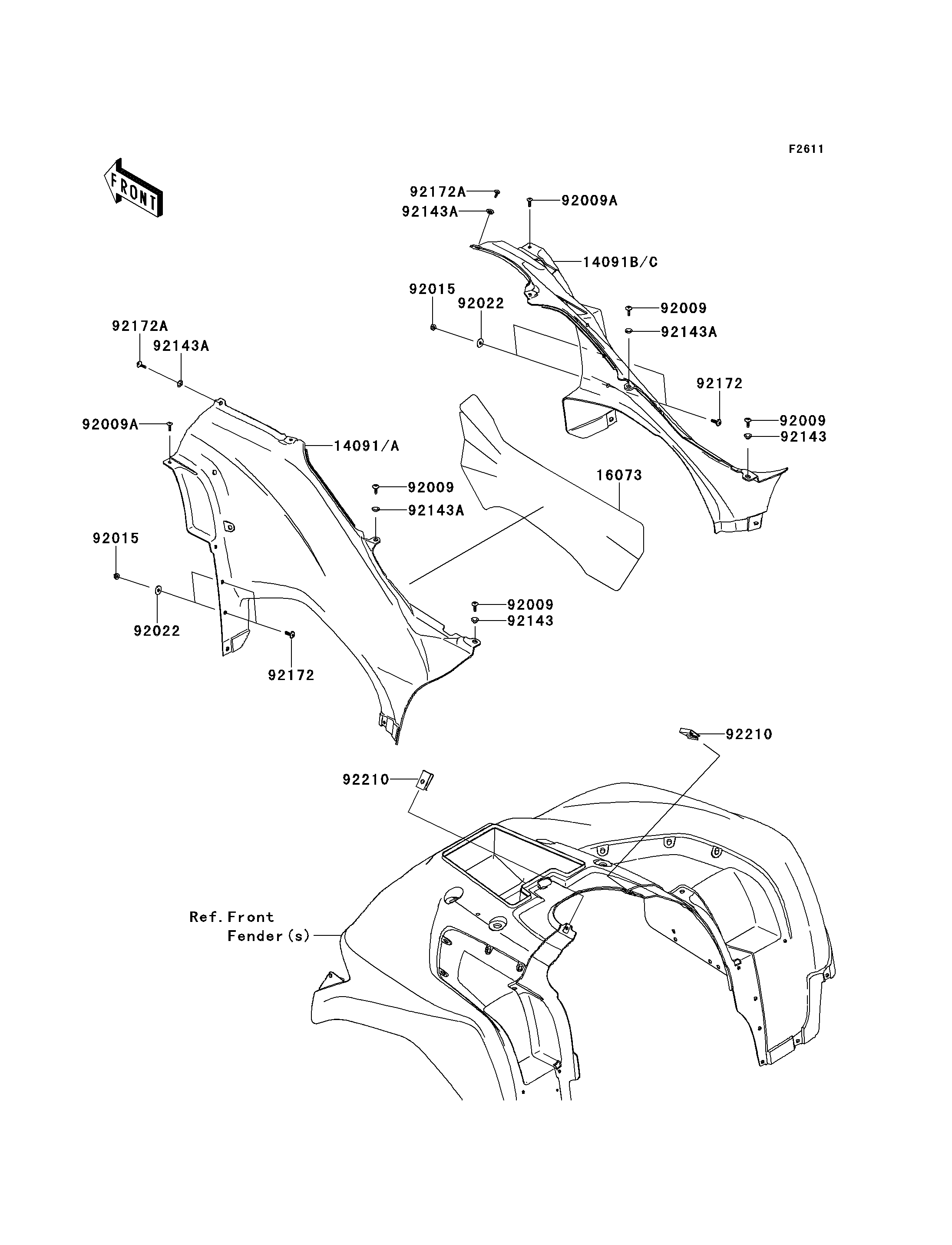

2014 BRUTE FORCE® 750 4x4i EPS - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
16073
92009
92009
92009
92009
92009A
92009A
92015
92015
92022
92022
92143
92143
92143A
92143A
92143A
92143A
92172
92172
92172A
92172A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
INSULATOR,SIDE COVER,LH 16073 16073-0723 1
SCREW,6X16 92009 92009-1621 4
SCREW,5X18 92009A 92009-1655 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 4
SCREW,6X18 92172 92172-0002 4
SCREW,TAPPING,6X20 92172A 92172-0488 2
NUT,LEAF SPRING,6MM 92210 92210-0624 2
COVER,SIDE,LH,M.T.GRAY 14091 14091-0312-31S 1 CN
COVER,SIDE,LH,C.L.GREEN 14091A 14091-0312-367 1 US
COVER,SIDE,RH,M.T.GRAY 14091B 14091-0313-31S 1 CN
COVER,SIDE,RH,C.L.GREEN 14091C 14091-0313-367 1 US
