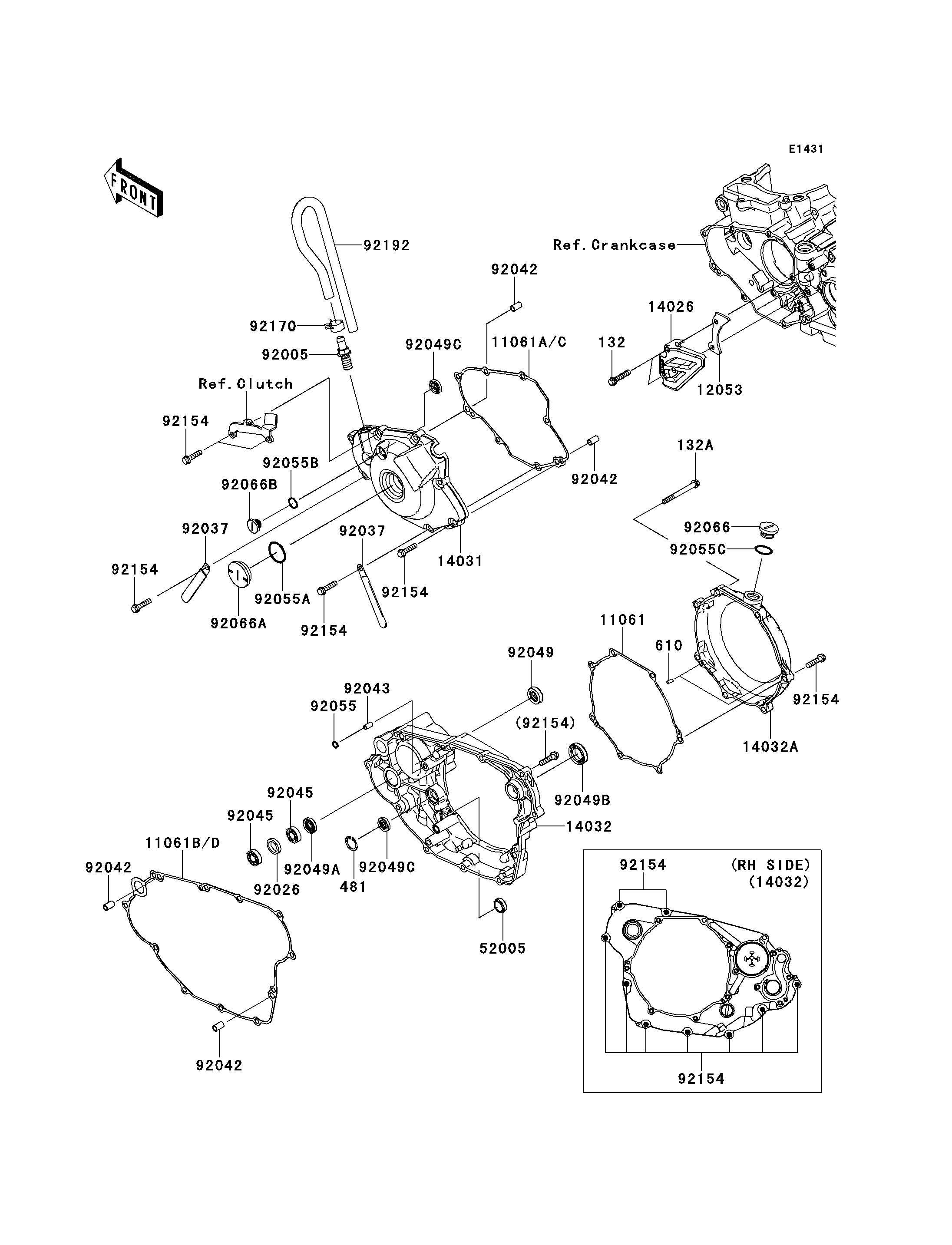

2012 KX™450F - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
481
610
11061
11061A
11061B
11061C
11061D
12053
14026
14031
14032
14032A
52005
92005
92026
92037
92037
92042
92042
92042
92042
92043
92045
92045
92049
92049A
92049B
92049C
92049C
92055
92055A
92055B
92055C
92066
92066A
92066B
92154
92154
92154
92154
92154
92154
92154
92170
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X30 132 132BA0630 2
BOLT-FLANGED-SMALL,6X60 132A 132BA0660 1
CIRCLIP-TYPE-C,20MM 481 481J2000 1
ROLLER,4X8 610 610A0408 2
GASKET,CLUTCH OUTER COVER 11061 11061-0259 1
GASKET,GENERATOR COVER 11061A 11061-0358 1 (OPTION)
GASKET,CLUTCH COVER 11061B 11061-0359 1 (OPTION)
GASKET,GENERATOR COVER 11061C 11061-0452 1
GASKET,CLUTCH COVER 11061D 11061-0453 1
GUIDE-CHAIN 12053 12053-0187 1
COVER-CHAIN 14026 14026-0065 1
COVER-GENERATOR 14031 14031-0111 1
COVER-CLUTCH,INNER 14032 14032-0117 1
COVER-CLUTCH 14032A 14032-0153 1
GAUGE,OIL LEVEL 52005 52005-0019 1
FITTING,BREATHER 92005 92005-0014 1
SPACER,16X22X4.3 92026 92026-0064 1
CLAMP 92037 92037-1993 2
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,4.2X6X12 92043 92043-1262 1
BEARING-BALL,6900C3 92045 92045-0039 2
SEAL-OIL,12X24X7 92049 92049-0040 1
SEAL-OIL,12X22X5 92049A 92049-0041 1
SEAL-OIL,20X30X7 92049B 92049-0134 1
SEAL-OIL,10X20X5 92049C 92049-1542 2
RING-O 92055 92055-0113 1
RING-O,27.7X2.4 92055A 92055-091 1
RING-O,13.0X1.9 92055B 92055-1011 1
RING-O,20X2 92055C 92055-1146 1
PLUG,18X9 92066 92066-0731 1
PLUG,30X8 92066A 92066-0732 1
PLUG,12X9.1 92066B 92066-0733 1
BOLT,FLANGED,6X25 92154 92154-0530 23
CLAMP 92170 92170-1938 1
TUBE,BREATHER 92192 92192-0944 1
