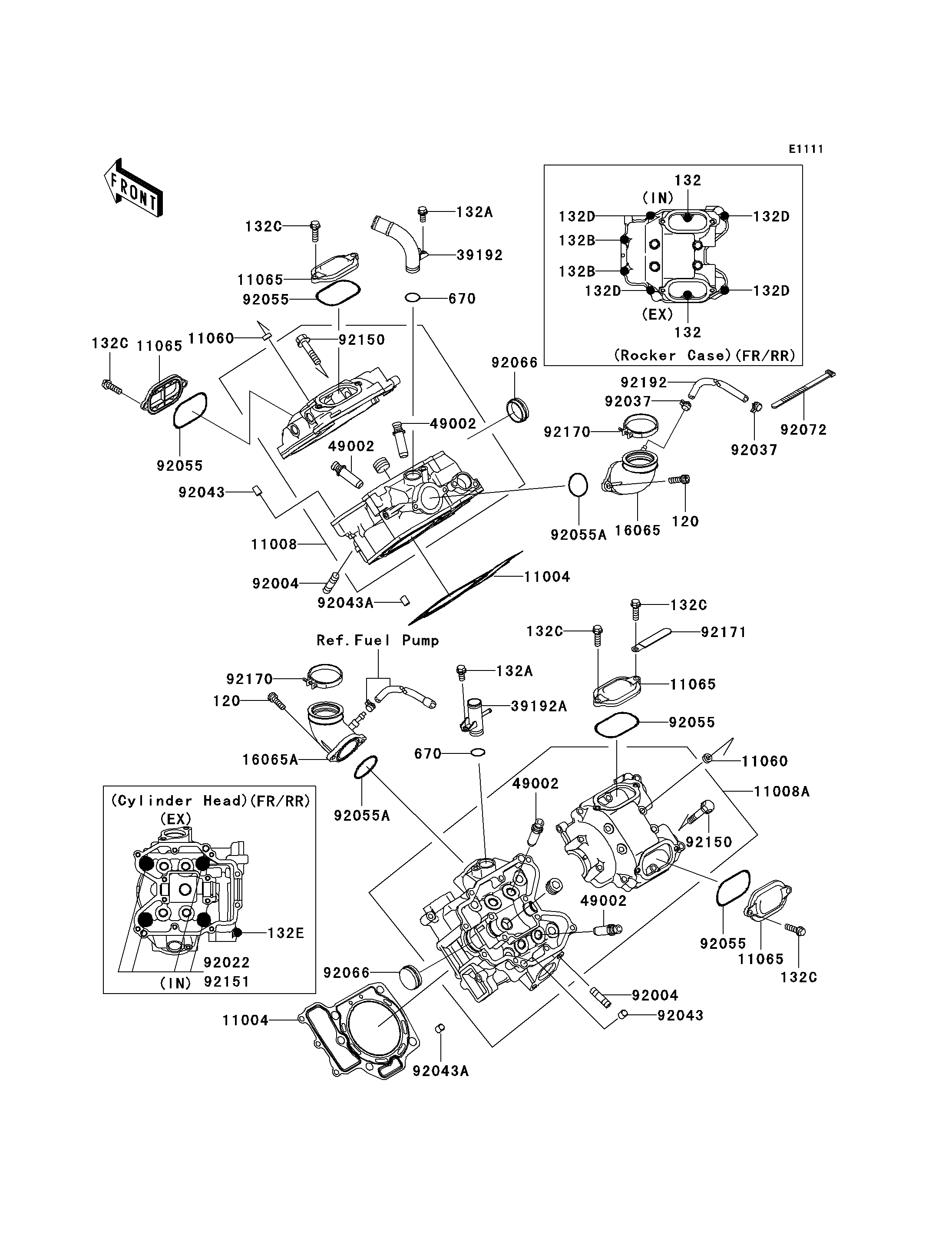

2006 Brute Force 650 4x4 - Cylinder Head
120
120
132
132
132A
132A
132B
132B
132C
132C
132C
132C
132C
132D
132D
132D
132D
132E
670
670
11004
11004
11008
11008A
11060
11060
11065
11065
11065
11065
16065
16065A
39192
39192A
49002
49002
49002
49002
92004
92004
92022
92037
92037
92043
92043
92043A
92043A
92055
92055
92055
92055
92055A
92055A
92066
92066
92072
92150
92150
92151
92170
92170
92171
92192
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X20 | 120 | 120CD0620 | 4 | ||
BOLT-FLANGED-SMALL,6X25 | 132 | 132BA0625 | 4 | ||
BOLT-FLANGED-SMALL,6X12 | 132A | 132BD0612 | 2 | ||
BOLT-FLANGED-SMALL,6X130 | 132B | 132BD06130 | 4 | ||
BOLT-FLANGED-SMALL,6X20 | 132C | 132BD0620 | 8 | ||
BOLT-FLANGED-SMALL,6X30 | 132D | 132BD0630 | 8 | ||
BOLT-FLANGED-SMALL,6X95 | 132E | 132BD0695 | 2 | ||
O RING,16MM | 670 | 670B2016 | 2 | ||
GASKET-HEAD | 11004 | 11004-0030 | 2 | ||
HEAD-COMP-CYLINDER,FR | 11008 | 11008-0030 | 1 | ||
HEAD-COMP-CYLINDER,RR | 11008A | 11008-0031 | 1 | ||
GASKET,6.2X12X0.3 | 11060 | 11060-1994 | 8 | ||
CAP,ROCKER CASE | 11065 | 11065-1152 | 4 | ||
HOLDER-CARBURETOR | 16065 | 16065-1370 | 1 | ||
HOLDER-CARBURETOR,RR | 16065A | 16065-1371 | 1 | ||
PIPE-WATER | 39192 | 39192-1132 | 1 | ||
PIPE-WATER | 39192A | 39192-1133 | 1 | ||
GUIDE-VALVE | 49002 | 49002-1097 | AR | ||
STUD,8X22 | 92004 | 92004-1217 | 4 | ||
WASHER,11.5X20.5X1.6 | 92022 | 92022-1720 | 8 | ||
CLAMP,TUBE | 92037 | 92037-1461 | 2 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
PIN,10.1X12X14 | 92043A | 92043-4009 | 4 | ||
RING-O | 92055 | 92055-0112 | 4 | ||
RING-O,38X1.9 | 92055A | 92055-1295 | 2 | ||
PLUG | 92066 | 92066-1289 | 2 | ||
BAND,L=123 | 92072 | 92072-030 | 1 | ||
BOLT,FLANGED,6X55 | 92150 | 92150-1302 | 8 | ||
BOLT,FLANGED,10X150 | 92151 | 92151-1917 | 8 | ||
CLAMP | 92170 | 92170-1722 | 2 | ||
CLAMP | 92171 | 92171-0456 | 1 | ||
TUBE,4X9X610 | 92192 | 92192-0207 | 1 |
