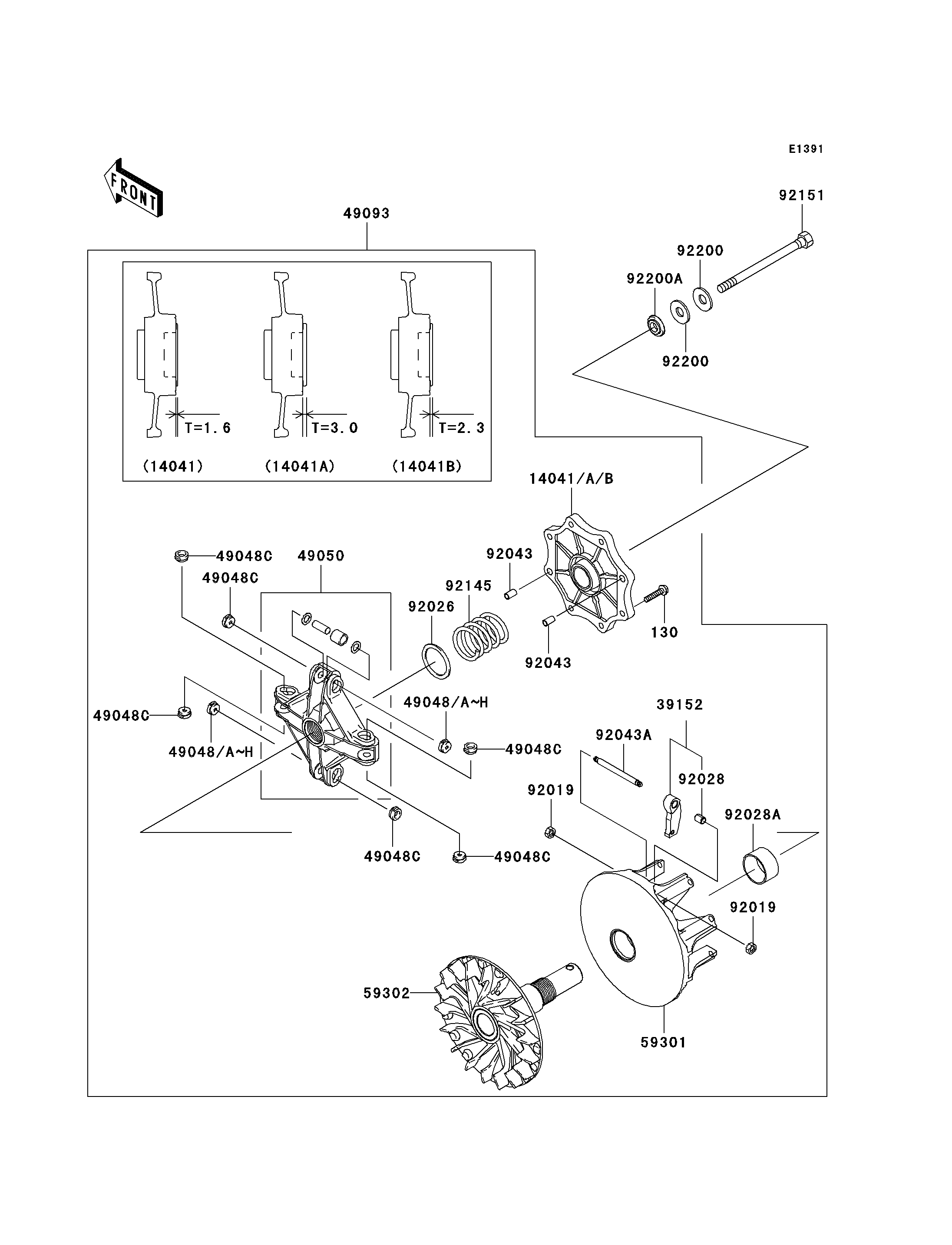

2006 Brute Force 650 4x4 - Drive Converter
130
14041
14041A
14041B
39152
49048
49048
49048A
49048A
49048B
49048B
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048D
49048D
49048E
49048E
49048F
49048F
49048G
49048G
49048H
49048H
49050
49093
59301
59302
92019
92019
92026
92028
92028A
92043
92043
92043A
92145
92151
92200
92200
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X30 | 130 | 130CA0630 | 8 | ||
COVER-COMP,RED | 14041 | 14041-1159 | AR | ||
COVER-COMP,BLUE | 14041A | 14041-1160 | AR | ||
COVER-COMP,STD | 14041B | 14041-1161 | AR | ||
WEIGHT-RAMP | 39152 | 39152-1081 | 4 | ||
SHOE,T=7.2 | 49048 | 49048-1087 | AR | ||
SHOE,T=7.3 | 49048A | 49048-1088 | AR | ||
SHOE,T=7.4 | 49048B | 49048-1089 | AR | ||
SHOE,T=7.5 | 49048C | 49048-1090 | 8 | ||
SHOE,T=7.6 | 49048D | 49048-1091 | AR | ||
SHOE,T=7.7 | 49048E | 49048-1092 | AR | ||
SHOE,T=7.8 | 49048F | 49048-1093 | AR | ||
SHOE,T=7.9 | 49048G | 49048-1094 | AR | ||
SHOE,T=8.0 | 49048H | 49048-1095 | AR | ||
SPIDER | 49050 | 49050-1081 | 1 | ||
CONVERTER-ASSY-DRIVE | 49093 | 49093-0011 | 1 | ||
SHEAVE-MOVABLE | 59301 | 59301-1070 | 1 | ||
SHEAVE-COMP | 59302 | 59302-0003 | 1 | ||
NUT,LOCK,6MM | 92019 | 92019-008 | 8 | ||
SPACER,39X49.5X1.0 | 92026 | 92026-1603 | 1 | ||
BUSHING | 92028 | 92028-1973 | 4 | ||
BUSHING | 92028A | 92028-1975 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
PIN | 92043A | 92043-1688 | 4 | ||
SPRING | 92145 | 92145-0021 | 1 | ||
BOLT,12X165 | 92151 | 92151-1393 | 1 | ||
WASHER,SPRING | 92200 | 92200-1504 | 2 | ||
WASHER | 92200A | 92200-1634 | 1 |
