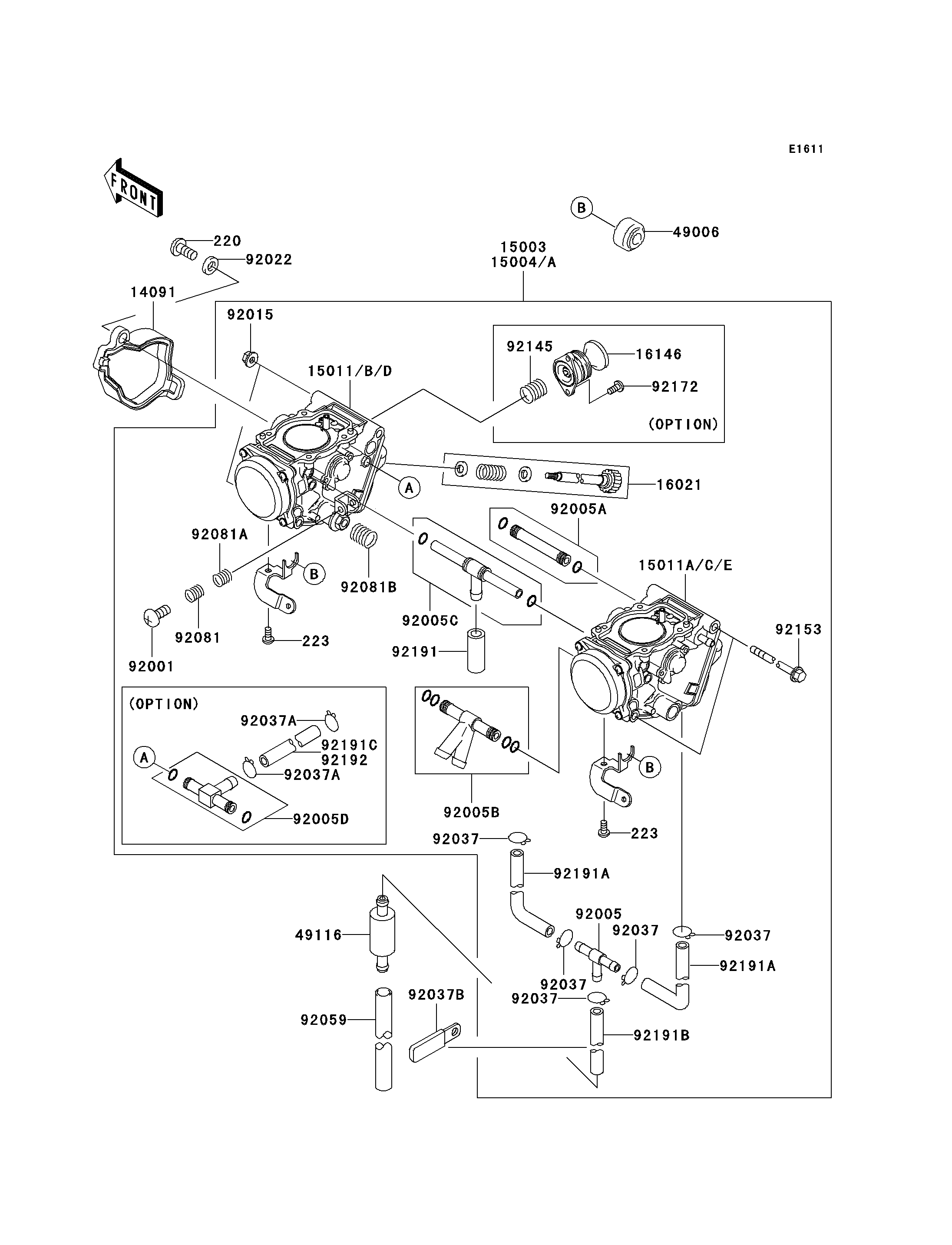

2006 Brute Force 650 4x4 - Carburetor(US)

DOWNLOAD PDF
SELECT A NEW PART
92037A
92037A
92037A
92037A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLAMP,TUBE 92037A 92037-1201 2 US (OPTION)
COVER,THROTTLE CABLE 14091 14091-1196 1 US
CARBURETOR-ASSY 15003 15003-0095 1 US
CARBURETOR-ASSY,CVKR32 15004 15004-0009 1 US (OPTION)
CARBURETOR,FR 15011 15011-0094 1 US (OPTION)
CARBURETOR,RR 15011A 15011-0095 1 US (OPTION)
CARBURETOR,FR 15011B 15011-0100 1 US
CARBURETOR,RR 15011C 15011-0101 1 US
SCREW-THROTTLE STOP 16021 16021-1238 1 US
COVER-ASSY,PRIMING 16146 16146-1225 1 US (OPTION)
BOOT,STARTER CABLE 49006 49006-1353 2 US
VALVE-ASSY 49116 49116-1126 1 US
BOLT,THROTTLE ADJUST 92001 92001-1998 1 US
FITTING,FUEL,T-TYPE 92005 92005-1112 1 US
FITTING 92005A 92005-1375 1 US
FITTING 92005B 92005-1376 1 US
FITTING 92005C 92005-1385 1 US
SCREW-PAN-CROS,4X8 220 220AA0408 1 US
SCREW-PAN-WS-CROS,4X8 223 223AA0408 4 US
FITTING 92005D 92005-1393 1 US (OPTION)
NUT,FLANGED,5MM 92015 92015-1259 2 US
WASHER,5.2X13X1 92022 92022-1380 1 US
CLAMP,TUBE 92037 92037-1201 5 US
CLAMP,L=45 92037B 92037-1539 1 US
TUBE,7X10X100 92059 92059-1736 1 US
SPRING 92081 92081-1620 1 US
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1 US
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 1 US
SPRING,PRIMING 92145 92145-1451 1 US (OPTION)
BOLT,5X143 92153 92153-1068 2 US
SCREW 92172 92172-0230 2 US (OPTION)
TUBE,7X11X25 92191 92191-1672 1 US
TUBE,4.5X8X65 92191A 92191-1673 2 US
TUBE,4.5X8X420 92191B 92191-1674 1 US
TUBE,4.5X8.5X35 92191C 92191-1676 1 US (OPTION)
