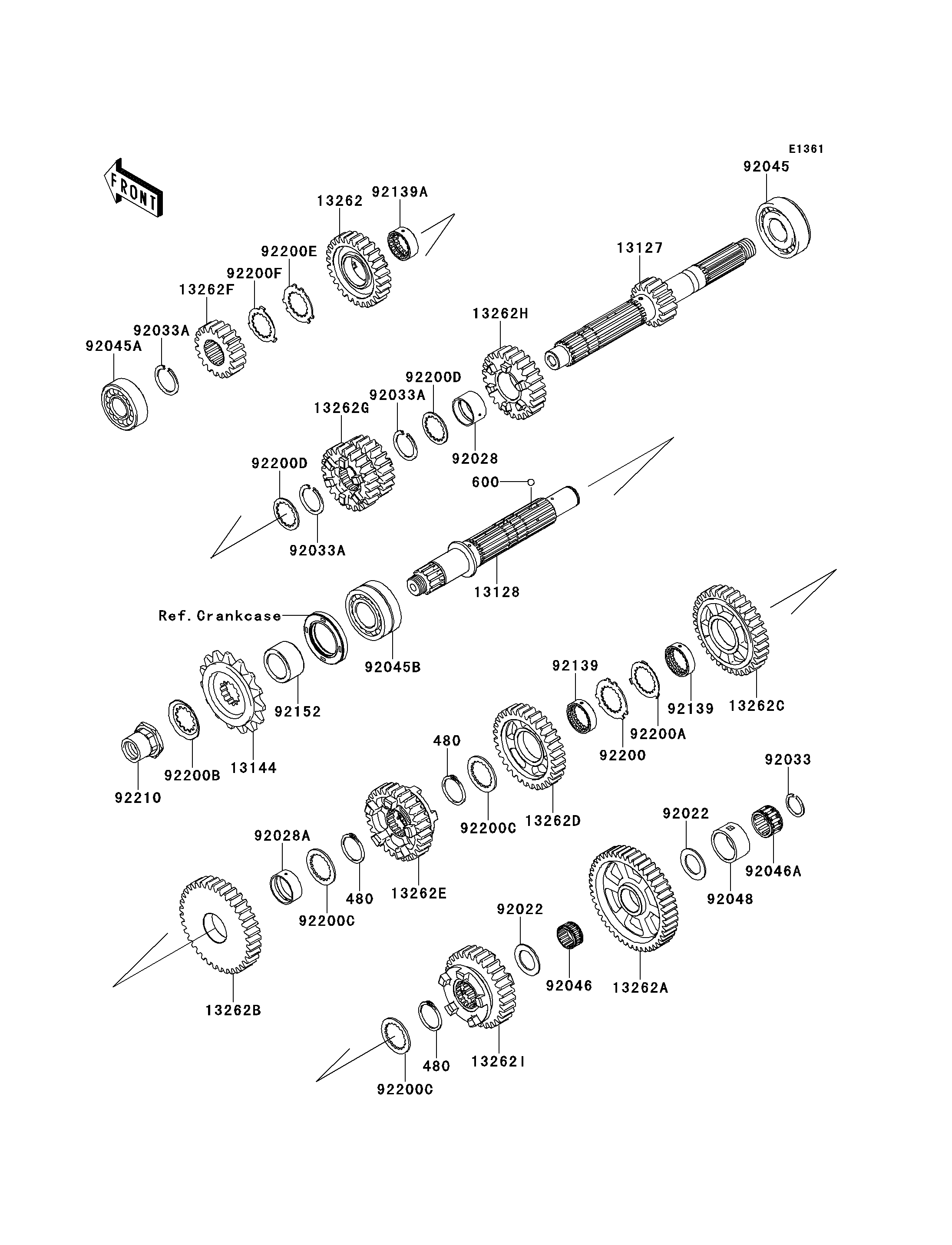

2013 NINJA® ZX™-14R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480
480
600
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
13262I
92022
92022
92028
92028A
92033
92033A
92033A
92033A
92045
92045A
92045B
92046
92046A
92048
92139
92139
92139A
92152
92200
92200A
92200B
92200C
92200C
92200C
92200D
92200D
92200E
92200F
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 480 480J2900 3
BALL-STEEL,5/32 600 600A0500 3
SHAFT-TRANSMISSION INPUT,18T 13127 13127-0646 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0677 1
SPROCKET-OUTPUT,17T 13144 13144-0040 1
GEAR,INPUT TOP,28T 13262 13262-0925 1
GEAR,OUTPUT LOW,47T 13262A 13262-0941 1
GEAR,OUTPUT 2ND,37T 13262B 13262-0942 1
GEAR,OUTPUT 3RD,34T 13262C 13262-0943 1
GEAR,OUTPUT 4TH,32T 13262D 13262-0944 1
GEAR,OUTPUT TOP,29T 13262E 13262-0945 1
GEAR,INPUT 2ND,19T 13262F 13262-0946 1
GEAR,INPUT 3RD&4TH,22T&24T 13262G 13262-0947 1
GEAR,INPUT 5TH,26T 13262H 13262-0948 1
GEAR,OUTPUT 5TH,30T 13262I 13262-0957 1
WASHER,22.3X35X1.6 92022 92022-212 2
BUSHING 92028 92028-1935 1
BUSHING 92028A 92028-1937 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,T=1.5 92033A 92033-1249 3
BEARING-BALL,830045-5SH2 92045 92045-0047 1
BEARING-BALL,DG2152RDDSH2 92045A 92045-0048 1
BEARING-BALL,DAC2857NSSH6CS9 92045B 92045-0049 1
BEARING-NEEDLE,K22X26X13 92046 92046-0018 1
BEARING-NEEDLE 92046A 92046-0609 1
RACE 92048 92048-0004 1
BUSHING 92139 92139-0255 2
BUSHING,INPUT 6TH,GEAR 92139A 92139-0256 1
COLLAR 92152 92152-0326 1
WASHER,27.5X43X1.5 92200 92200-0255 1
WASHER,27.5X39.7X1.0 92200A 92200-0256 1
WASHER,23.9X45X1.0 92200B 92200-0260 1
WASHER,TOOTHED,28X40X2 92200C 92200-1277 3
WASHER,25.5X35.5X1.5 92200D 92200-1340 2
WASHER,25.8X40.5X1.5 92200E 92200-1522 1
WASHER,25.2X37.0X1.0 92200F 92200-1523 1
NUT,20X1.5 92210 92210-0237 1
