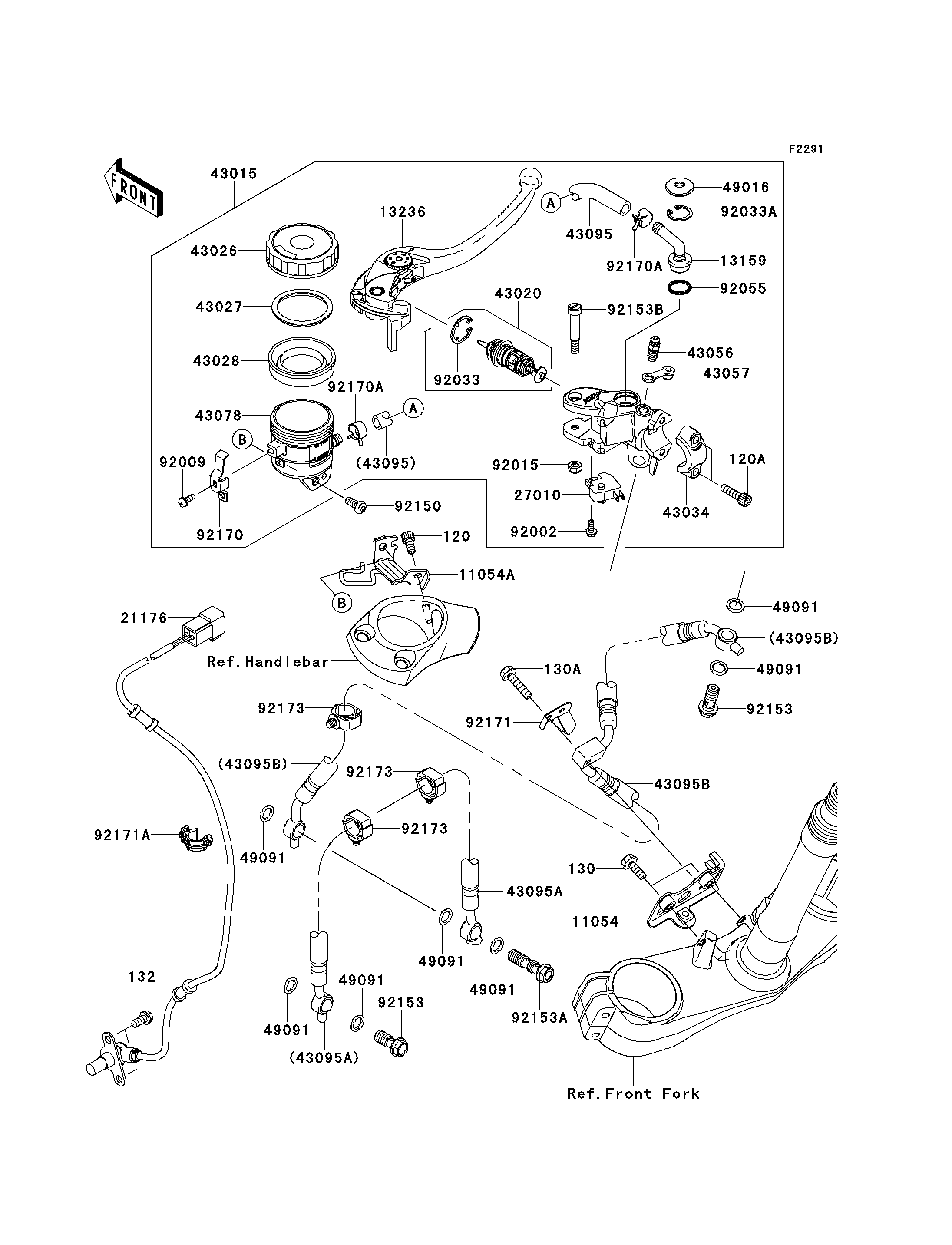

2013 NINJA® ZX™-14R - Front Master Cylinder
120
120A
130
130A
132
11054
11054A
13159
13236
21176
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
49091
49091
49091
92002
92009
92015
92033
92033A
92055
92150
92153
92153
92153A
92153B
92170
92170A
92170A
92171
92171A
92173
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BOLT-SOCKET,6X22 | 120A | 120CB0622 | 2 | ||
| BOLT-FLANGED,6X18 | 130 | 130BA0618 | 2 | ||
| BOLT-FLANGED,6X25 | 130A | 130BB0625 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 2 | ||
| BRACKET,JOINT | 11054 | 11054-0029 | 1 | ||
| BRACKET,RESERVOIR TANK,FR | 11054A | 11054-0636 | 1 | ||
| CONNECTOR | 13159 | 13159-1061 | 1 | ||
| LEVER-COMP,FRONT BRAKE | 13236 | 13236-0103 | 1 | ||
| SENSOR,SPEED,FR | 21176 | 21176-0051 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-0025 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-0150 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-0010 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-0056 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-1056 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| RESERVOIR | 43078 | 43078-1099 | 1 | ||
| HOSE-BRAKE,FR MASTER CYLINDER | 43095 | 43095-0040 | 1 | ||
| HOSE-BRAKE,FR | 43095A | 43095-0400 | 1 | ||
| HOSE-BRAKE,M/C-CALIPER | 43095B | 43095-0677 | 1 | ||
| COVER-SEAL | 49016 | 49016-1147 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 7 | ||
| BOLT,SCREW,4X12 | 92002 | 92002-1323 | 1 | ||
| SCREW | 92009 | 92009-1570 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
| RING-SNAP | 92033 | 92033-0034 | 1 | ||
| RING-SNAP,20.5MM | 92033A | 92033-1186 | 1 | ||
| RING-O,14.8X2.4 | 92055 | 92055-0741 | 1 | ||
| BOLT,SOCKET,6X14 | 92150 | 92150-1836 | 1 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
| BOLT,OIL,L=37 | 92153A | 92153-0628 | 1 | ||
| BOLT,LEVER | 92153B | 92153-0868 | 1 | ||
| CLAMP | 92170 | 92170-1090 | 1 | ||
| CLAMP,HOSE | 92170A | 92170-1091 | 2 | ||
| CLAMP | 92171 | 92171-0624 | 1 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-1703 | 3 | ||
| CLAMP | 92173 | 92173-0868 | 3 |
