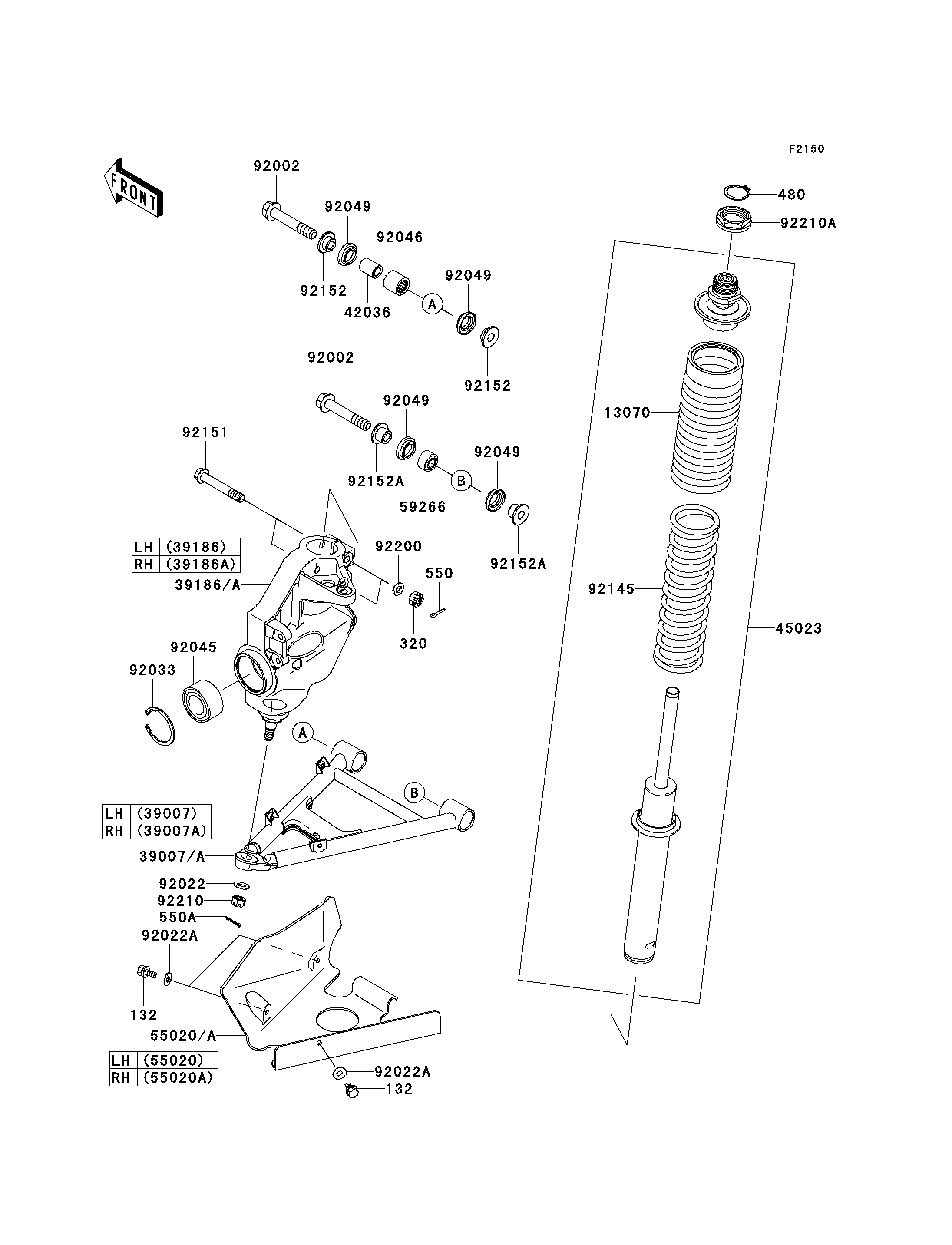

Parts Diagrams |
132
132
320
480
550
550A
13070
39007
39007A
39186
39186A
42036
45023
55020
55020A
59266
92002
92002
92022
92022A
92022A
92033
92045
92046
92049
92049
92049
92049
92145
92151
92152
92152
92152A
92152A
92200
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X12 | 132 | 132BB0612 | 6 | ||
NUT-CASTLE | 320 | 320BA1000 | 4 | ||
CIRCLIP-TYPE-C,32MM | 480 | 480J3200 | 2 | ||
PIN-COTTER,2.0X15 | 550 | 550AA2015 | 4 | ||
PIN-COTTER,3.0X25 | 550A | 550AA3025 | 2 | ||
GUIDE,STRUT | 13070 | 13070-1383 | 2 | ||
ARM-SUSP,LH | 39007 | 39007-0058 | 1 | ||
ARM-SUSP,RH | 39007A | 39007-0059 | 1 | ||
KNUCKLE ASSY,FR,LH | 39186 | 39186-0041 | 1 | ||
KNUCKLE ASSY,FR,RH | 39186A | 39186-0042 | 1 | ||
SLEEVE,12X20X26.7 | 42036 | 42036-1365 | 2 | ||
STRUT | 45023 | 45023-0004 | 2 | ||
GUARD,FRONT AXLE,LH | 55020 | 55020-1768 | 1 | ||
GUARD,FRONT AXLE,RH | 55020A | 55020-1769 | 1 | ||
JOINT-BALL | 59266 | 59266-1118 | 2 | ||
BOLT,FLANGED,12X67 | 92002 | 92002-1861 | 4 | ||
WASHER,12.3X22X1.6 | 92022 | 92022-1065 | 2 | ||
WASHER,7X16X1.2 | 92022A | 92022-1344 | 6 | ||
RING-SNAP,55MM | 92033 | 92033-1274 | 2 | ||
BEARING-BALL,30BWD08ACA13 | 92045 | 92045-0095 | 2 | ||
BEARING-NEEDLE,TA202725ZE | 92046 | 92046-1290 | 2 | ||
SEAL-OIL,MF020N3 | 92049 | 92049-1539 | 8 | ||
SPRING,STRUT,K=10.8N/MM | 92145 | 92145-0009 | 2 | ||
BOLT,FLANGED,10X65 | 92151 | 92151-1709 | 4 | ||
COLLAR | 92152 | 92152-1295 | 4 | ||
COLLAR | 92152A | 92152-1296 | 4 | ||
WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 4 | ||
NUT,CASTLE,12MM | 92210 | 92210-0395 | 2 | ||
NUT,FLANGED,35MM | 92210A | 92210-1226 | 2 |
BOLT-FLANGED-SMALL,6X12 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT-CASTLE | |
REF # | 320 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,32MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-COTTER,3.0X25 | |
REF # | 550A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE,STRUT | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-SUSP,LH | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,RH | |
REF # | 39007A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNUCKLE ASSY,FR,LH | |
REF # | 39186 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNUCKLE ASSY,FR,RH | |
REF # | 39186A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,12X20X26.7 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STRUT | |
REF # | 45023 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUARD,FRONT AXLE,LH | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FRONT AXLE,RH | |
REF # | 55020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X67 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,12.3X22X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,7X16X1.2 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RING-SNAP,55MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,30BWD08ACA13 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA202725ZE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,MF020N3 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SPRING,STRUT,K=10.8N/MM | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X65 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.5X19X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CASTLE,12MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,35MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
