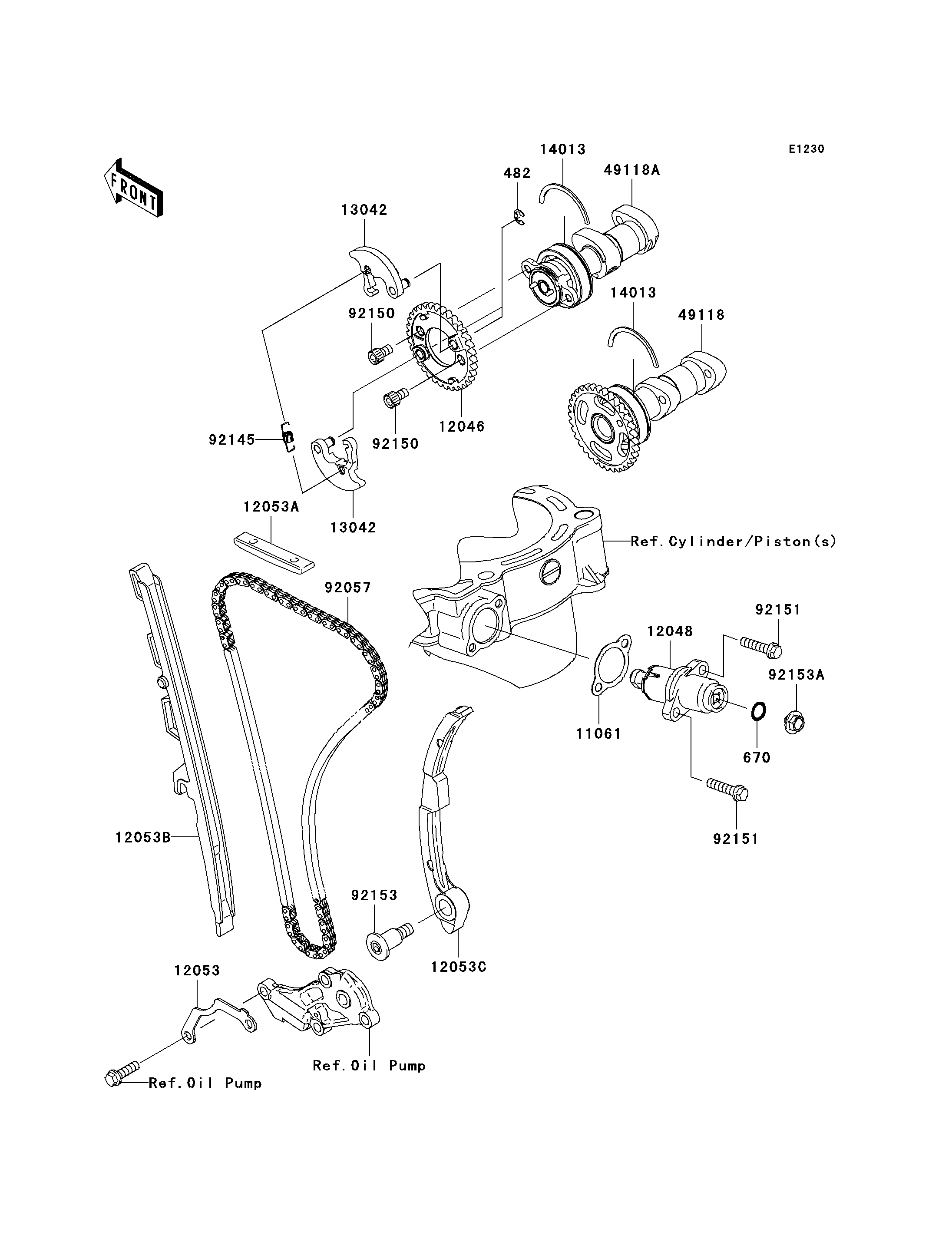

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
482
670
11061
12046
12048
12053
12053A
12053B
12053C
13042
13042
14013
14013
49118
49118A
92057
92145
92150
92150
92151
92151
92153
92153A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-E | 482 | 482J5000 | 2 | ||
O RING | 670 | 670D2010 | 1 | ||
GASKET | 11061 | 11061-0260 | 1 | ||
SPROCKET,34T | 12046 | 12046-0043 | 1 | ||
TENSIONER-ASSY | 12048 | 12048-0021 | 1 | ||
GUIDE-CHAIN,CAM CHAIN STOPPER | 12053 | 12053-0031 | 1 | ||
GUIDE-CHAIN,UPP | 12053A | 12053-0051 | 1 | ||
GUIDE-CHAIN,FR | 12053B | 12053-0064 | 1 | ||
GUIDE-CHAIN,RR | 12053C | 12053-0065 | 1 | ||
WEIGHT | 13042 | 13042-0005 | 2 | ||
RING-POSITION | 14013 | 14013-0001 | 2 | ||
CAMSHAFT-COMP,INTAKE | 49118 | 49118-0101 | 1 | ||
CAMSHAFT-COMP,EXHAUST | 49118A | 49118-0102 | 1 | ||
CHAIN,98XRH2010-124M | 92057 | 92057-0035 | 1 | ||
SPRING | 92145 | 92145-0541 | 1 | ||
BOLT,SOCKET,6X10 | 92150 | 92150-1650 | 2 | ||
BOLT,FLANGED-SMALL,6X25 | 92151 | 92151-1930 | 2 | ||
BOLT,8X29.5 | 92153 | 92153-0717 | 1 | ||
BOLT,6X6 | 92153A | 92153-1380 | 1 |
CIRCLIP-TYPE-E | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,34T | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY | |
REF # | 12048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,CAM CHAIN STOPPER | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,UPP | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR | |
REF # | 12053C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WEIGHT | |
REF # | 13042 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-POSITION | |
REF # | 14013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAMSHAFT-COMP,INTAKE | |
REF # | 49118 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-COMP,EXHAUST | |
REF # | 49118A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,98XRH2010-124M | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X10 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED-SMALL,6X25 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X29.5 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X6 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
