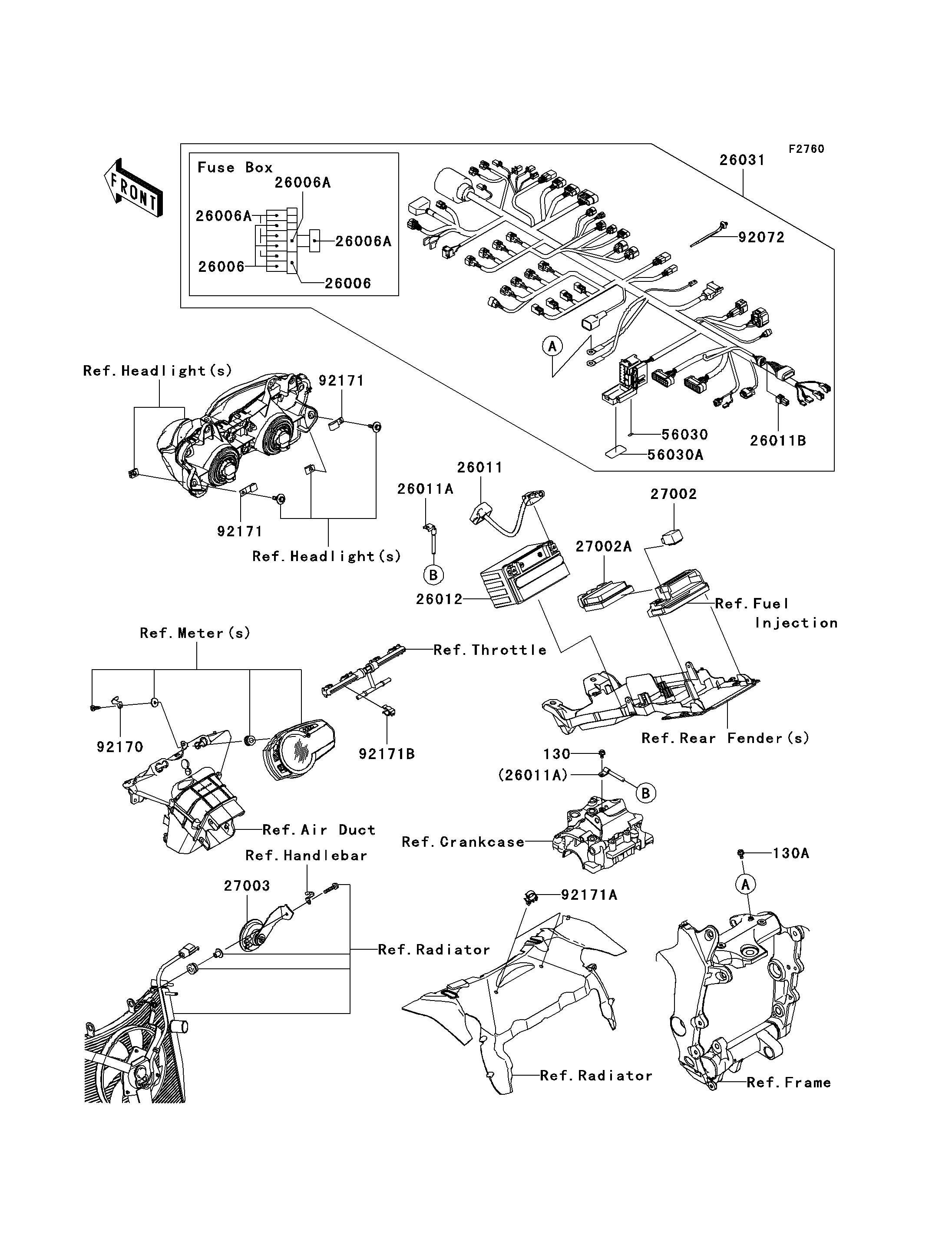

2012 NINJA® ZX™-6R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
26006
26006
26006A
26006A
26006A
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
92072
92170
92171
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 5
WIRE-LEAD,BATTERY(+) 26011 26011-0210 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0211 1
WIRE-LEAD,CAP 26011B 26011-0271 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0088 1
HARNESS,MAIN 26031 26031-0874 1
RELAY-ASSY,SIGNAL LAMP 27002 27002-0005 1
RELAY-ASSY 27002A 27002-0007 1
HORN 27003 27003-0061 1
LABEL,FUSE BOX 56030 56030-0139 1
LABEL,FUSE BOX 56030A 56030-0185 1
BAND 92072 92072-1392 1
CLAMP 92170 92170-1577 1
CLAMP 92171 92171-0305 2
CLAMP 92171A 92171-0782 2
CLAMP 92171B 92171-0974 1
