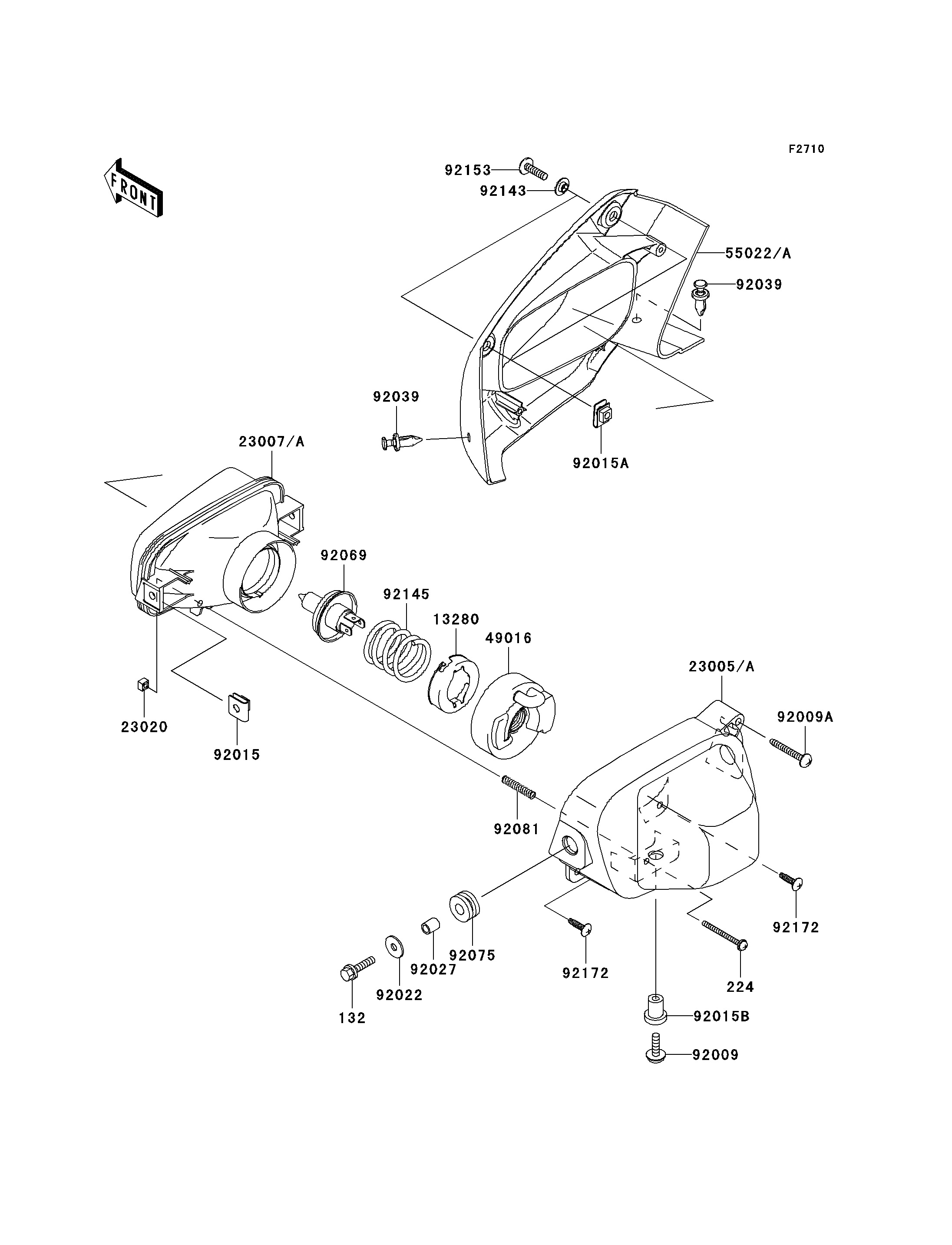

2006 Brute Force 650 4x4 - Headlight(s)
132
224
13280
23005
23005A
23007
23007A
23020
49016
55022
55022A
92009
92009A
92015
92015A
92015B
92022
92027
92039
92039
92069
92075
92081
92143
92145
92153
92172
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X25 | 132 | 132BA0625 | 4 | ||
SCREW-PAN-WP-CROS,4X45 | 224 | 224AA0445 | 2 | ||
HOLDER,BULB SETTING | 13280 | 13280-1198 | 2 | ||
BODY-COMP-HEAD LAMP,LH | 23005 | 23005-1180 | 1 | ||
BODY-COMP-HEAD LAMP,RH | 23005A | 23005-1181 | 1 | ||
LENS-COMP,HEAD LAMP,LH | 23007 | 23007-1389 | 1 | ||
LENS-COMP,HEAD LAMP,RH | 23007A | 23007-1390 | 1 | ||
NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 2 | ||
COVER-SEAL,HEAD LAMP | 49016 | 49016-1213 | 2 | ||
COVER-HEAD LAMP,LH,F.BLACK | 55022 | 55022-0017-6Z | 1 | ||
COVER-HEAD LAMP,RH,F.BLACK | 55022A | 55022-0018-6Z | 1 | ||
SCREW,6X22 | 92009 | 92009-1664 | 2 | ||
SCREW,TAPPING,5X40 | 92009A | 92009-1928 | 2 | ||
NUT,6MM | 92015 | 92015-1094 | 4 | ||
NUT,6MM | 92015A | 92015-1602 | 4 | ||
NUT,RUBBER,6MM | 92015B | 92015-1692 | 2 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-125 | 4 | ||
COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
RIVET | 92039 | 92039-1229 | 4 | ||
BULB,12V 45/45W,T15 | 92069 | 92069-1114 | 2 | ||
DAMPER | 92075 | 92075-1690 | 4 | ||
SPRING,FOCUS ADJUST | 92081 | 92081-1896 | 2 | ||
COLLAR | 92143 | 92143-1087 | 4 | ||
SPRING,BULB SETTING | 92145 | 92145-1346 | 2 | ||
BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 4 | ||
SCREW | 92172 | 92172-1072 | 4 |
