Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

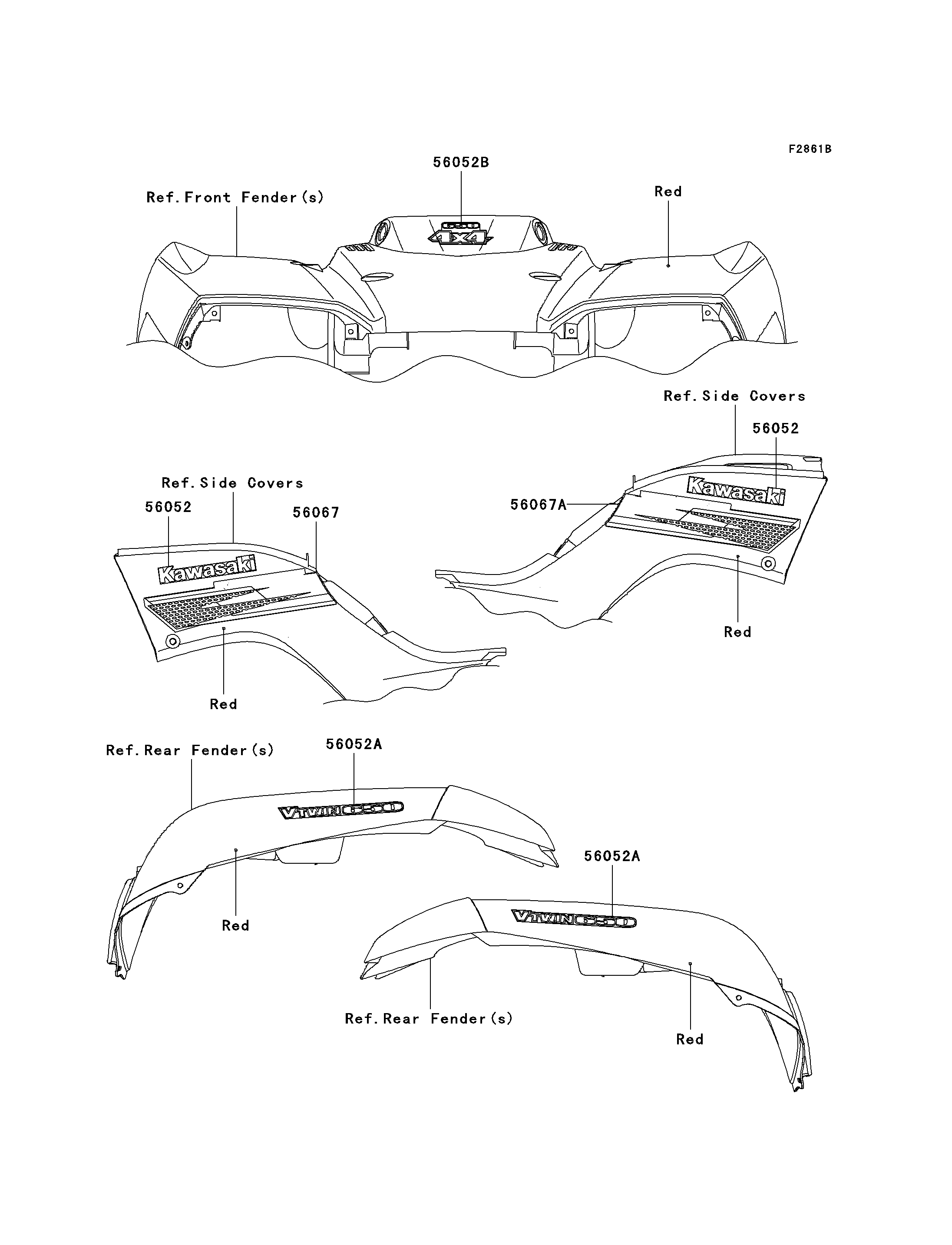

56052
56052
56052A
56052A
56052B
56067
56067A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,KAWASAKI 56052 56052-0145 2
MARK,RR FENDER,V TWIN 650 56052A 56052-0893 2
MARK,FR FENDER,650 4X4 56052B 56052-0906 1
PATTERN,SIDE COVER,LH 56067 56067-0915 1
PATTERN,SIDE COVER,RH 56067A 56067-0916 1
