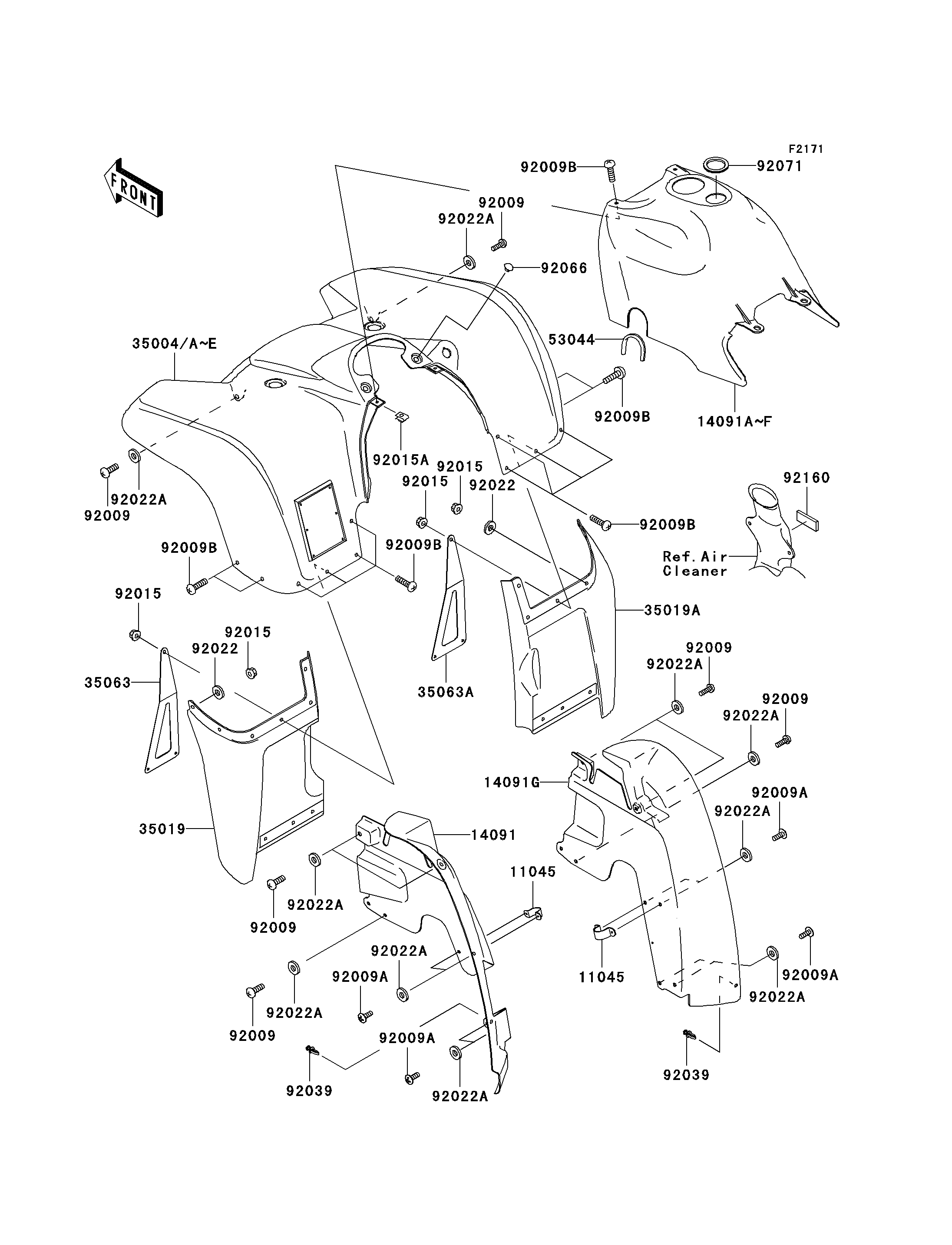

2006 Prairie 360 4X4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
14091
14091C
14091D
14091G
35004B
35004C
35019
35019A
35063
35063A
53044
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92015
92015
92015
92015
92015A
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92039
92039
92066
92071
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FENDER 11045 11045-1882 2
COVER,INNER FLAP,LH 14091 14091-7521 1
COVER,FUEL TANK,A.RED 14091C 14091-7525-260 1
COVER,FUEL TANK,W.GREEN 14091D 14091-7525-286 1
COVER,INNER FLAP,RH 14091G 14091-7527 1
FENDER-FRONT,A.RED 35004B 35004-1378-260 1
FENDER-FRONT,W.GREEN 35004C 35004-1378-286 1
FLAP,FR,LH,F.BLACK 35019 35019-0021-6Z 1
FLAP,FR,RH,F.BLACK 35019A 35019-0022-6Z 1
STAY,FRONT FENDER,LH 35063 35063-7506 1
STAY,FRONT FENDER,RH 35063A 35063-7507 1
TRIM,L=150 53044 53044-1303 1
SCREW,TAPPING,6X16 92009 92009-1166 8
SCREW,TAPPING,5X14 92009A 92009-1197 8
SCREW,6X16 92009B 92009-1621 14
NUT,FLANGED,6MM 92015 92015-1367 12
NUT,CLAMP,6MM 92015A 92015-1678 2
WASHER,6.5X16X1.0 92022 92022-1093 10
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 16
RIVET 92039 92039-1229 2
PLUG 92066 92066-1485 2
GROMMET,FUEL TANK COVER 92071 92071-7503 1
DAMPER 92160 92160-1834 1
