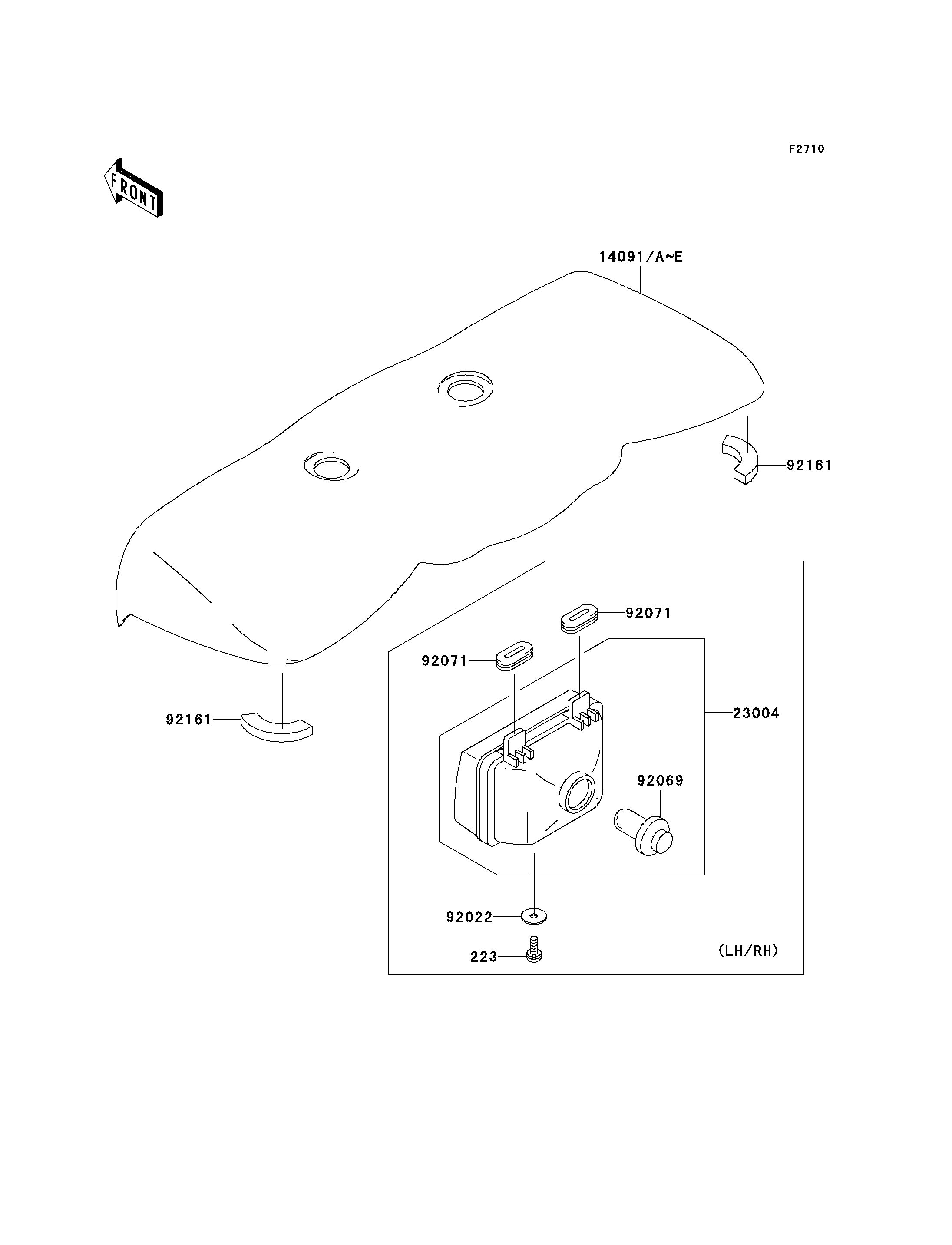

223
14091B
14091C
23004
92022
92069
92071
92071
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WS-CROS,4X14 223 223AA0414 2
COVER,HEAD LAMP,A.RED 14091B 14091-7502-260 1
COVER,HEAD LAMP,W.GREEN 14091C 14091-7502-286 1
LAMP-HEAD 23004 23004-7501 2
WASHER,4.5X16X1 92022 92022-1950 2
BULB,12V 30/30W 92069 92069-7501 2
GROMMET 92071 92071-7501 4
DAMPER 92161 92161-7506 2
