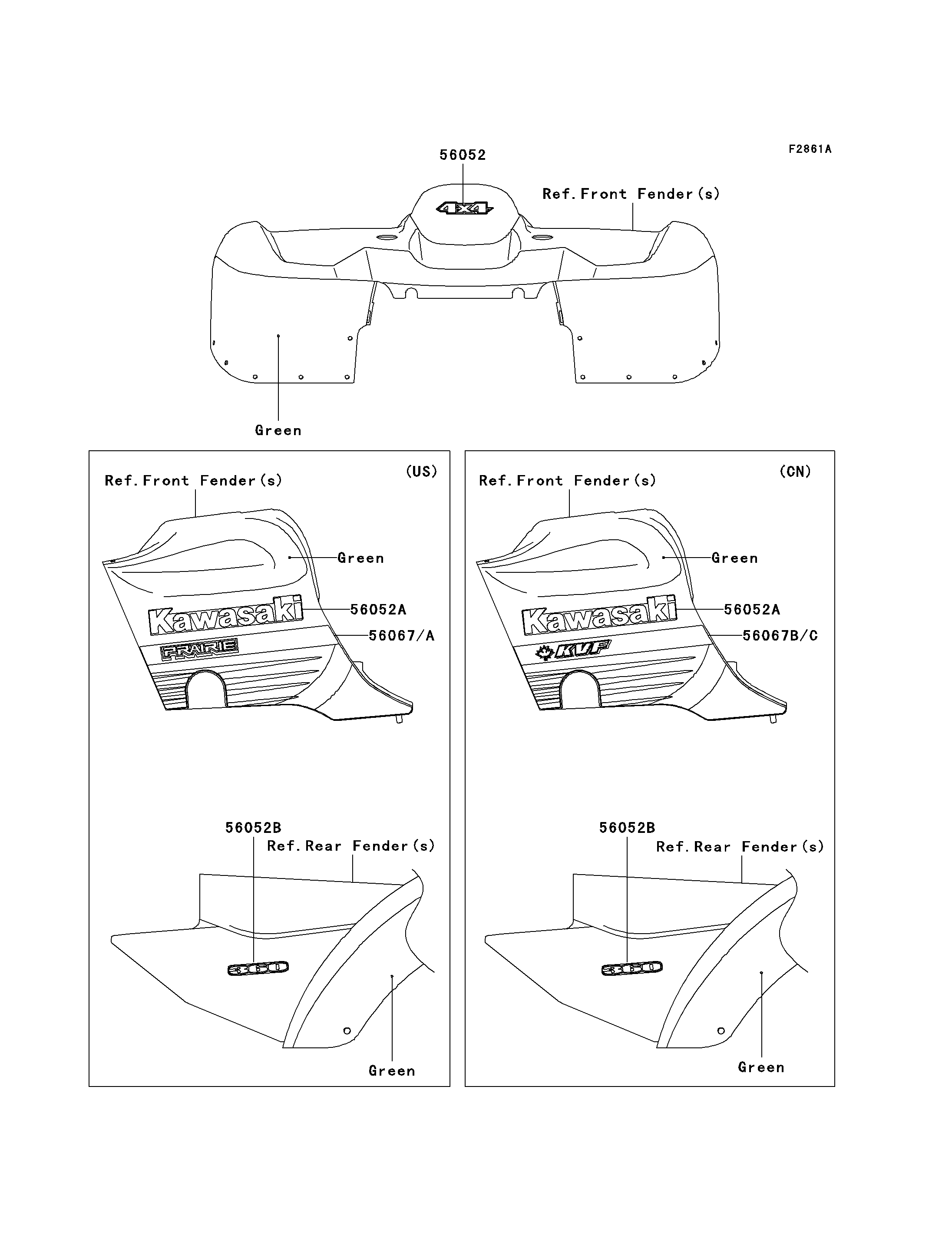

56052
56052A
56052A
56052B
56052B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,4X4 56052 56052-0544 1
MARK,FUEL TANK COVER,KAWASAKI 56052A 56052-0683 2
MARK,RR FENDER,360 56052B 56052-0685 2
PATTERN,FUEL TANK COVER,LH 56067 56067-0235 1 US
PATTERN,FUEL TANK COVER,RH 56067A 56067-0236 1 US
PATTERN,FUEL TANK COVER,LH 56067B 56067-0239 1 CN
PATTERN,FUEL TANK COVER,RH 56067C 56067-0240 1 CN
