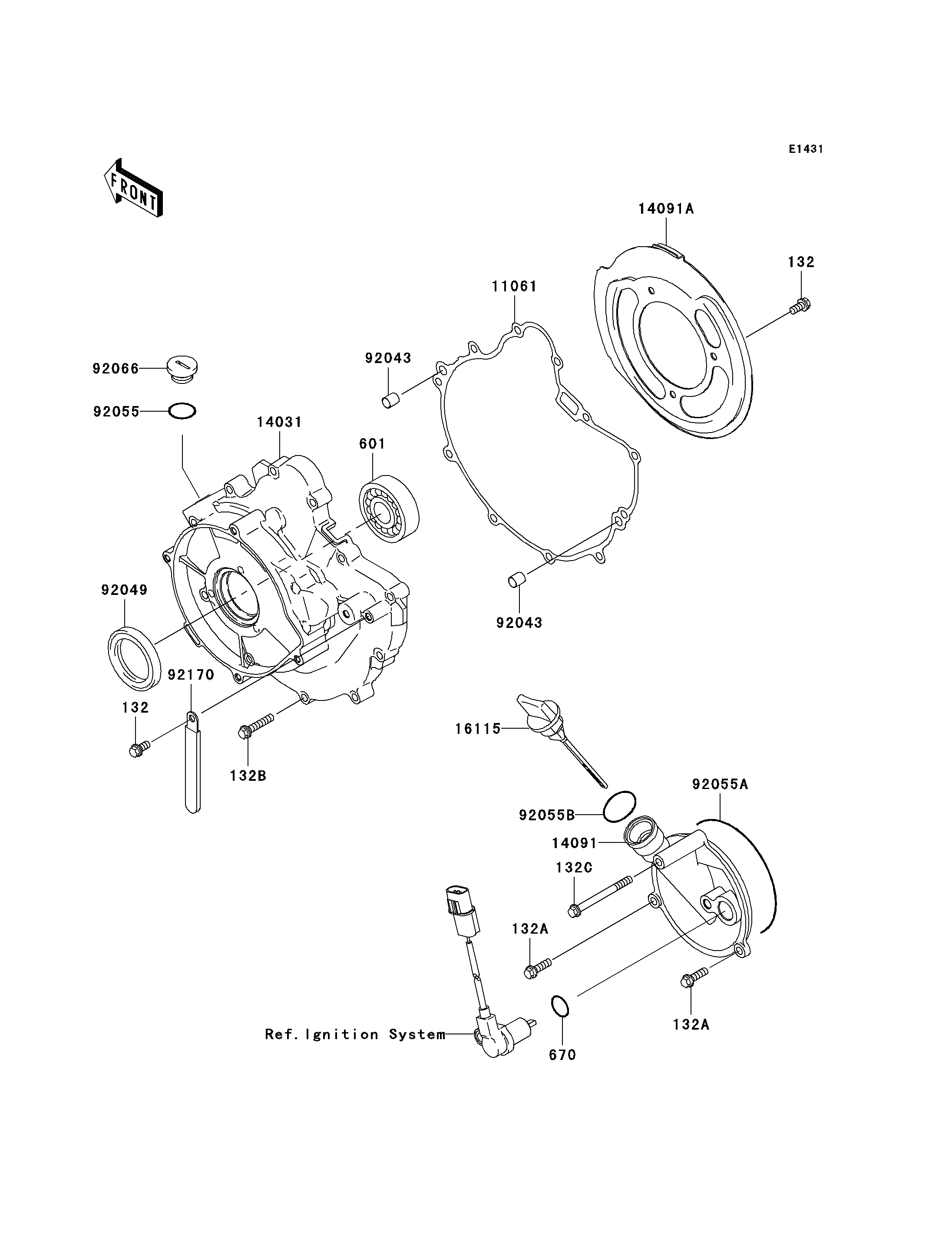

Parts Diagrams |
132
132
132A
132A
132B
132C
601
670
11061
14031
14091
14091A
16115
92043
92043
92049
92055
92055A
92055B
92066
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X12 | 132 | 132BD0612 | 4 | ||
BOLT-FLANGED-SMALL,6X20 | 132A | 132BD0620 | 2 | ||
BOLT-FLANGED-SMALL,6X30 | 132B | 132BD0630 | 11 | ||
BOLT-FLANGED-SMALL,6X65 | 132C | 132BD0665 | 1 | ||
BEARING-BALL,#6004 | 601 | 601A6004 | 1 | ||
O RING | 670 | 670D2018 | 1 | ||
GASKET,GENERATOR COVER | 11061 | 11061-1086 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1389 | 1 | ||
COVER | 14091 | 14091-1365 | 1 | ||
COVER,BELT CONVERTER | 14091A | 14091-1571 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1072 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
SEAL-OIL,HTC 28X45X7 | 92049 | 92049-1576 | 1 | ||
RING-O,20X2 | 92055 | 92055-1146 | 1 | ||
RING-O,99.5X2.0 | 92055A | 92055-1632 | 1 | ||
RING-O,20X3 | 92055B | 92055-2185 | 1 | ||
PLUG,COVER | 92066 | 92066-1163 | 1 | ||
CLAMP | 92170 | 92170-1925 | 1 |
BOLT-FLANGED-SMALL,6X12 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X20 | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X30 | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X65 | |
REF # | 132C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6004 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,GENERATOR COVER | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-GENERATOR | |
REF # | 14031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,BELT CONVERTER | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-OIL FILLER | |
REF # | 16115 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,HTC 28X45X7 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,20X2 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,99.5X2.0 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,20X3 | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,COVER | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
