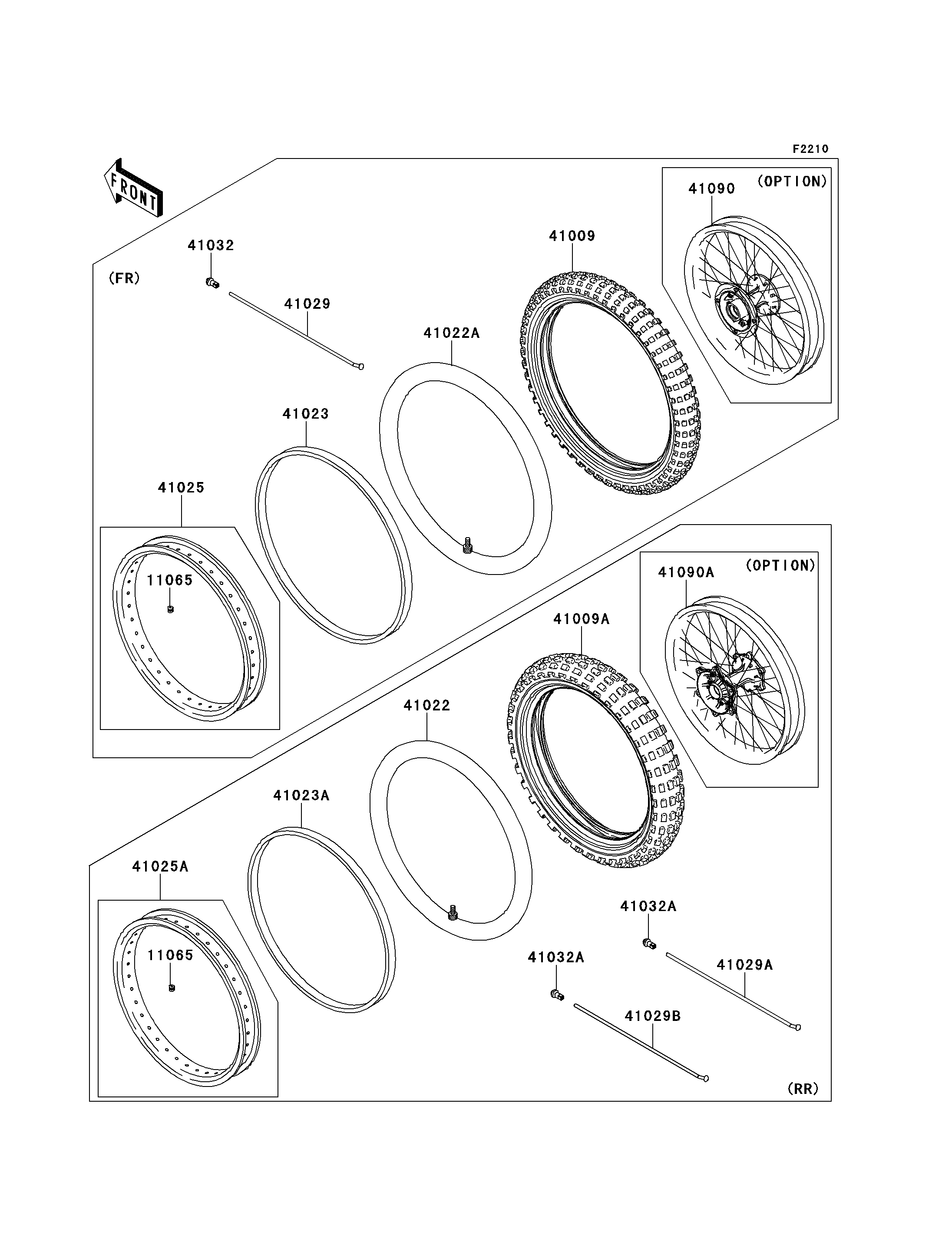

Parts Diagrams |
11065
11065
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41029B
41032
41032A
41032A
41090
41090A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,BEAD STOPPER | 11065 | 11065-0384 | 4 | ||
| TIRE,FR,3.00-21 51P,D605 FG(D) | 41009 | 41009-0025 | 1 | ||
| TIRE,RR,4.60-18 63P,D605G(D) | 41009A | 41009-0026 | 1 | ||
| TUBE-TIRE,120/80-18(D) | 41022 | 41022-0004 | 1 | ||
| TUBE-TIRE,80/100-21(D) | 41022A | 41022-1244 | 1 | ||
| BAND-RIM,21XWM1.60-1.85(D) | 41023 | 41023-1144 | 1 | ||
| BAND-RIM,18XWM/MT 1.85-2.15(D) | 41023A | 41023-1145 | 1 | ||
| RIM,FR,1.60X21,SILVER | 41025 | 41025-0318-WA | 1 | ||
| RIM,RR,2.15X18,SILVER | 41025A | 41025-0320-WA | 1 | ||
| SPOKE-INNER,FR,228MMX165D | 41029 | 41029-0004 | 36 | ||
| SPOKE-INNER,RR,LH,193.1MMX165D | 41029A | 41029-0047 | 18 | ||
| SPOKE-INNER,RR,RH,189.1MMX160D | 41029B | 41029-0048 | 18 | ||
| NIPPLE-SPOKE | 41032 | 41032-0005 | 36 | ||
| NIPPLE-SPOKE | 41032A | 41032-0007 | 36 | ||
| WHEEL-SUB ASSY,FR,SILVER | 41090 | 41090-0041-WA | 1 | (OPTION) | |
| WHEEL-SUB ASSY,RR,SILVER | 41090A | 41090-0042-WA | 1 | (OPTION) |
