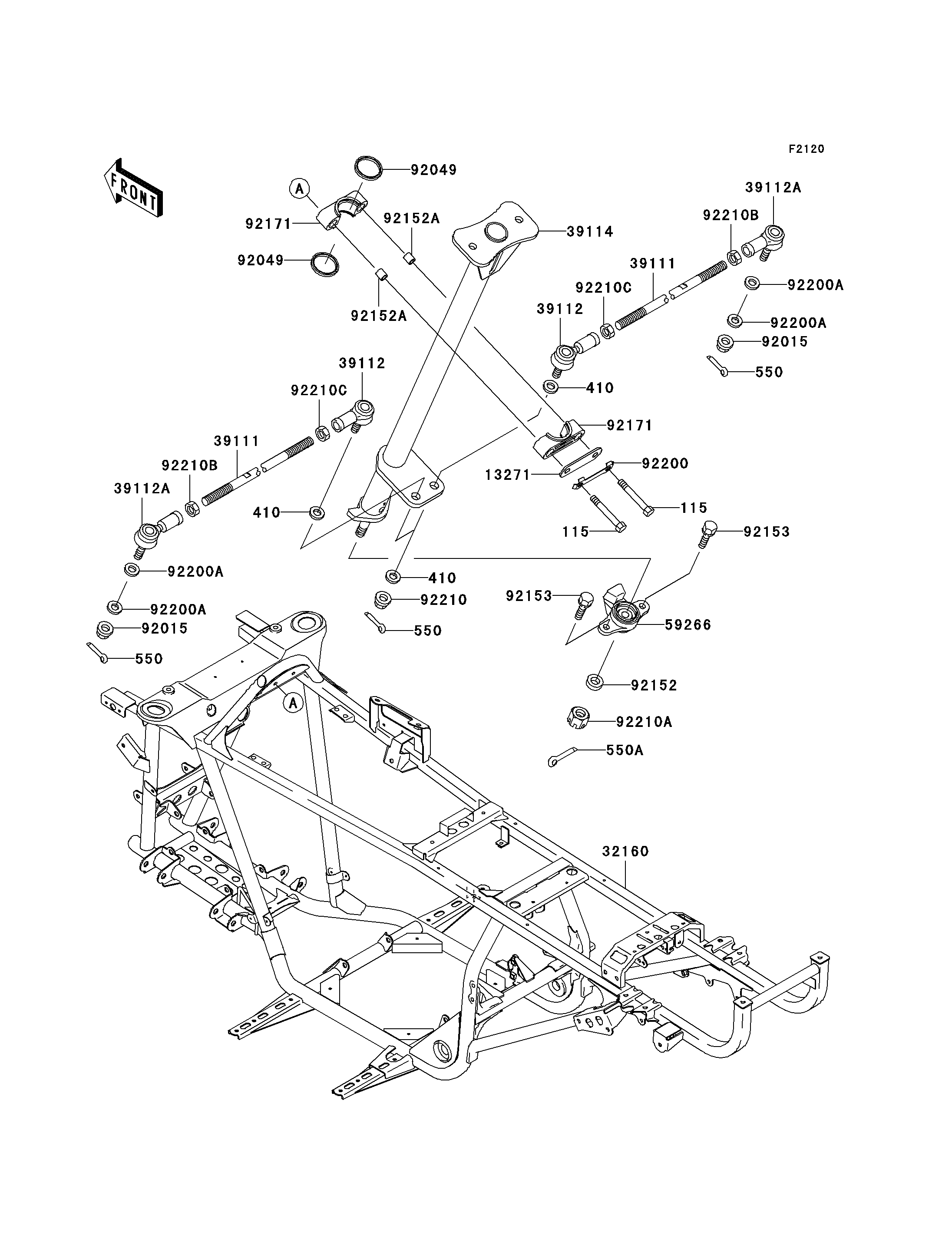

2007 Prairie 360 - Frame

DOWNLOAD PDF
SELECT A NEW PART
115
115
410
410
410
550
550
550
550A
13271
32160
39111
39111
39112
39112
39112A
39112A
39114
59266
92015
92015
92049
92049
92152
92152A
92152A
92153
92153
92171
92171
92200
92200A
92200A
92200A
92200A
92210
92210A
92210B
92210B
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X55 115 115CB0855 2
WASHER-PLAIN-SMALL,12MM 410 410AA1200 4
PIN-COTTER,2.0X15 550 550AA2015 4
PIN-COTTER,3.0X25 550A 550AA3025 1
PLATE,STEERING,CLAMP 13271 13271-7506 1
FRAME-COMP 32160 32160-7501 1
ROD-TIE 39111 39111-7501 2
RODEND-TIE 39112 39112-7501 2
RODEND-TIE 39112A 39112-7504 2
SHAFT-COMP-STRG 39114 39114-7503 1
JOINT-BALL 59266 59266-1125 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 2
SEAL-OIL,SR31.8X37.5X3.8LR 92049 92049-7501 2
COLLAR,12X21.3X7 92152 92152-1351 1
COLLAR,9.1X13.95X42 92152A 92152-7501 2
BOLT,8X30 92153 92153-1065 2
CLAMP,STEERING 92171 92171-7501 2
WASHER,STEERING CLAMP 92200 92200-0384 1
WASHER,12.2X22X1.5 92200A 92200-7502 4
NUT,LOCK,12MM 92210 92210-1249 2
NUT,12MM 92210A 92210-7501 1
NUT,LH THREAD 92210B 92210-7502 2
NUT,RH THREAD 92210C 92210-7503 2
