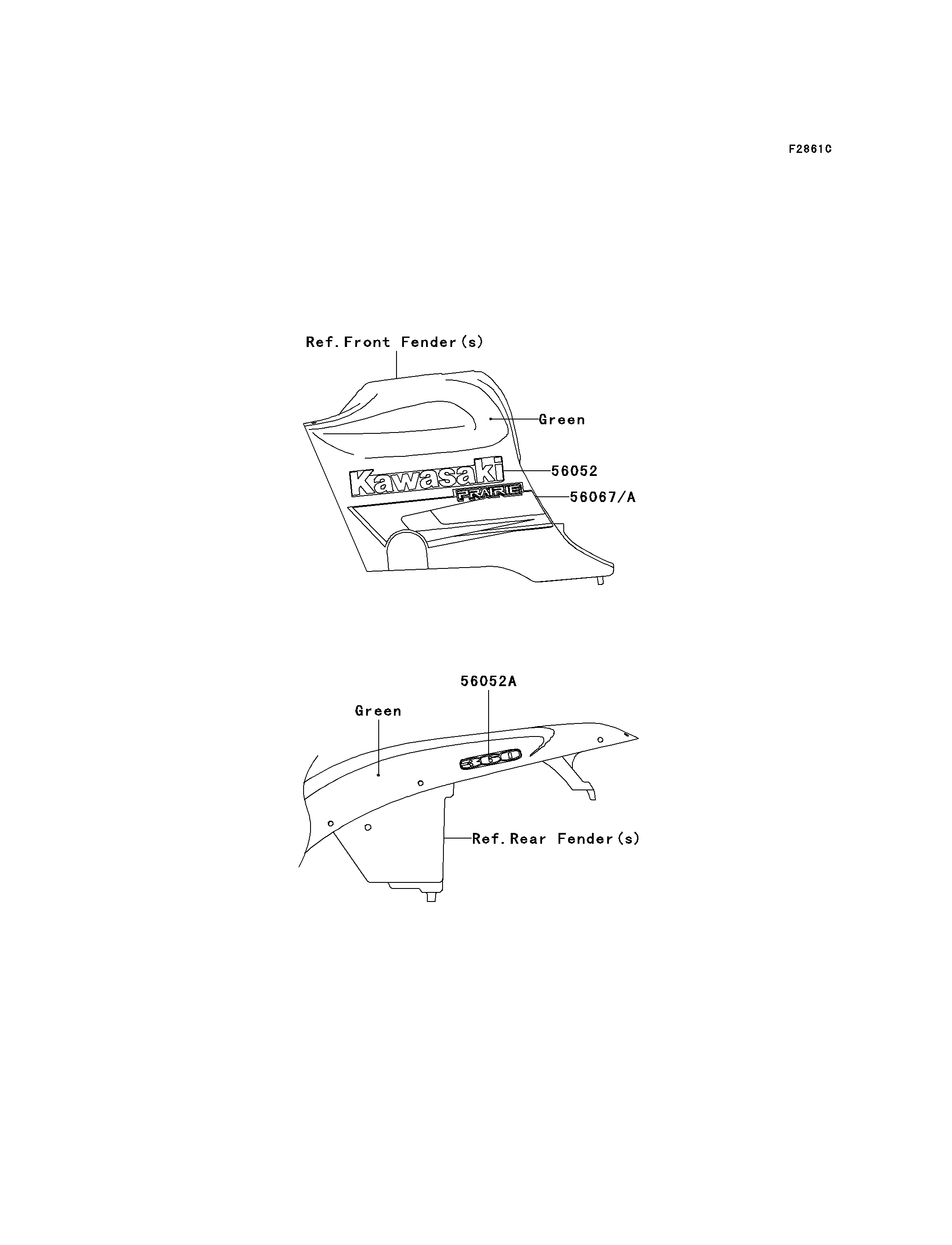

56052
56052A
56067
56067A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK COVER,KAWASAKI 56052 56052-0683 2
MARK,RR FENDER,360 56052A 56052-0685 2
PATTERN,FUEL TANK COVER,LH 56067 56067-0889 1
PATTERN,FUEL TANK COVER,RH 56067A 56067-0890 1
