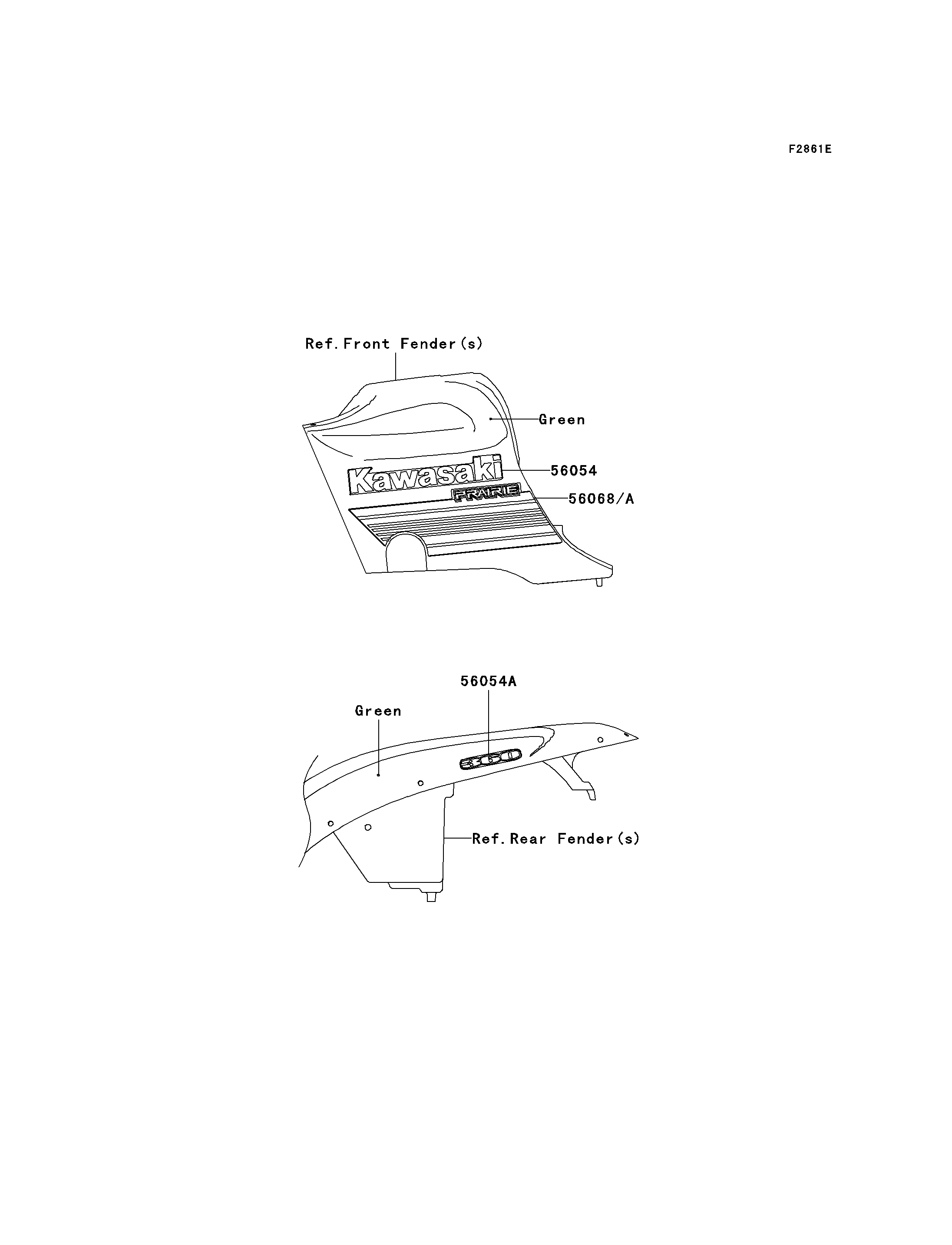

56054
56054A
56068
56068A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK COVER,KAWASAKI 56054 56054-0084 2
MARK,RR FENDER,360 56054A 56054-0086 2
PATTERN,FUEL TANK COVER,LH 56068 56068-0450 1
PATTERN,FUEL TANK COVER,RH 56068A 56068-0451 1
