KX FI Calibration Kit (Handheld)

Item # 99999-0527

MSRP $775.45
SHIPPED TO A DEALERSHIP
DUE TO SHIPPING RESTRICTIONS, THIS ITEM CAN ONLY BE SHIPPED TO A DEALERSHIP.

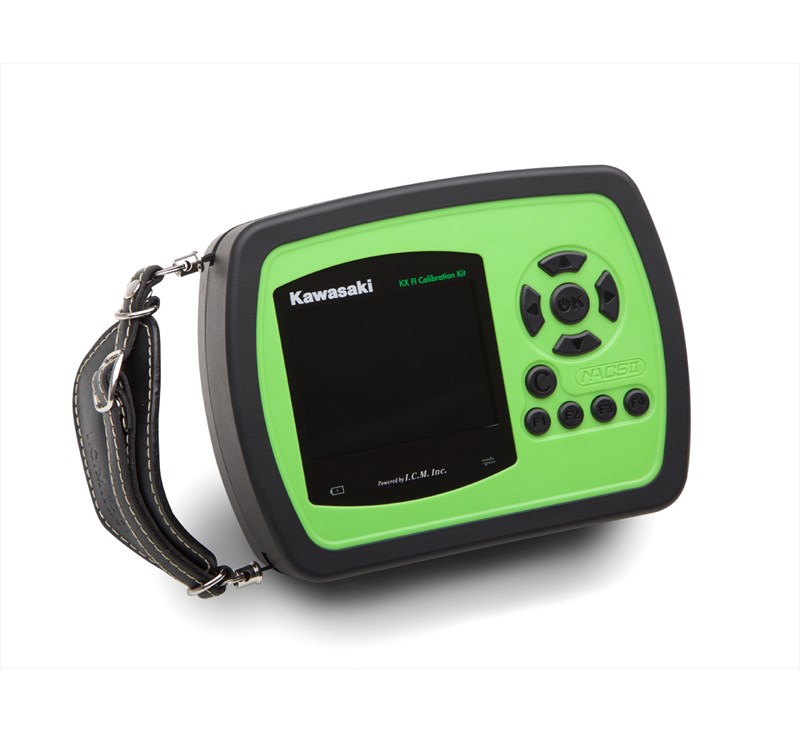

The KX FI Calibration Kit features a handheld KX FI Calibration Controller which enables riders to adjust engine characteristics, by rewriting actual data maps, to suit their preference
  • Use without a PC: simply plug the KX FI Calibration Controller in the engine’s ECU
  • Built-in color LCD screen with easy-to-use interface
  • SD card compatible for data transfer of maps between the controller and a PC
  • Seven preset settings for easy ECU adjustment to suit track conditions
  • ECU maps for fuel injection volume and ignition timing based on throttle position and rpm
  • The KX FI Calibration Controller displays the status of a running engine when connected to the ECU
  • Water-resistant

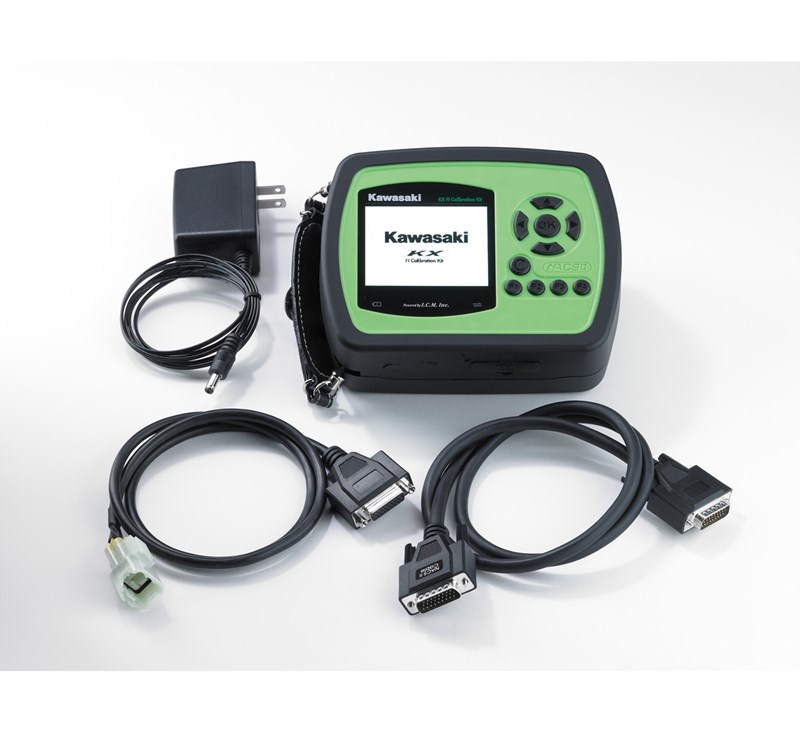

  • Includes transfer and diagnostic cables, SD memory card, user manual, and carrying case
  • Requires Wire Harness (26011-0933) and Bracket (11056-0505) to operate
  • Fits KX 250F (13-16), KX 450F (09-10) & (12-16).. Does not fit KX 450F (11)
The KX FI Calibration Controller contains seven preset settings that can be quickly and easily used to adjust the ECU to suit track conditions. The provided settings are shown below.
  • SETTING - DESCRIPTION
  • Richer fuel setting - fuelling 5% richer than stock
  • Leaner fuel setting - fuelling 5% leaner than stock
  • Advanced ignition setting - ignition advanced 3o from stock
  • Retarded ignition setting - ignition retarded 3o from stock
  • Hard riding surface setting - ignition retarded, fuelling richer
  • Soft riding surface setting - ignition advanced, fuelling leaner
  • Beginner setting - engine power suppressed: ignition retarded, fuelling richer


Price and specifications are subject to change without notice or liability. Availability is subject to production, stocking and demand. Manufacturer's suggested retail prices shown.
