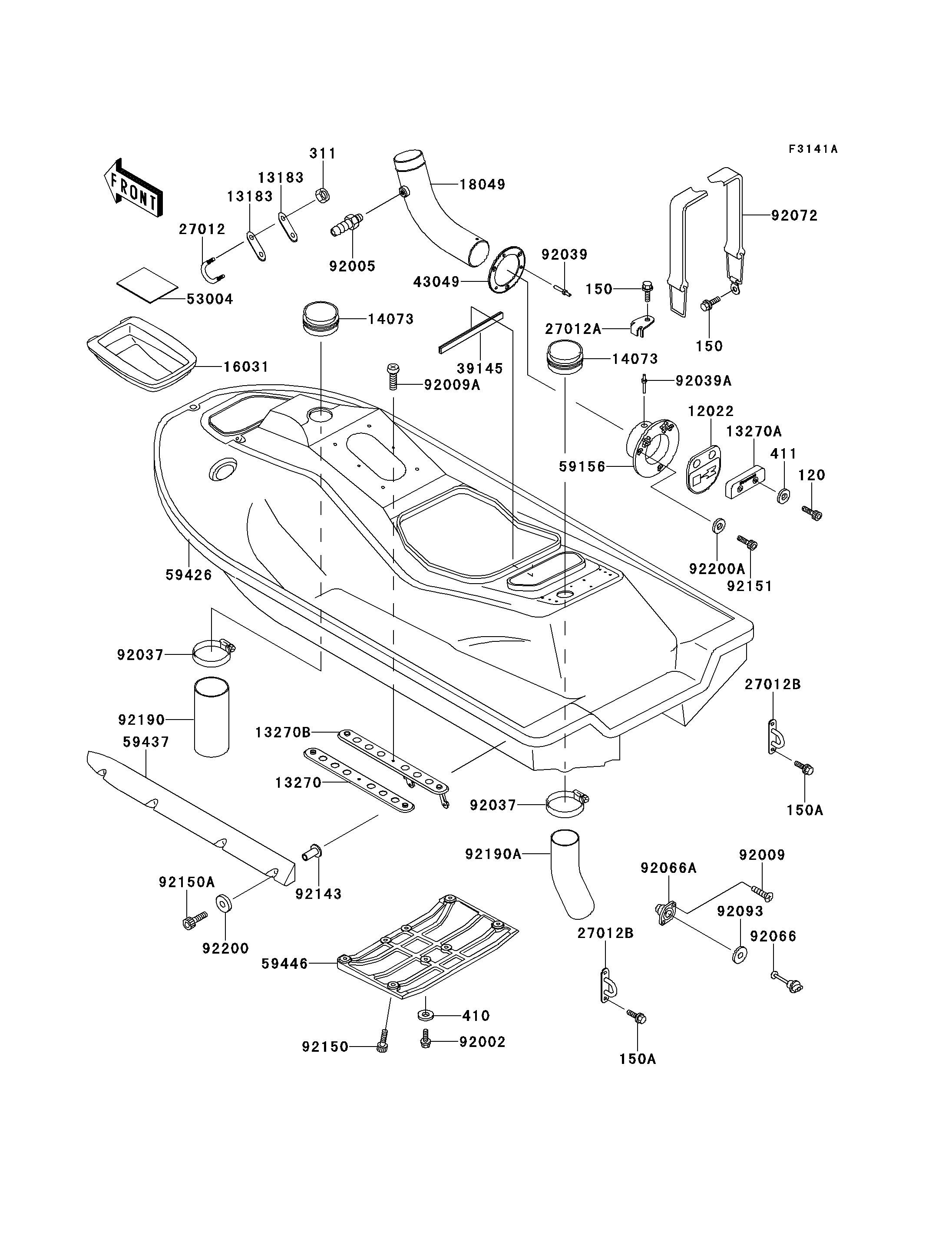

1997 750 ZXi - Hull(JH750-C3)

DOWNLOAD PDF
SELECT A NEW PART
120
120
150
150
150
150
12022
12022
13183
13183
13183
13183
13270
13270
13270A
13270A
13270B
13270B
14073
14073
14073
14073
16031
16031
18049
18049
27012
27012
27012A
27012A
27012B
27012B
27012B
27012B
39145
39145
43049
43049
53004
53004
59156
59156
59437
59437
59446
59446
92002
92002
92005
92005
92009
92009
92009A
92009A
92037
92037
92037
92037
92039
92039
92039A
92039A
92066
92066
92066A
92066A
92072
92072
92093
92093
92143
92143
92150
92150
92150A
92150A
92151
92151
92190
92190
92190A
92190A
92200
92200
92200A
92200A
150A
150A
150A
150A
311
311
410
410
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120R0616 2
BOLT-WS,6X14 150 150R0614 2
VALVE-REED 12022 12022-3706 1
PLATE 13183 13183-3809 2
PLATE,HANDLE POLE BRACKET 13270 13270-3776 1
PLATE 13270A 13270-3785 1
PLATE,HANDLE POLE BRACKET 13270B 13270-3844 1
DUCT,AIR INTAKE 14073 14073-3750 2
FLOAT,TANK 16031 16031-3837 1
PIPE-EXHAUST 18049 18049-3751 1
HOOK 27012 27012-3776 1
HOOK,WATER MUFFLER 27012A 27012-3777 1
HOOK,REAR 27012B 27012-3782 2
TRIM-SEAL,L=480 39145 39145-3750 1
PACKING 43049 43049-3711 1
MAT,FUEL TANK 53004 53004-3773 1
PIPE-TAIL 59156 59156-3714 1
STABILIZER,F.RED 59437 59437-3708-6L 2
COVER-JET PUMP,J.S.VIOLET 59446 59446-3728-23 1
BOLT,6X20 92002 92002-3755 4
FITTING,HOSE 92005 92005-3712 1
SCREW,TAPPING,4X14 92009 92009-3755 2
SCREW,5X16 92009A 92009-3789 2
CLAMP 92037 92037-541 2
RIVET,4MM 92039 92039-3703 3
RIVET,4.8MM 92039A 92039-3719 1
PLUG,RR,DRAIN 92066 92066-3744 1
PLUG,DRAIN 92066A 92066-3749 1
BAND,WATER MUFFLER 92072 92072-3781 1
SEAL 92093 92093-3720 1
COLLAR 92143 92143-3739 8
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,SOCKET,6X40 92150A 92150-3847 8
BOLT,SOCKET,5X25 92151 92151-3709 3
TUBE 92190 92190-3962 1
TUBE 92190A 92190-3963 1
WASHER,6.5X16X1.0 92200 92200-3712 8
WASHER 92200A 92200-3748 3
BOLT-WS,6X18 150A 150R0618 4
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
WASHER-PLAIN,6MM 411 411S0600 2
HULL-COMP,J.WHITE 59426 59426-3855-8C 1 US
