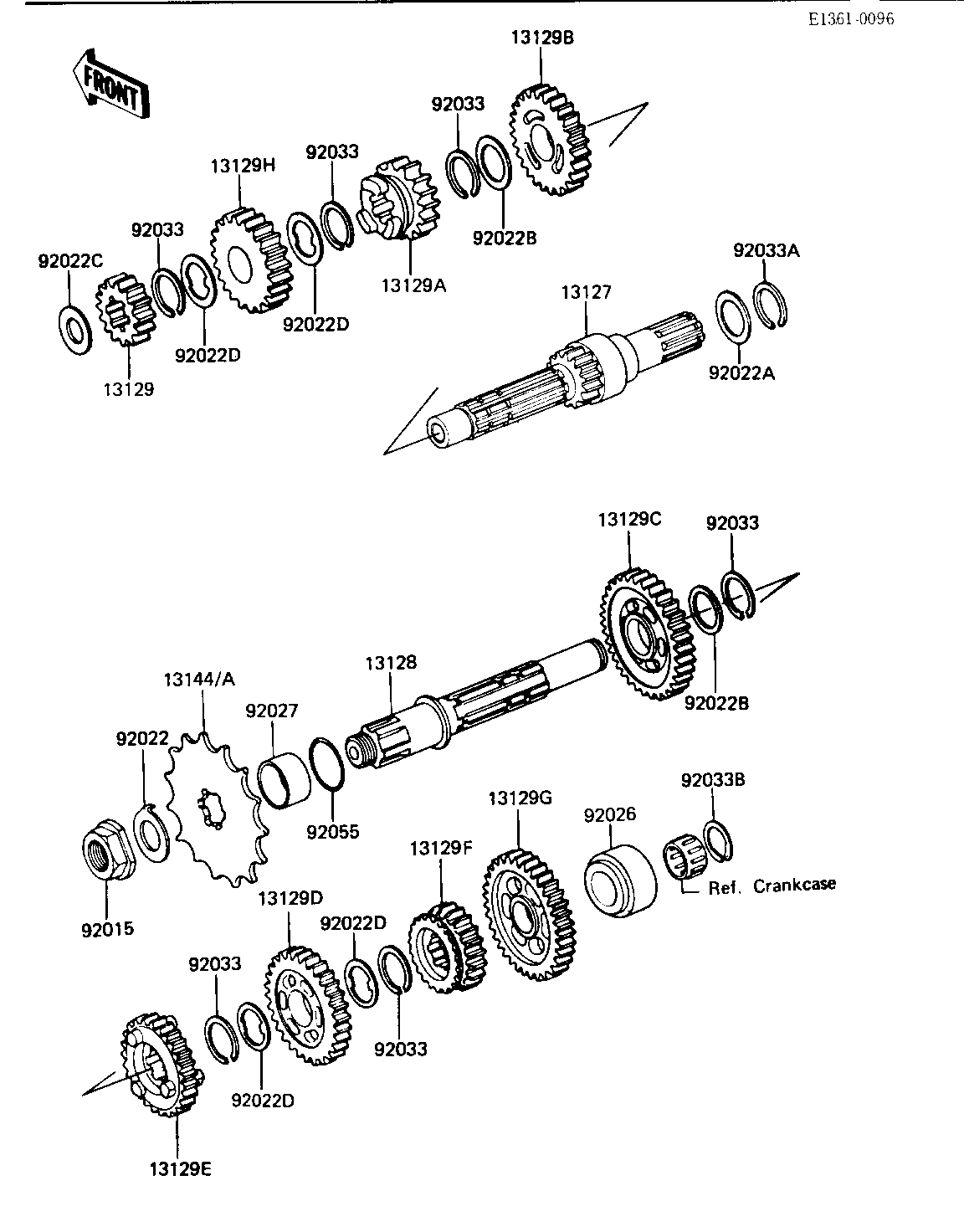

1984 KLT200 - TRANSMISSION ('84 KLT200-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1068 | 1 | ||
| SHAFT,OUTPUT | 13128 | 13128-1007 | 1 | ||
| GEAR,INPUT,2ND,13T | 13129 | 13129-1316 | 1 | ||
| GEAR,INPUT,3RD,18T | 13129A | 13129-1317 | 1 | ||
| GEAR,INPUT,TOP,24T | 13129B | 13129-1318 | 1 | ||
| GEAR,OUTPUT,2ND,27T | 13129C | 13129-1320 | 1 | ||
| GEAR,OUTPUT,3RD,26T | 13129D | 13129-1321 | 1 | ||
| GEAR,OUTPUT,TOP,20T | 13129E | 13129-1323 | 1 | ||
| GEAR,OUTPUT,TOP,20T | 13129F | 13129-1323 | 1 | ||
| GEAR-TRANSMISSION SPU | 13129G | 13129-1422 | 1 | ||
| 4TH GEAR,DRIVE SHAFT | 13129H | 13134-026 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-1038 | 1 | ||
| SPROCKET-OUTPUT,12T | 13144A | 13144-1039 | 1 | (OPTION) | |
| NUT,LOCK,16M/M | 92015 | 92015-1013 | 1 | ||
| WASHER,LOCK | 92022 | 92022-1017 | 1 | ||
| WASHER THRUST | 92022A | 92022-112 | 1 | ||
| WASHER-PLAIN | 92022B | 92022-198 | 2 | ||
| WASHER,THRUST,15MM | 92022C | 92022-279 | 1 | ||
| WASHER-LOCK | 92022D | 92024-039 | 4 | ||
| SPACER,DRIVE SHAFT | 92026 | 92026-1061 | 1 | ||
| COLLAR,ENGINE SPROCKT | 92027 | 92027-287 | 1 | ||
| CIRCLIP,25MM | 92033 | 92033-025 | 6 | ||
| CIRCLIP,18MM | 92033A | 92033-029 | 1 | ||
| CIRCLIP,16MM | 92033B | 92033-032 | 1 | ||
| "0" RING | 92055 | 92055-022 | 1 |
