1984 KLT200
SELECT A NEW VEHICLEFind diagram by part name or number

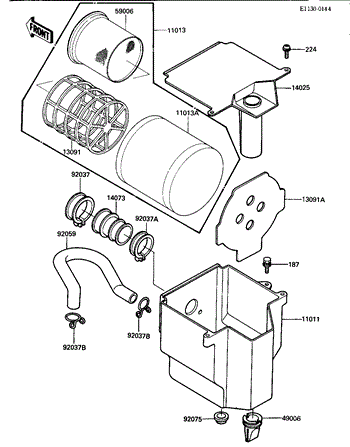

AIR CLEANER ('84 KLT200-C2)

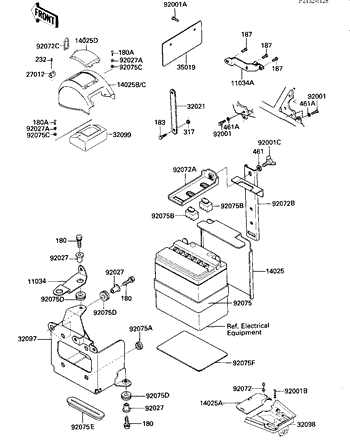

BATTERY CASE/TOOL CASE ('84 KLT200-C2)

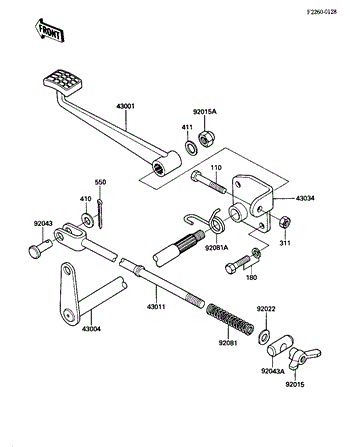

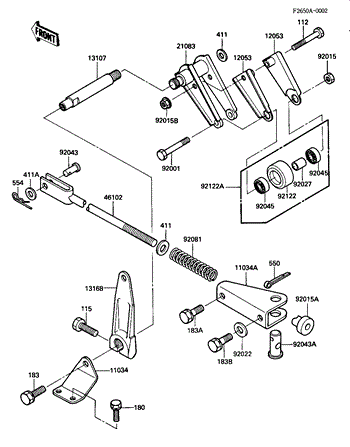

BRAKE PEDAL ('84 KLT200-C2)

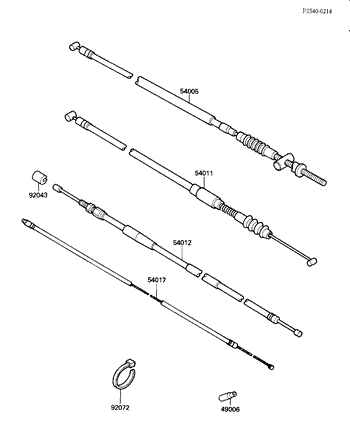

CABLES ('84 KLT200-C2)

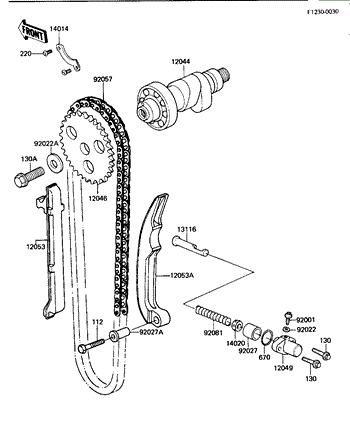

CAMSHAFT/CHAIN/TENSIONER ('84 KLT200-C2)

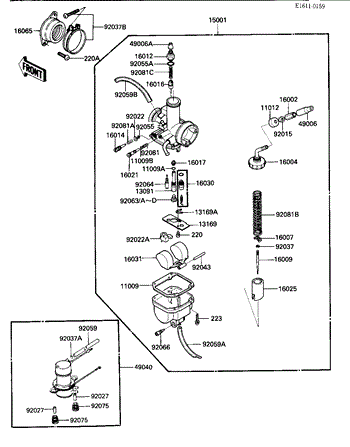

CARBURETOR/FUEL PUMP ('84 KLT200-C

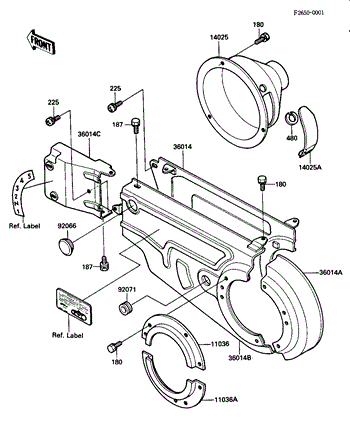

CHAIN CASE ('84 KLT200-C2)
CHAIN TENSIONER ('84 KLT200-C2)
CHASSIS ELECTRICAL EQUIPMENT ('84 KLT200

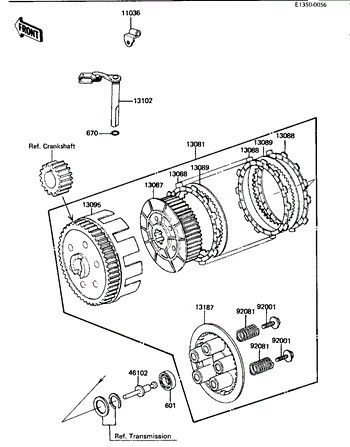

CLUTCH ('84 KLT200-C2)

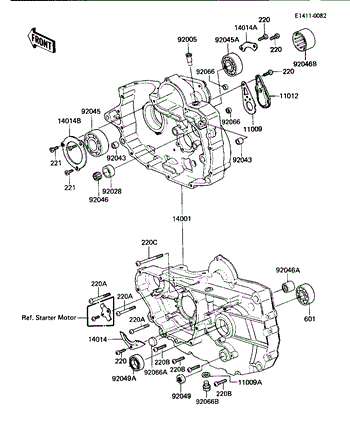

CRANKCASE ('84 KLT200-C2)

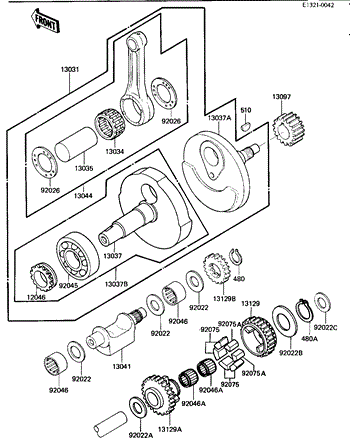

CRANKSHAFT/BALANCER ('84 KLT200-C2)

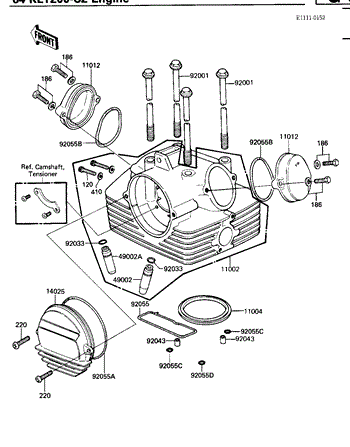

CYLINDER HEAD/COVERS ('84 KLT200-C2)

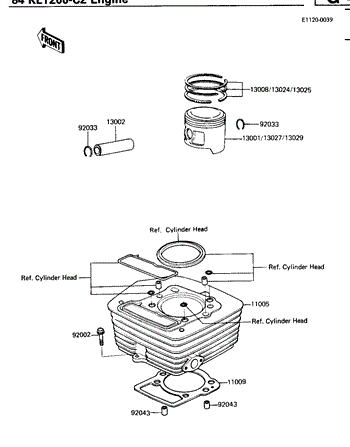

CYLINDER/PISTON ('84 KLT200-C2)

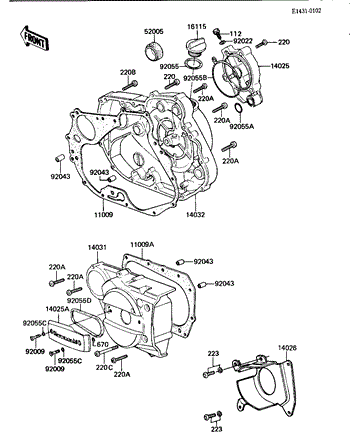

ENGINE COVERS ('84 KLT200-C2)

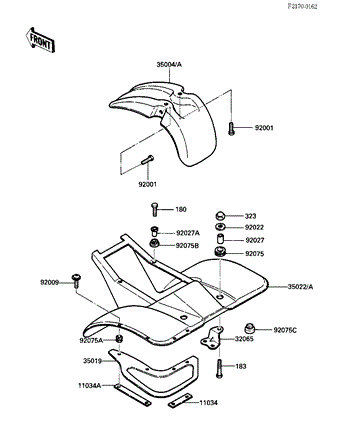

FENDERS ('84 KLT200-C2)

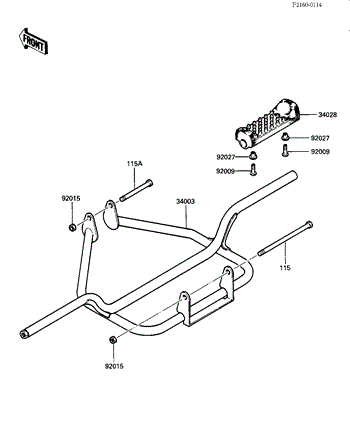

FOOTRESTS ('84 KLT200-C2)

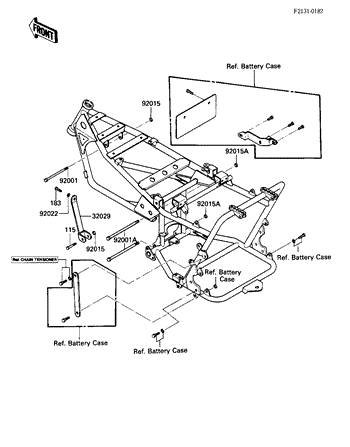

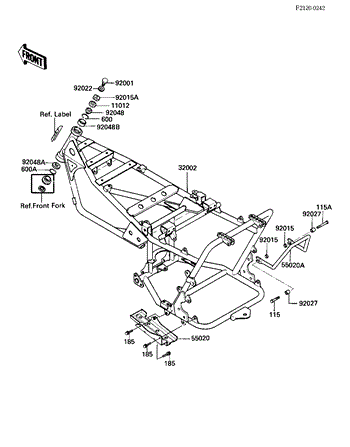

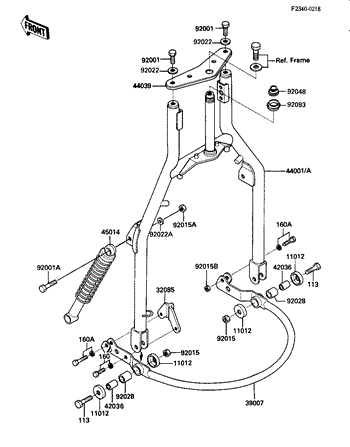

FRAME
FRAME FITTINGS
FRONT FORK ('84 KLT200-C2)
FRONT HUB/BRAKE ('84 KLT200-C2)

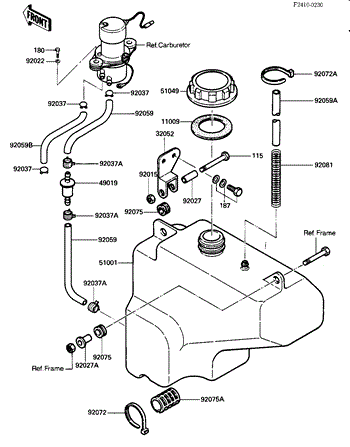

FUEL TANK ('84 KLT200-C2)

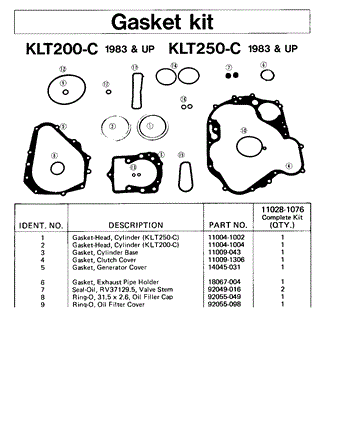

GASKET KIT

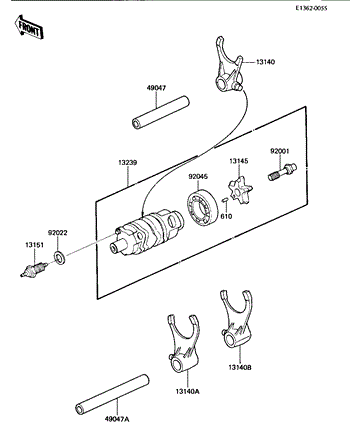

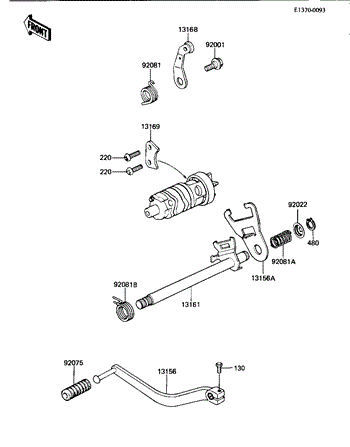

GEAR CHANGE DRUM & FORKS ('84 KLT200-C2)
GEAR CHANGE MECHANISM ('84 KLT200-C2)

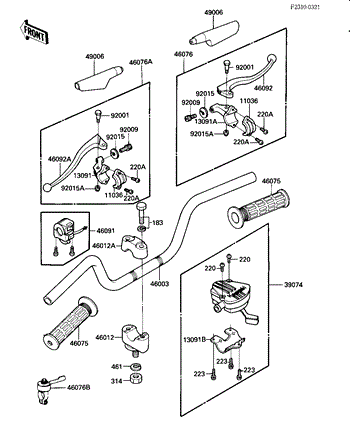

HANDLEBAR ('84 KLT200-C2)
HEADLIGHT ('84 KLT200-C2)

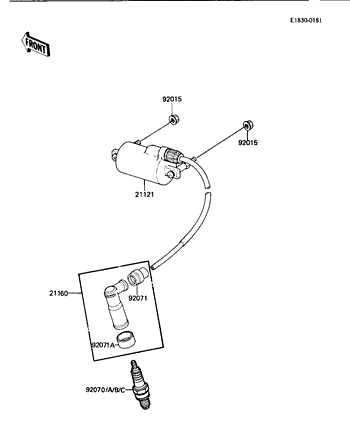

IGNITION COIL ('84 KLT200-C2)
IGNITION SWITCH/REFLECTORS

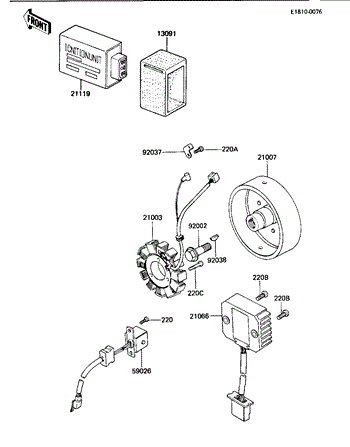

IGNITION/GENERATOR
LABELS ('84 KLT200-C2)

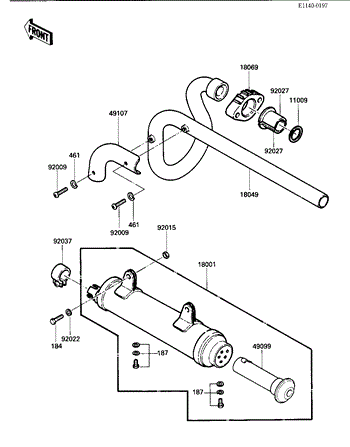

MUFFLER ('84 KLT200-C2)

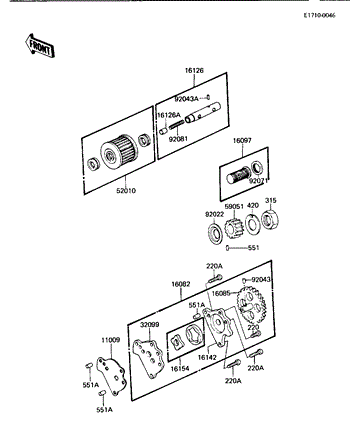

OIL PUMP/OIL FILTER ('84 KLT200-C2)
OWNER TOOLS ('84 KLT200-C2)

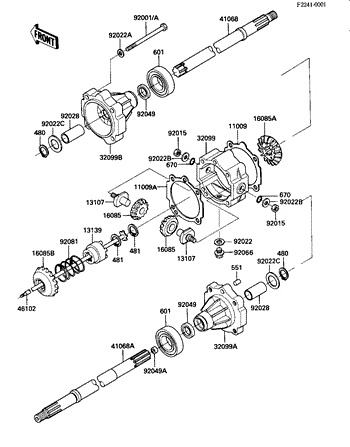

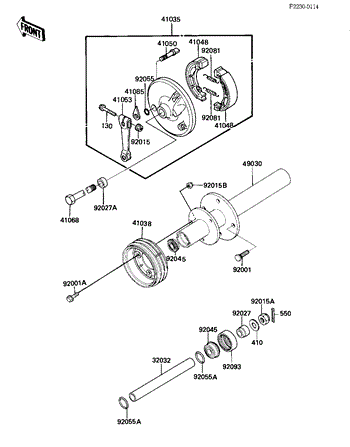

REAR AXLE ('84 KLT200-C2)

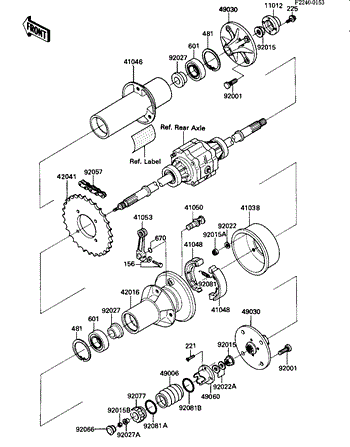

REAR HUB/BRAKE/CHAIN ('84 KLT200-C2)

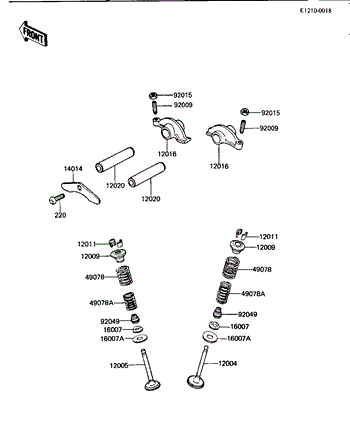

ROCKER ARMS/VALVES ('84 KLT200-C2)

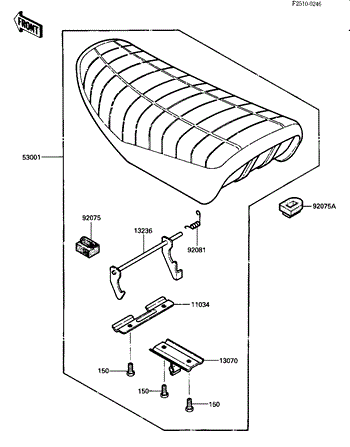

SEAT ('84 KLT200-C2)

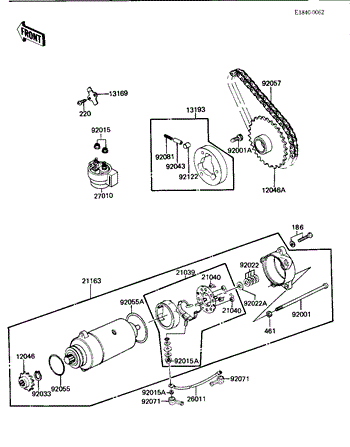

STARTER MOTOR/STARTER CLUTCH ('84 KLT200
TAILLIGHT ('84 KLT200-C2)

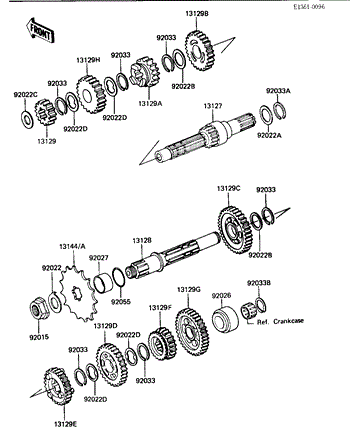

TRANSMISSION ('84 KLT200-C2)

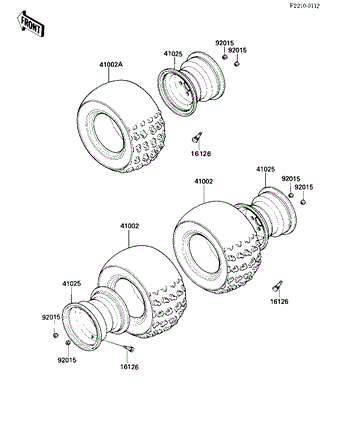

WHEELS/TIRES ('84 KLT200-C2)
