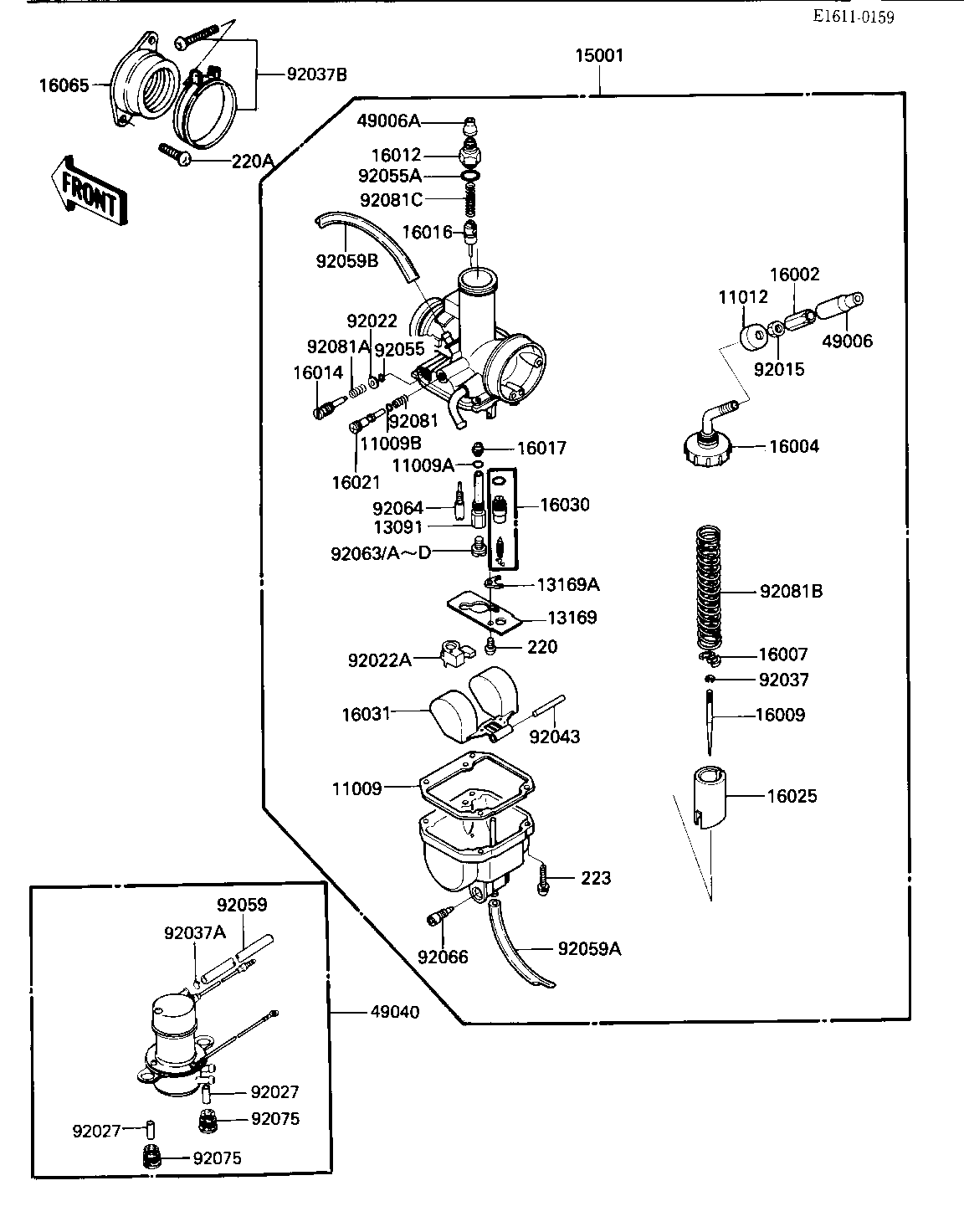

1984 KLT200 - CARBURETOR/FUEL PUMP ('84 KLT200-C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11009 | 11009-1409 | 1 | ||
"0" RING,MAIN JET COV | 11009A | 16038-016 | 1 | ||
"O" RING | 11009B | 16038-022 | 1 | ||
CAP,CHAMBER CAP | 11012 | 11012-1389 | 1 | ||
HOLDER,NEEDLE JET | 13091 | 13091-1298 | 1 | ||
PLATE,FLOAT CHAMBER | 13169 | 13169-1808 | 1 | ||
PLATE,LOCK | 13169A | 13169-1809 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1062 | 1 | ||
ADJUSTER-CABLE | 16002 | 16002-1052 | 1 | ||
CAP-CHAMBER | 16004 | 16004-1052 | 1 | ||
SEAT-SPRING,THROTTLE | 16007 | 16007-1111 | 1 | ||
NEEDLE-JET,5M01 | 16009 | 16009-1222 | 1 | ||
CAP-STARTER PLUNGER | 16012 | 16012-1056 | 1 | ||
SCREW-PILOT AIR | 16014 | 16014-1052 | 1 | ||
PLUNGER,STARTER | 16016 | 16016-1056 | 1 | ||
JET-NEEDLE,0-2 | 16017 | 16017-1244 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1111 | 1 | ||
VALVE-THROTTLE,CA 3.0 | 16025 | 16025-1109 | 1 | ||
VALVE-FLOAT,#1.0 | 16030 | 16030-1055 | 1 | ||
FLOAT | 16031 | 16031-1055 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1111 | 1 | ||
BOOT,CABLE ADJUSTER | 49006 | 49006-1084 | 1 | ||
BOOT,STARTER PLUNGER | 49006A | 49006-1164 | 1 | ||
PUMP-FUEL | 49040 | 49040-1006 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015 | 92015-1362 | 1 | ||
WASHER,PILOT SCREW | 92022 | 92022-1187 | 1 | ||
WASHER,NEEDLE JET | 92022A | 92022-1530 | 1 | ||
COLLAR,6X22 | 92027 | 92027-1581 | 2 | ||
CIRCLIP | 92037 | 16008-010 | 1 | ||
CLAMP,FUEL HOSE | 92037A | 92037-1395 | 2 | ||
CLAMP,CARBURETOR HLDR | 92037B | 92037-178 | 1 | ||
FLOAT PIN | 92043 | 16032-003 | 1 | ||
"0" RING,PILOT SCREW | 92055 | 92055-1078 | 1 | ||
RING-O,STARTER PLUNGE | 92055A | 92055-1252 | 1 | ||
TUBE,4.5X8.5X700 | 92059 | 92059-1283 | 1 | ||
TUBE,3X5X250 | 92059A | 92059-1429 | 1 | ||
TUBE,5X8X530 | 92059B | 92059-1433 | 1 | ||
MAIN JET,#A97.5R | 92063 | 92063-1035 | 1 | (RACING USE ONLY) | |
MAIN JET,#A100 | 92063A | 92063-1033 | 1 | (RACING USE ONLY) | |
MAIN JET,#A102.5 | 92063B | 92063-1028 | 1 | ||
MAIN JET,#A105R | 92063C | 92063-1042 | 1 | (RACING USE ONLY) | |
JET-MAIN NO 107.5R | 92063D | 92063-073 | 1 | (RACING USE ONLY) | |
JET-PILOT,#3.5 | 92064 | 92064-1106 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1171 | 1 | ||
DAMPER,FUEL PUMP | 92075 | 92075-1481 | 2 | ||
SPRING,AIR SCREW | 92081 | 92081-1153 | 1 | ||
SPRING,PILOT AIR SCRE | 92081A | 92081-1690 | 1 | ||
SPRING,THROTTLE VALVE | 92081B | 92081-1691 | 1 | ||
SPRING,STARTER PLUNGE | 92081C | 92081-1705 | 1 | ||
SCREW-PAN-HEAD 3X6 | 220 | 220B0306 | 1 | ||
SCREW-PAN-CROS | 220A | 220X0614 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223B0416 | 4 |
