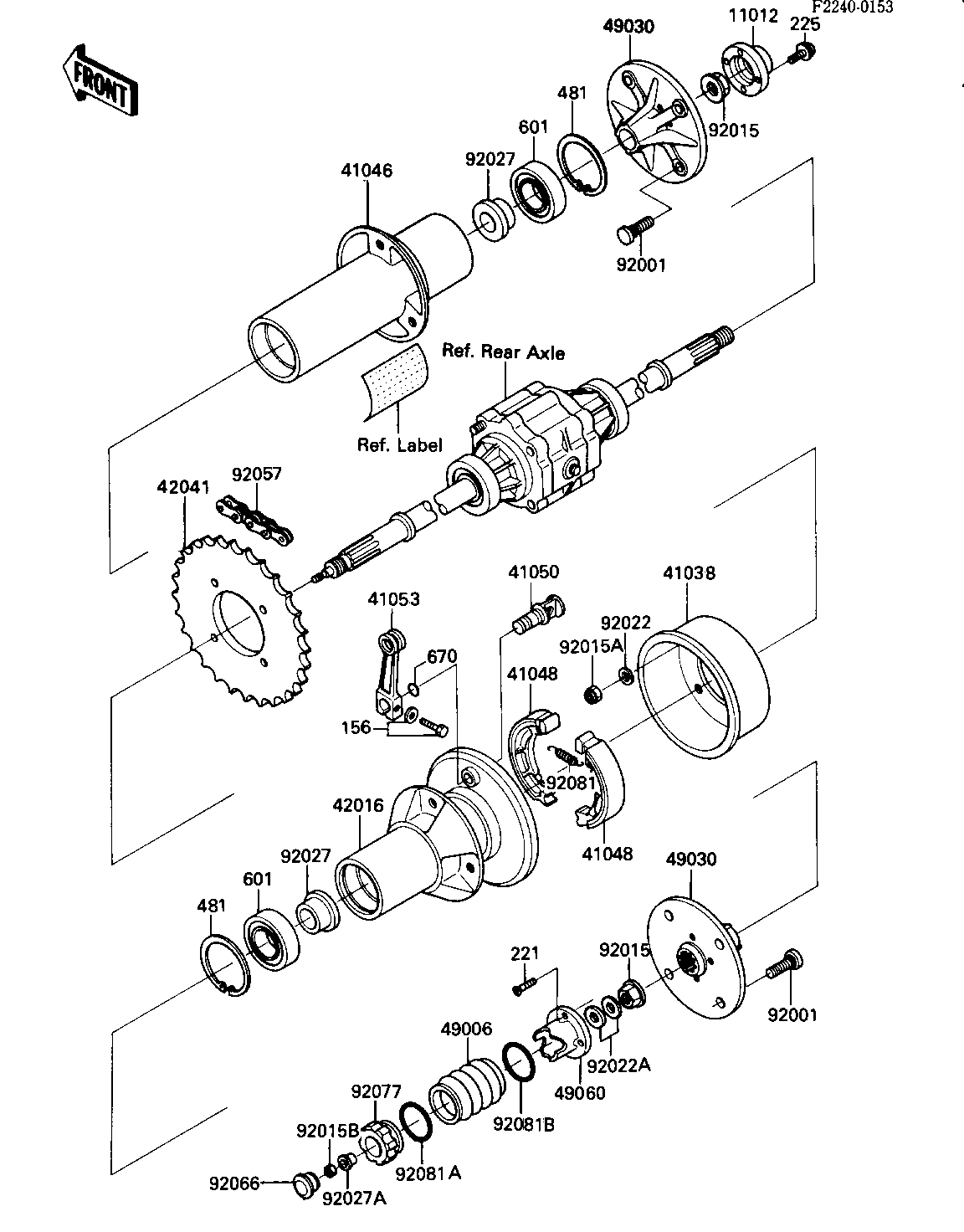

1984 KLT200 - REAR HUB/BRAKE/CHAIN ('84 KLT200-C2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-4005 1
DRUM,HUB-RR 41038 41038-4017 1
HOUSING,BEARING 41046 41046-4009 1
SHOE-BRAKE 41048 41048-1068 2
CAM SHAFT,BRAKE 41050 41050-1002 1
LEVER BRAKE CAM 41053 41053-1022 1
PANEL,RR BRAKE 42016 42016-4009 1
SPROCKET-HUB,50T 42041 42041-4008 1
BOOT 49006 49006-4005 1
RR-HUB,FORGED 49030 49030-4011 2
CAM 49060 49060-4001 1
BOLT,LUG 92001 92001-4006 8
NUT,FLANGED&LOCK,18MM 92015 92015-4024 2
NUT,10MM 92015A 92015-1429 4
NUT-LOCK,5MM 92015B 92019-014 1
WASHER,10.5X18X2.5 92022 92022-1453 4
WASHER,PLAIN,5MM 92022A 92022-241 3
COLLAR,AXLE 92027 92027-4029 2
COLLAR 92027A 92027-4030 1
CHAIN,EK520SH-0,98L 92057 92057-4011 1
PLUG,FRAME END 92066 92066-1027 1
KNOB 92077 92077-4002 1
SPRING-BRAKE SHOE 92081 42020-004 2
SPRING 92081A 92081-1177 1
SPRING,L=141 92081B 92081-1570 1
BOLT-WP 156 156G0622 1
SCREW-CSK-CROSS 221 221B0516 4
SCREW-PAN-WSP-CROS 225 225B0520 4
CIRCRIP-TYPE-C,68MM 481 481J6800 2
UNAVAILABLE IN PRICE BOOK 601 601A600800 2
"O" RING,15MM 670 670B2015 1
