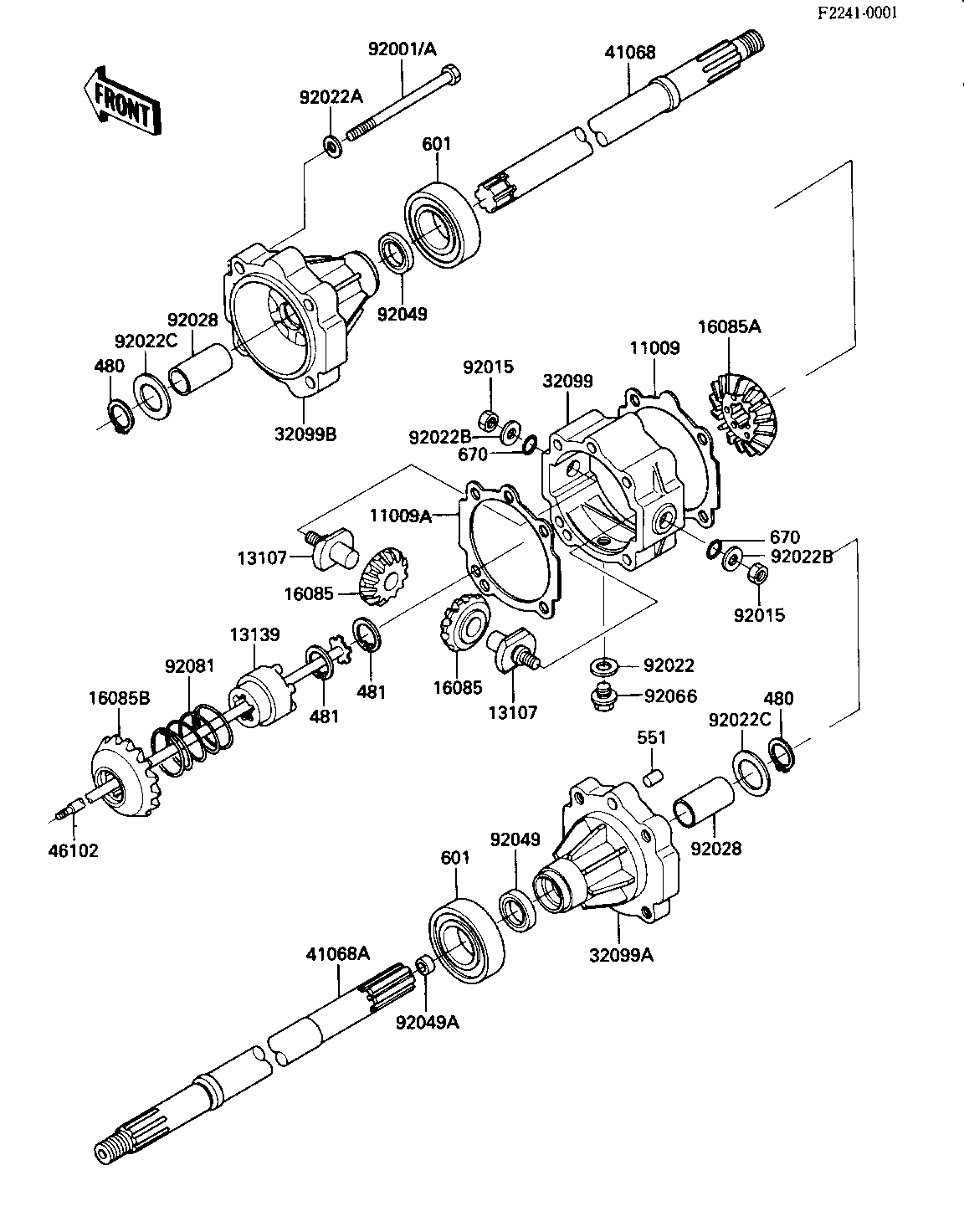

1984 KLT200 - REAR AXLE ('84 KLT200-C2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,DIFFERENTIAL C | 11009 | 11009-1345 | 1 | ||
GASKET,DIFFERENTIAL G | 11009A | 11009-1398 | 1 | ||
SHAFT,PINION | 13107 | 13107-1113 | 2 | ||
SHIFTER | 13139 | 13139-1004 | 1 | ||
GEAR,BEVEL,10T | 16085 | 16085-4005 | 2 | ||
GEAR,BEVEL,16T | 16085A | 16085-4006 | 1 | ||
GEAR,BEVEL,16T | 16085B | 16085-4007 | 1 | ||
CASE,DIFFERENTIAL GEA | 32099 | 32099-1058 | 1 | ||
CASE,DIFFERENTIAL GEA | 32099A | 32099-1059 | 1 | ||
CASE,DIFFERENTIAL GEA | 32099B | 32099-1060 | 1 | ||
AXLE,RR,RH | 41068 | 41068-1151 | 1 | ||
AXLE,RR,LH | 41068A | 41068-1152 | 1 | ||
ROD,REAR AXLE | 46102 | 46102-4007 | 1 | ||
BOLT,10X103 | 92001 | 92001-1842 | 4 | ||
BOLT,10X103 | 92001A | 92001-1842 | AR | ||
NUT | 92015 | 92015-1774 | 2 | ||
WASHER,12X18X1 | 92022 | 92022-1211 | 1 | ||
WASHER,10.5X18X2.5 | 92022A | 92022-1453 | 4 | ||
WASHER,12.3X23X4.5 | 92022B | 92022-1509 | 2 | ||
WASHER,22X40X2 | 92022C | 92022-4029 | 2 | ||
BUSHING,DIFFERENTIAL | 92028 | 92028-1206 | 2 | ||
SEAL-OIL | 92049 | 92049-1106 | 2 | ||
OIL SEAL | 92049A | 92050-075 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
SPRING,DIFFERENTIAL,L | 92081 | 92081-1568 | 1 | ||
CIRCLIP,22MM | 480 | 480J2200 | 2 | ||
CIRCLIP,18MM | 481 | 481J1800 | 2 | ||
PIN-DOWEL,10X20 | 551 | 551A1020 | 2 | ||
UNAVAILABLE IN PRICE BOOK | 601 | 601A600800 | 2 | ||
"O" RING,12MM | 670 | 670B2012 | 2 |
