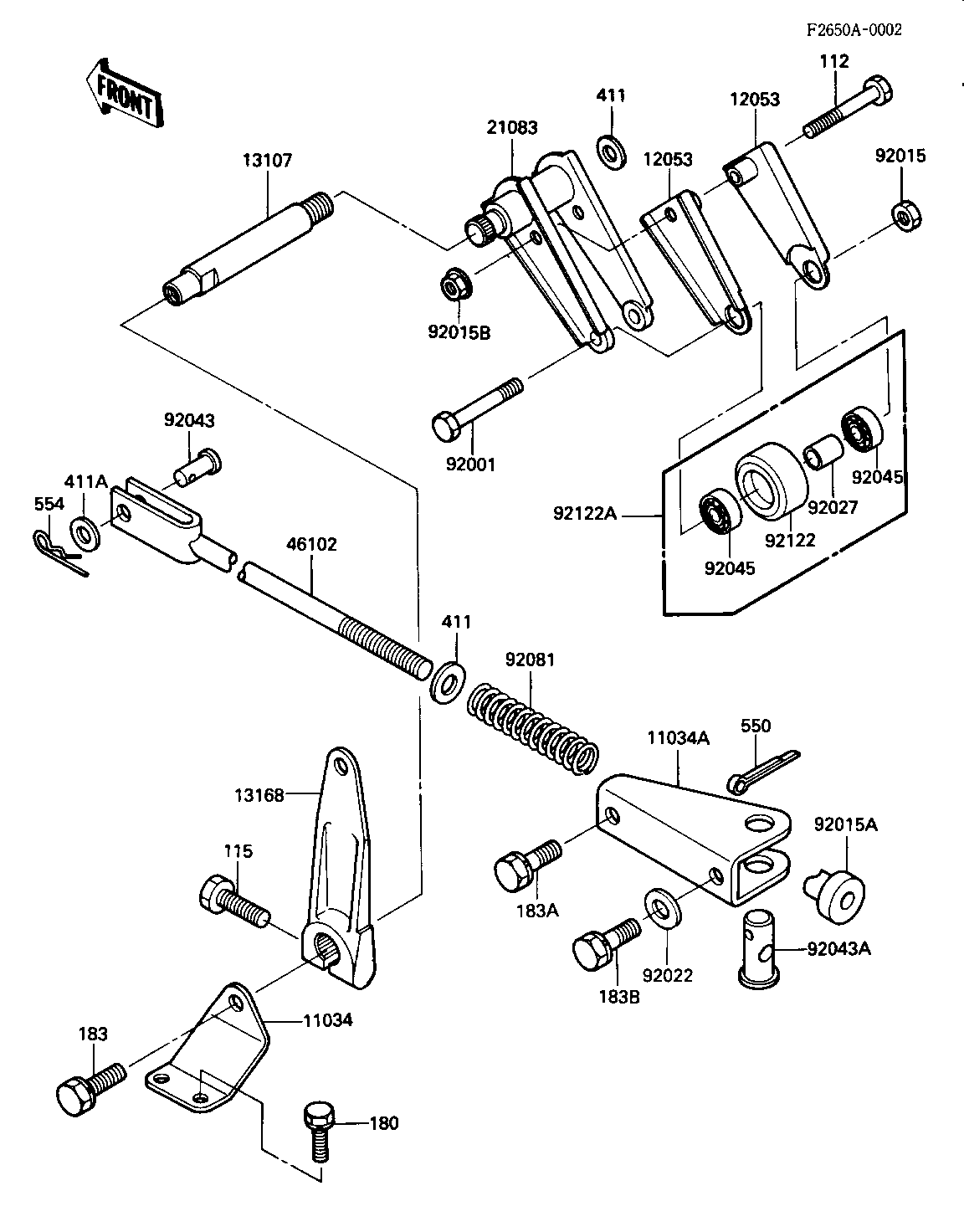

1984 KLT200 - CHAIN TENSIONER ('84 KLT200-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LEVER TENSION | 11034 | 11034-4060 | 1 | ||
| BRACKET,CHAIN ADJUST | 11034A | 11034-4061 | 1 | ||
| GUIDE-CHAIN | 12053 | 12053-4002 | 2 | ||
| SHAFT,L=90 | 13107 | 13107-4008 | 1 | ||
| LEVER | 13168 | 13168-1219 | 1 | ||
| ARM | 21083 | 21083-1051 | 1 | ||
| ROD,CHAIN TENSIONER | 46102 | 46102-4001 | 1 | ||
| BOLT,HEX HEAD,8X45 | 92001 | 92001-4008 | 1 | ||
| NUT,LOCK,8MM | 92015 | 92015-1124 | 1 | ||
| NUT,BRAKE ROD ADJUSTG | 92015A | 92015-4008 | 1 | ||
| NUT | 92015B | 92019-008 | 1 | ||
| WASHER,12.4X28X4.5 | 92022 | 92022-1196 | 1 | ||
| SPACER,CHN GDE ROLLER | 92027 | 92027-4007 | 1 | ||
| PIN,12X22 | 92043 | 92043-4004 | 1 | ||
| PIN,18X33 | 92043A | 92043-4005 | 1 | ||
| BEARING,BALL | 92045 | 92045-1009 | 2 | ||
| SPRING,14X20 | 92081 | 92081-1287 | 1 | ||
| 92122-4004 (Canada) | 92122 | 92122-4003 | 1 | ||
| ROLLER,CHAIN ADJUST | 92122A | 92122-4004 | 1 | ||
| BOLT-UPSET | 112 | 112G0645 | 1 | ||
| BOLT,SMALL UPSET | 115 | 115G0835 | 1 | ||
| BOLT-UPSET-WS,6X14 | 180 | 180B0614 | 2 | ||
| BOLT-UPSET-WS-SMALL | 183 | 183B0816 | 1 | ||
| BOLT-UPSET-WS-SMALL | 183A | 183B0818 | 1 | ||
| BOLT 8X25 | 183B | 183B0825 | 1 | ||
| WASHER PLAIN 10MM | 411 | 411B1000 | 2 | ||
| WASHER PLAIN 12MM | 411A | 411B1200 | 1 | ||
| PIN,COTTER | 550 | 550D3230 | 1 | ||
| PIN,SNAP,12M/M | 554 | 554A1200 | 1 |
