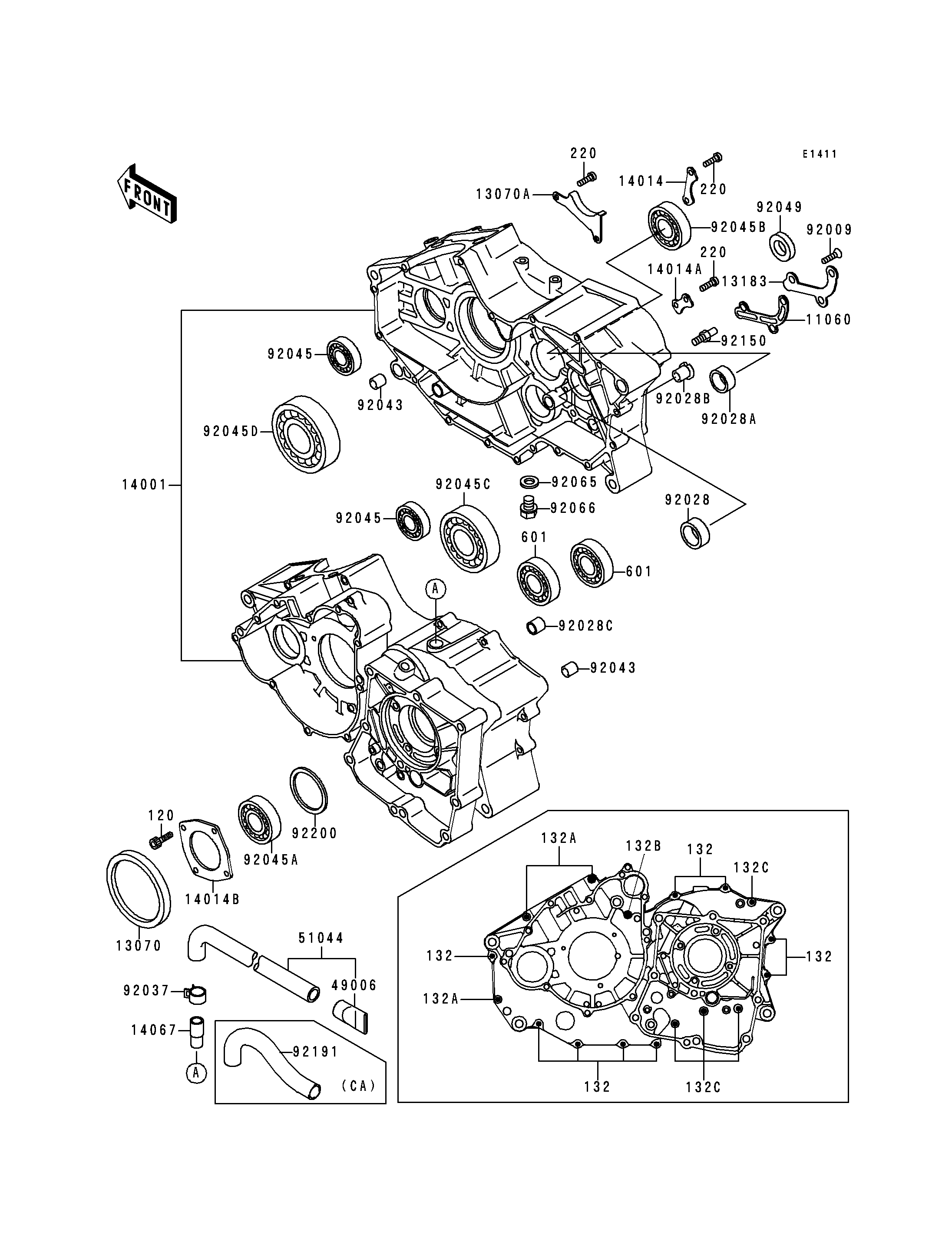

1996 Bayou 400 4X4 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
120
132
132
132
132
132A
132A
132B
132C
132C
220
220
220
601
601
11060
13070
13070A
13183
14001
14014
14014A
14014B
14067
49006
51044
92009
92028
92028A
92028B
92028C
92037
92043
92043
92045
92045
92045A
92045B
92045C
92045D
92049
92065
92066
92150
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120P0616 4
BOLT-FLANGED-SMALL 132 132Y0635 9
BOLT-FLANGED-SMALL 132A 132Y0675 3
BOLT-FLANGED-SMALL 132B 132Y0685 1
BOLT-FLANGED-SMALL 132C 132Y0695 4
SCREW-PAN-CROS,6X14 220 220B0614 6
BEARING-BALL 601 601A6203Z 2
GASKET,OIL LINE 11060 11060-1710 1
GUIDE 13070 13070-1254 1
GUIDE,CHAIN 13070A 13070-1255 1
PLATE,OIL LINE 13183 13183-1725 1
SET-CRANKCASE 14001 14001-5344 1
PLATE-POSITION 14014 14014-1069 1
PLATE-POSITION 14014A 14014-1107 1
PLATE-POSITION 14014B 14014-1108 1
FITTING,BREATHER 14067 14067-006 1
BOOT 49006 49006-1199 1
TUBE-ASSY 51044 51044-1118 1
SCREW,6X14 92009 92009-1349 3
BUSHING,26X35X14 92028 92028-131 1
BUSHING,23X30X13 92028A 92028-132 1
BUSHING 92028B 92028-1386 1
BUSHING,14X16X15 92028C 92028-1505 1
CLAMP 92037 92037-1860 1
PIN,11.5X14X14 92043 92043-1279 2
BEARING-BALL,TMB304CCM 92045 92045-1142 2
BEARING-BALL,6305RHR4SH2 92045A 92045-1254 1
BEARING-BALL,63/22 92045B 92045-1255 1
BEARING-BALL,6307SH2-9C4 92045C 92045-1257 1
BEARING-BALL,6208RSH2-9C3 92045D 92045-1258 1
SEAL-OIL,AC1013A1 92049 92049-1393 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT,RETURN SPRING 92150 92150-1467 1
WASHER,50X60.5X0.5 92200 92200-1106 1
