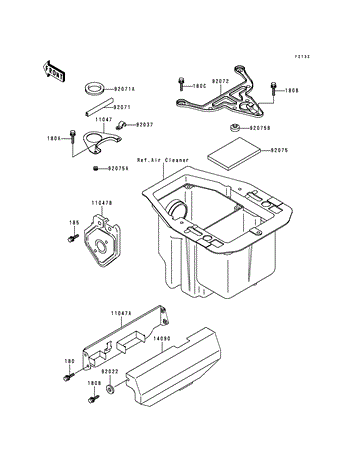

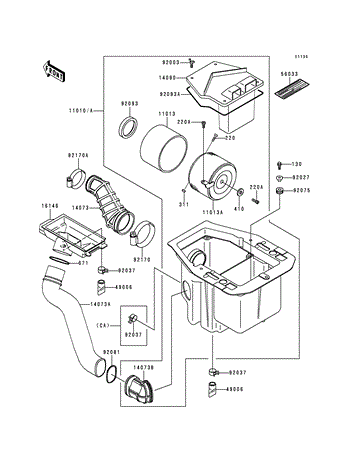

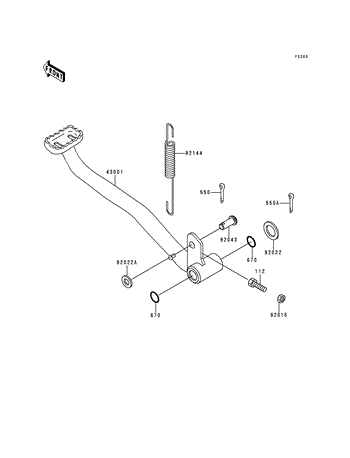

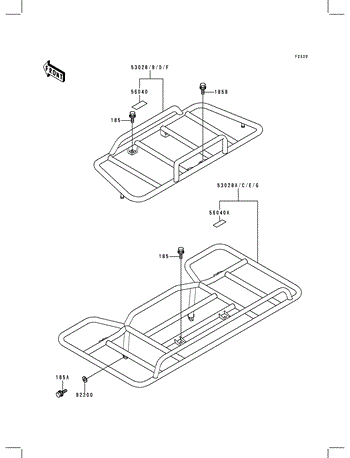

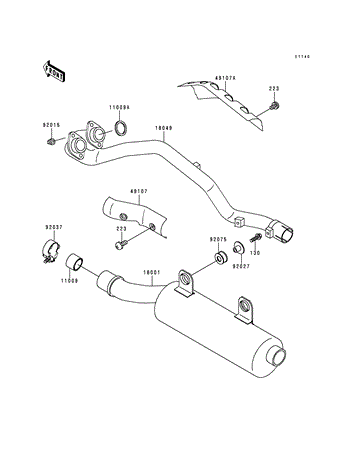

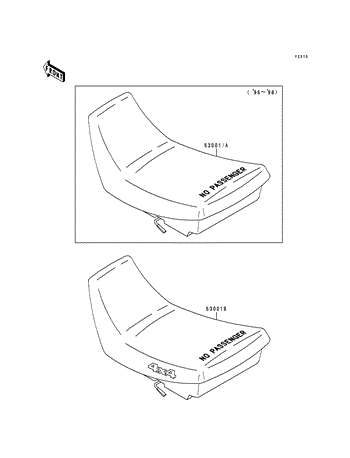

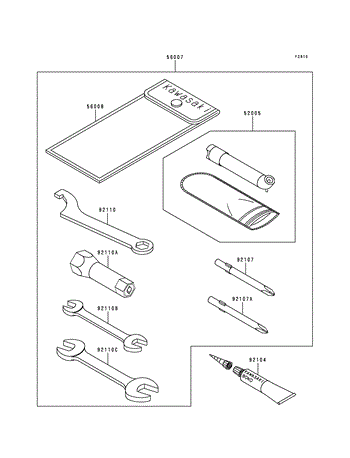

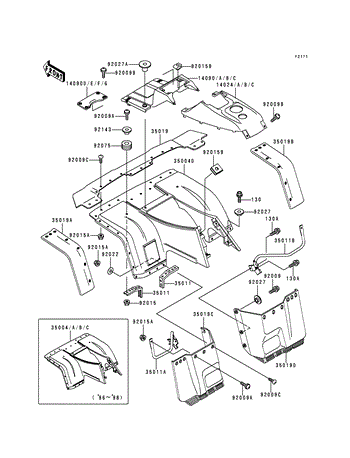

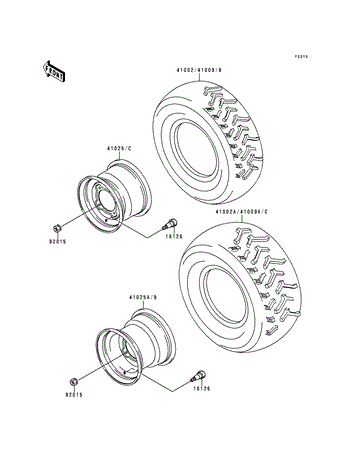

Air Cleaner(KLF400-B4/B5/B6)

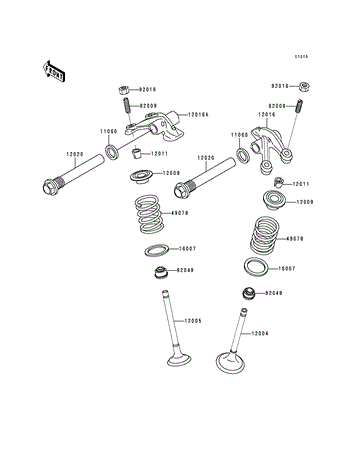

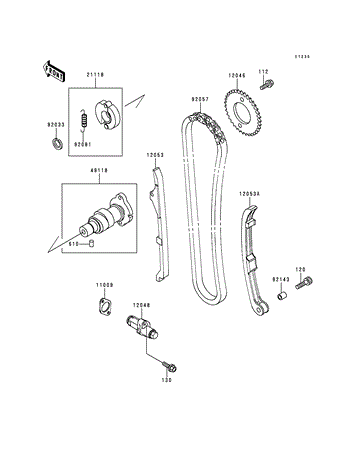

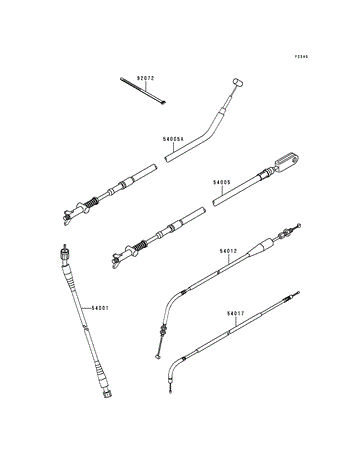

Camshaft(s)/Tensioner

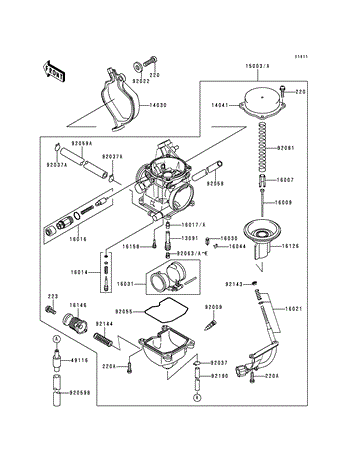

Carburetor(-LF400AE532917)

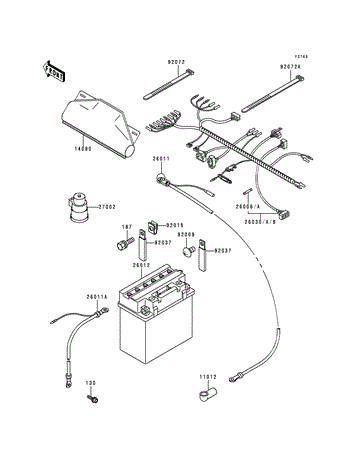

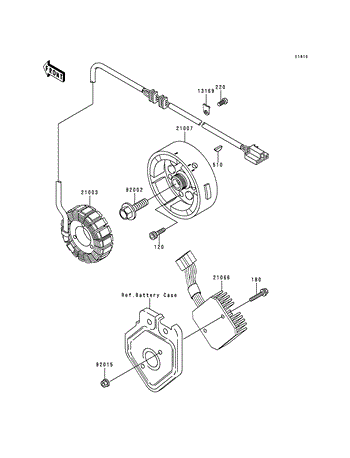

Chassis Electrical Equipment

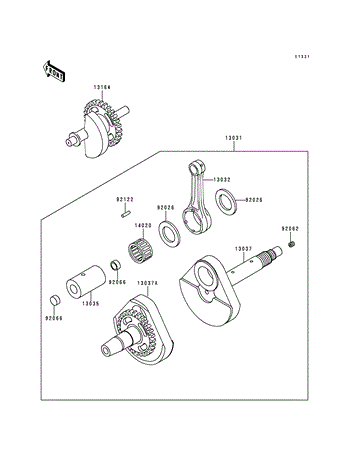

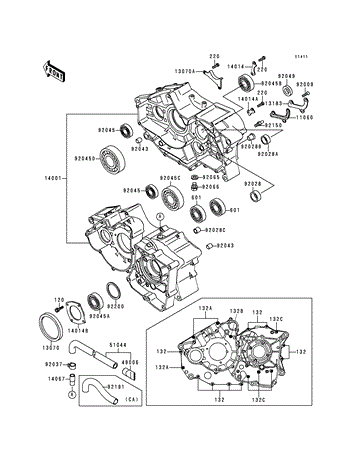

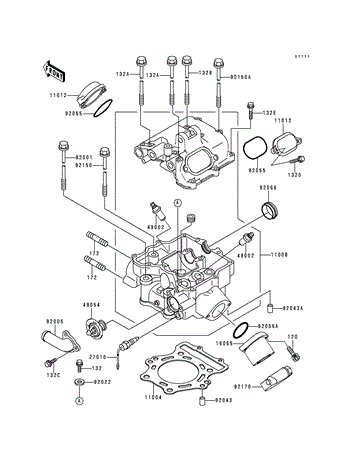

Cylinder Head(-LF400AE532917)

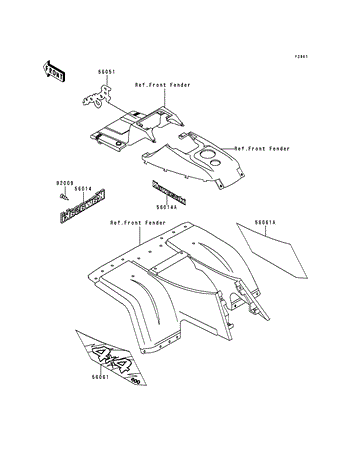

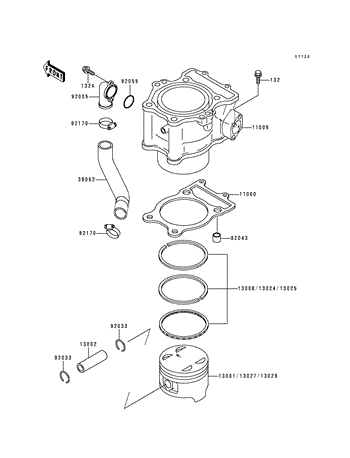

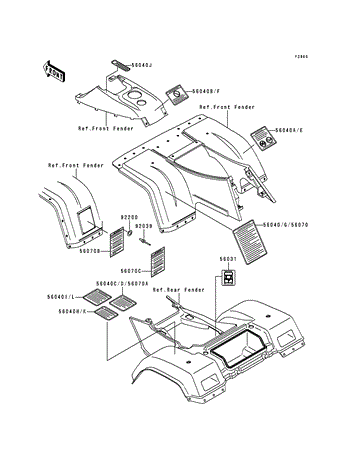

Decals(Ebony)(KLF400-B4)

Decals(Green)(KLF400-B4)

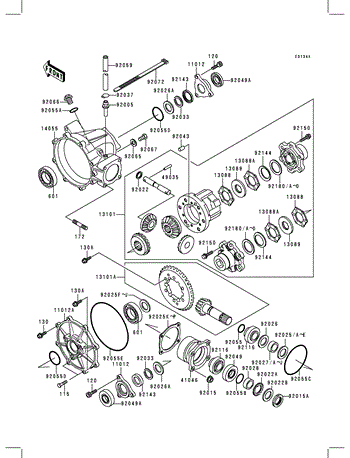

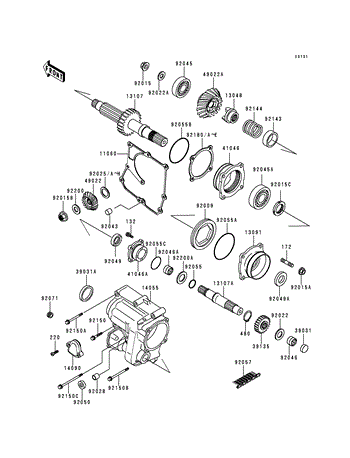

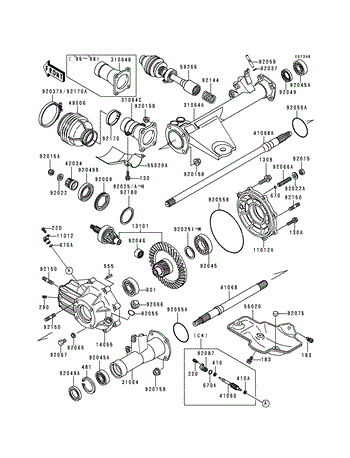

Drive Shaft(Differential)

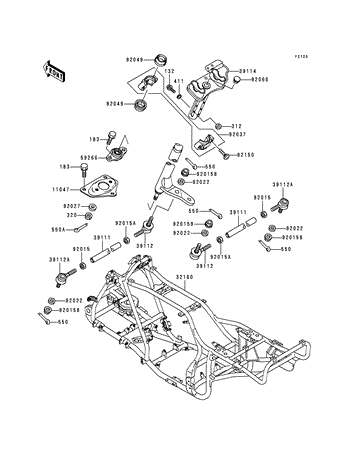

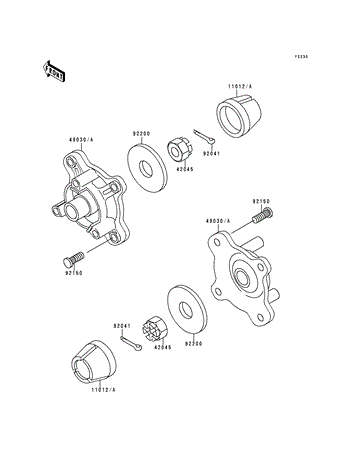

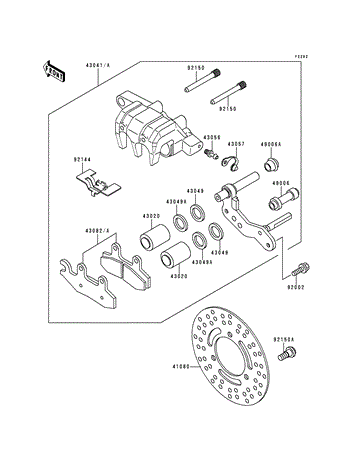

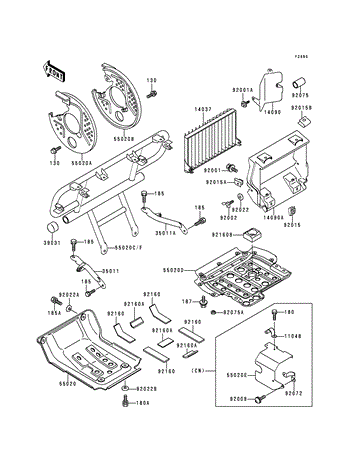

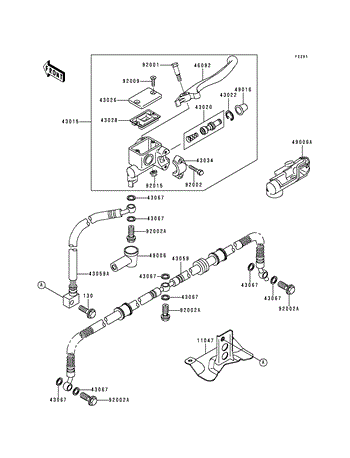

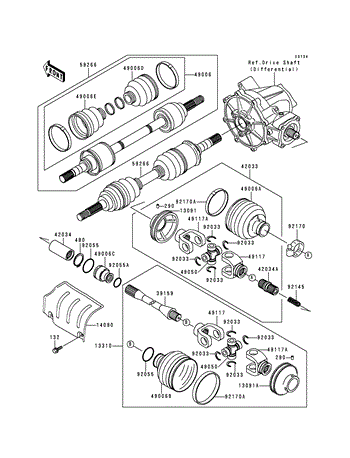

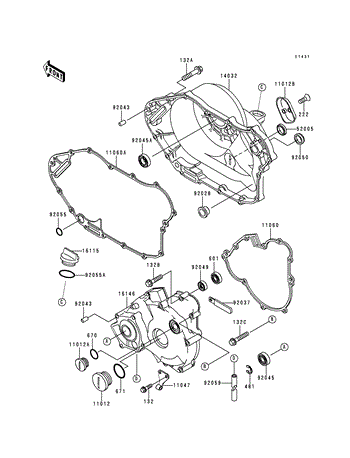

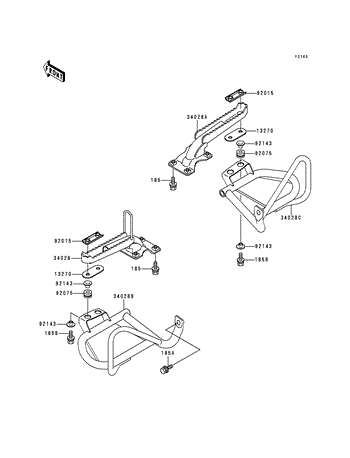

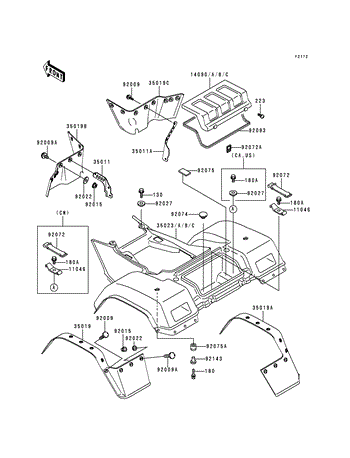

Front Master Cylinder

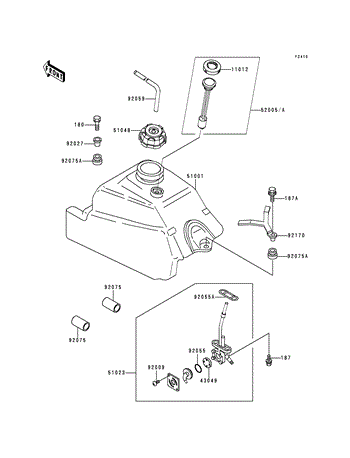

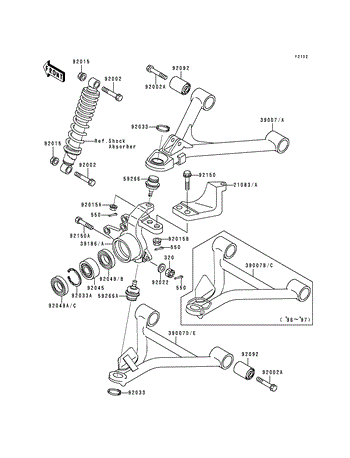

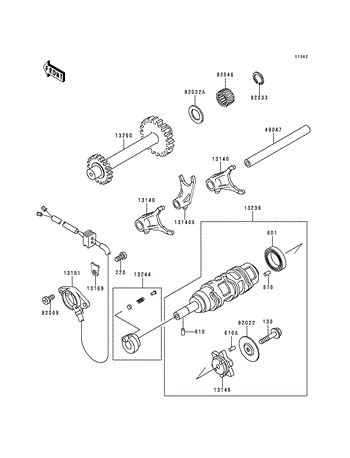

Gear Change Drum/Shift Fork(s)

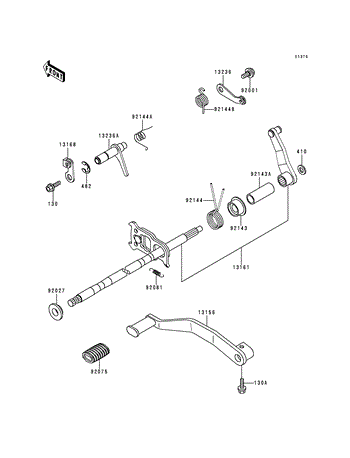

Gear Change Mechanism

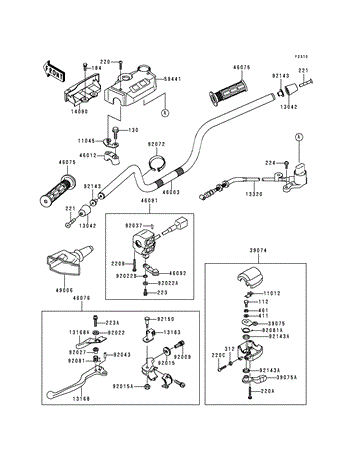

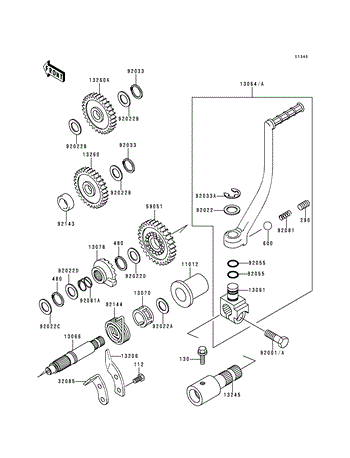

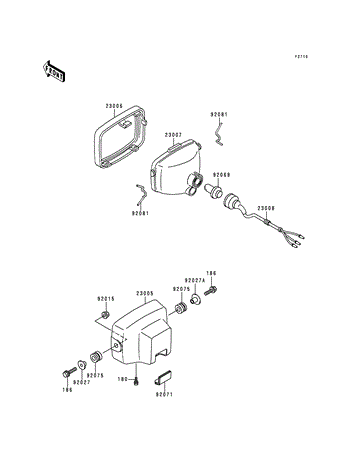

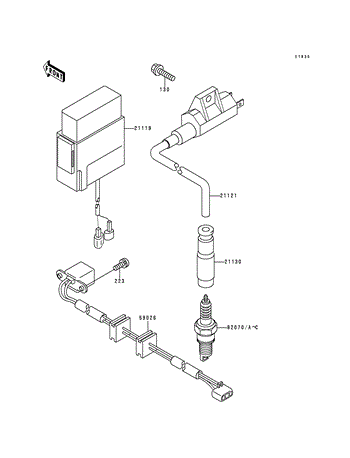

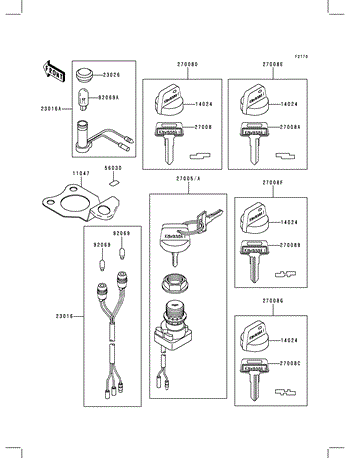

Kickstarter Mechanism

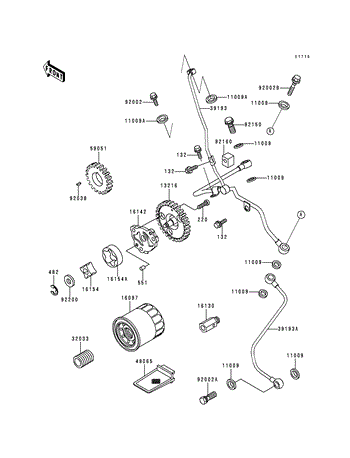

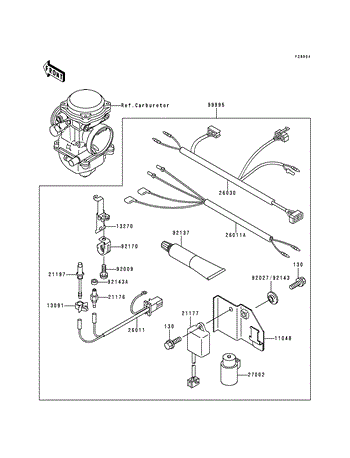

Optional Parts(Carburetor)

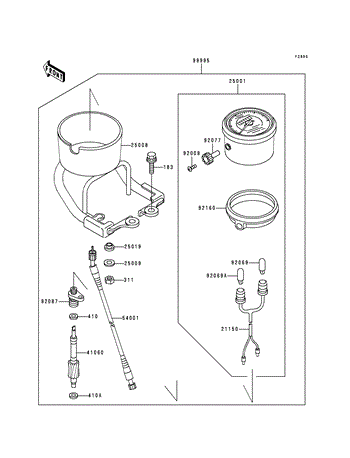

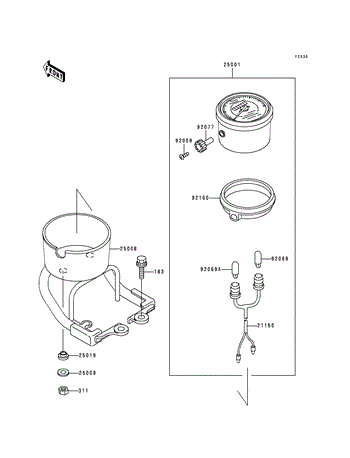

Optional Parts(Meter)

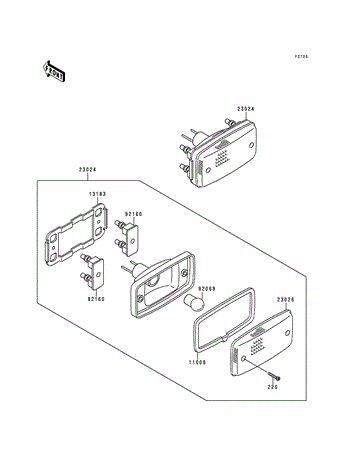

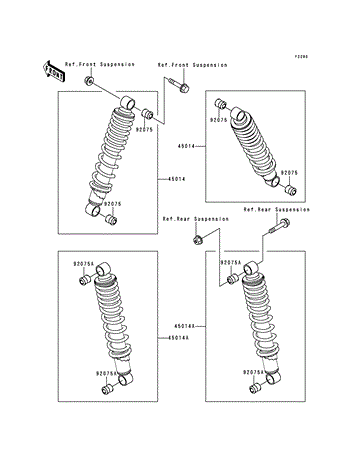

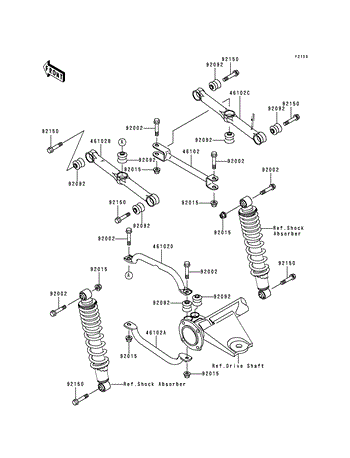

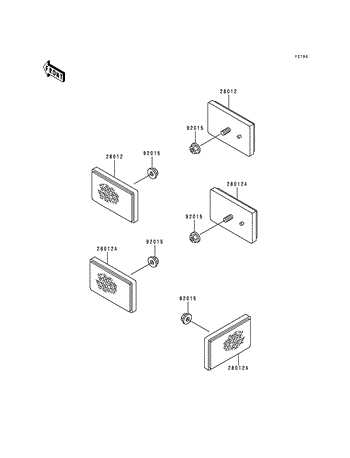

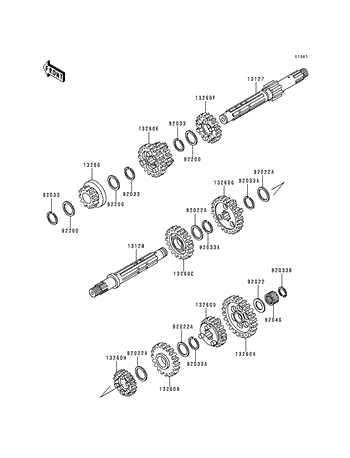

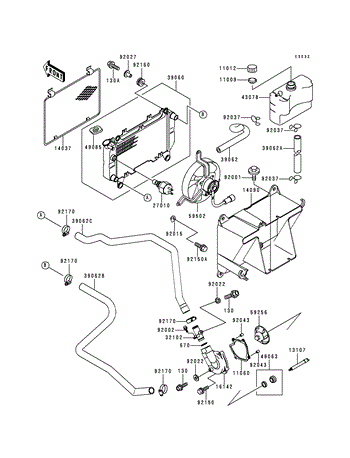

Radiator(-LF400AE532917)
