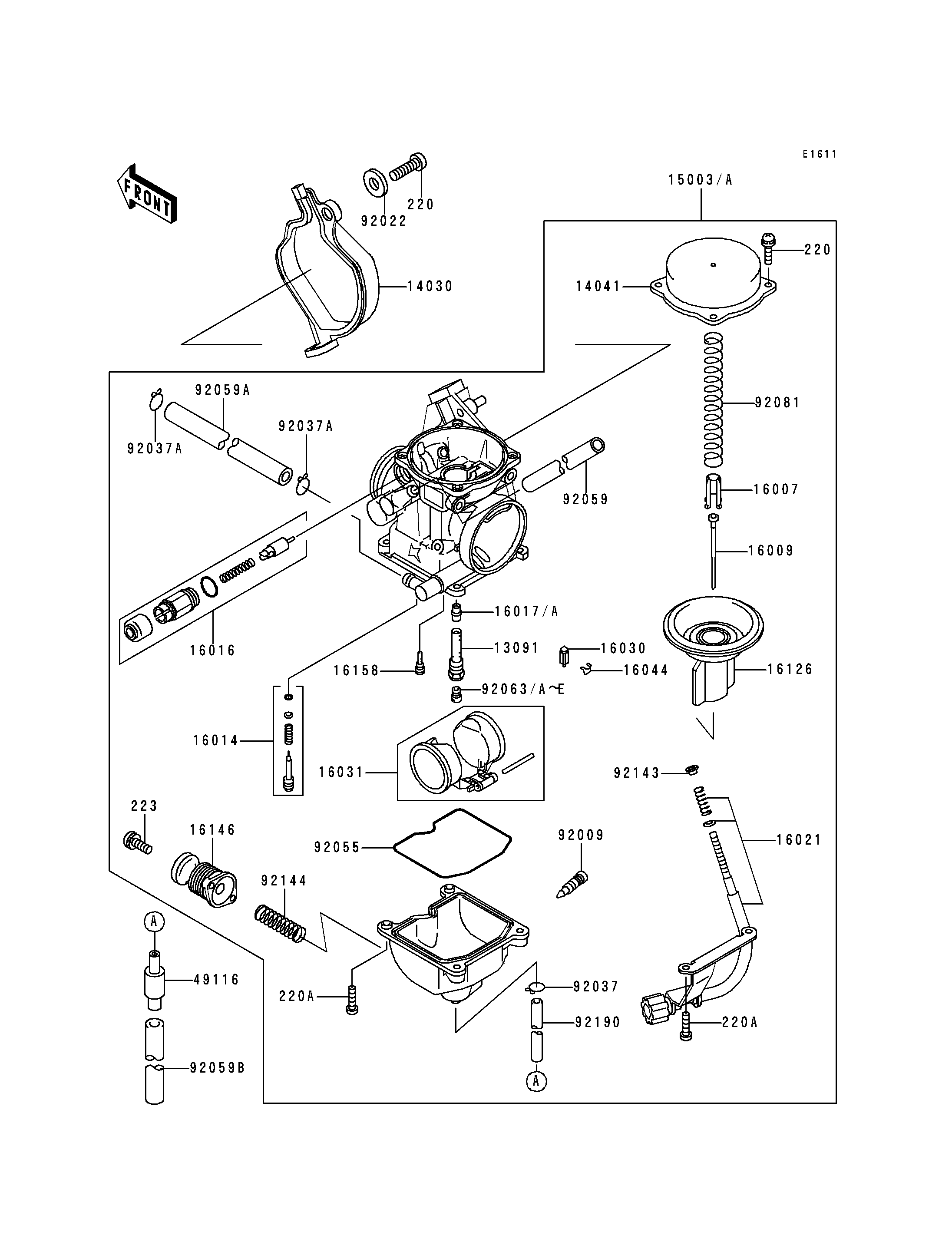

1996 Bayou 400 4X4 - Carburetor(-LF400AE532917)

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
14030
14030
14041
14041
15003A
15003A
16007
16007
16009
16009
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
16146
16146
16158
16158
49116
49116
92009
92009
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92059
92059
92059A
92059A
92059B
92059B
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
220
220
220
220
220A
220A
220A
220A
223
223
92081
92081
92143
92143
92144
92144
92190
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
COVER-CARBURETOR 14030 14030-1054 1
TOP-CHAMBER,MIXING,INSIDE 14041 14041-1077 1
CARBURETOR-ASSY 15003A 15003-1375 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 1
NEEDLE-JET,N2LF 16009 16009-1870 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-1101 1
JET-NEEDLE,#6 16017 16017-1270 1
SCREW-THROTTLE STOP 16021 16021-1196 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1199 1
COVER-ASSY,PUMP 16146 16146-1129 1
JET-SLOW,#42 16158 16158-1053 1
VALVE-ASSY 49116 49116-1126 1
SCREW,DRAIN,M6X0.75 92009 92009-1551 1
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP,TUBE 92037 92037-1201 1
CLAMP,TUBE 92037A 92037-1531 2
RING-O,FLOAT CHAMBER 92055 92055-1518 1
TUBE,6.5X11.5X150 92059 92059-1463 1
TUBE,6.5X9.5X430 92059A 92059-1727 1
TUBE,7X10X100 92059B 92059-1736 1
JET-MAIN,#85 92063 92063-1023 1
JET-MAIN,#125 92063A 92063-1069 1 (OPTION)
JET-MAIN,#118 92063B 92063-1071 1 (OPTION)
JET-MAIN,#120 92063C 92063-1072 1
JET-MAIN,#122 92063D 92063-1073 1 (OPTION)
JET-MAIN,#115 92063E 92063-1118 1 (OPTION)
SCREW-PAN-CROS 220 220B0408 5
SCREW-PAN-CROS 220A 220D0414 4
SCREW-PAN-WS-CROS 223 223C0412 2
SPRING,VACUUM VALVE 92081 92081-1775 1
COLLAR 92143 92143-1589 1
SPRING,PUMP 92144 92144-1672 1
TUBE,4.5X8X330 92190 92190-1557 1
