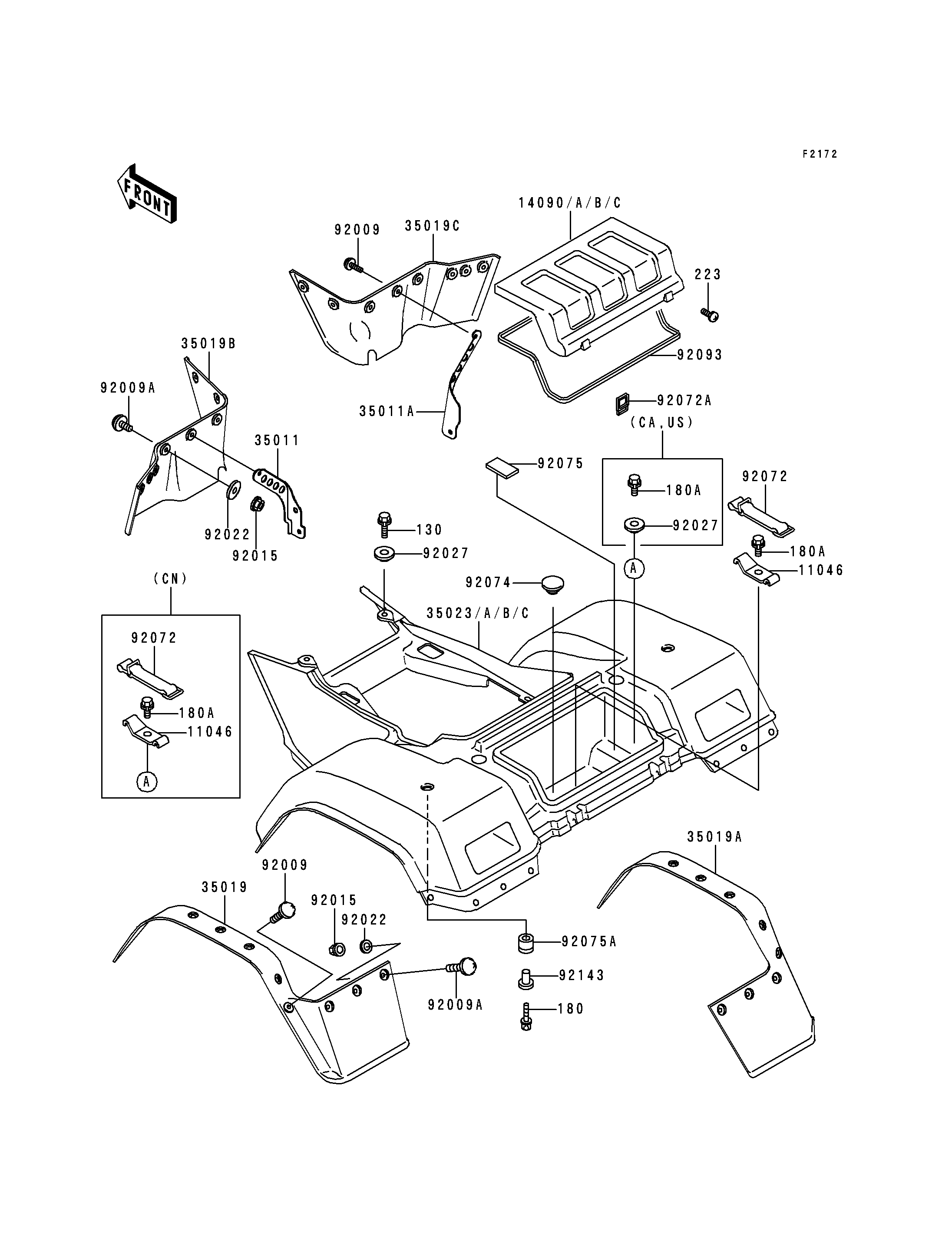

1996 Bayou 400 4X4 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
180
180A
180A
180A
223
14090
14090B
35011
35011A
35019
35019A
35019B
35019C
35023
35023B
92009
92009
92009A
92009A
92015
92015
92022
92022
92072A
92074
92075A
92093
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130C0618 2
BOLT-UPSET-WS,6X35 180 180C0635 2
BOLT-UPSET-WS 180A 180D0614 2
SCREW-PAN-WS-CROS,4X6 223 223C0406 2
COVER,REAR FENDER,F.GREEN 14090 14090-1160-59 1
COVER,REAR FENDER,BLACK 14090B 14090-1160-6D 1
STAY,RR FENDER,LH 35011 35011-1618 1
STAY,RR FENDER,RH 35011A 35011-1619 1
FLAP,RR,LH,BLACK 35019 35019-1298-6Z 1
FLAP,RR,RH,BLACK 35019A 35019-1299-6Z 1
FLAP,RR,LWR,LH,F.BLACK 35019B 35019-1325-6Z 1
FLAP,RR,LWR,RH,F.BLACK 35019C 35019-1326-6Z 1
FENDER-REAR,F.GREEN 35023 35023-1332-59 1
FENDER-REAR,BLACK 35023B 35023-1332-6D 1
SCREW,6X22,BLACK 92009 92009-1256 4
SCREW,6X16 92009A 92009-1621 34
NUT,LOCK,FLANGED,6MM 92015 92015-1675 40
WASHER,6.5X16X1.0 92022 92022-1093 38
BAND,REAR FENDER COVER 92072A 92072-1291 2
PLUG,11X3.2 92074 92074-038 1
DAMPER 92075A 92075-1936 2
SEAL,REAR FENDER COVER 92093 92093-1262 1
COLLAR,L=19.6 92143 92143-1100 2
BRACKET,BAND 11046 11046-1319 1
BRACKET,BAND 11046 11046-1319 2
COLLAR,L=4.7 92027 92027-122 2
COLLAR,L=4.7 92027 92027-122 3
BAND 92072 92072-1085 1
BAND 92072 92072-1085 2
DAMPER 92075 92075-1830 1
